1pcs Ccm2 10v 12v 24v 30v Dc Motor Speed Control Pwm Controller Reversing Switch

US $8.99

guangzhou, guangdong, China
Jan 29th

Open on mobile:
QR code

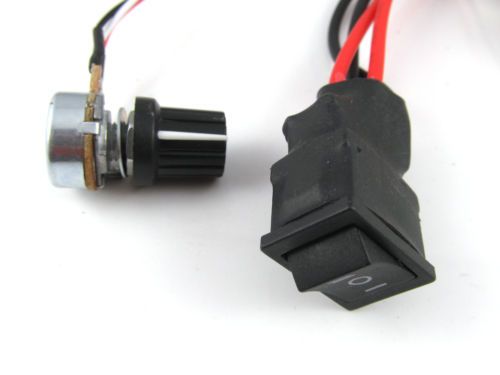

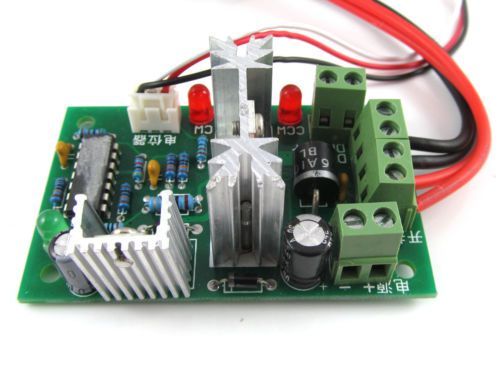

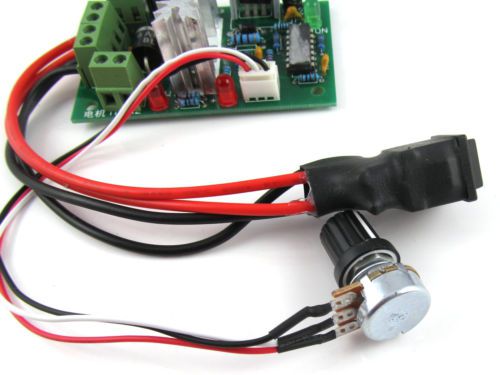

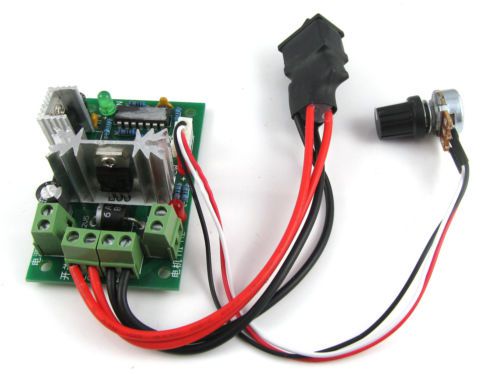

CCM2 In applications often need to adjust the speed of the DC motor, the governor using the PWM control technology, with a high conversion efficiency, wide speed range, stable performance characteristics. All use of imported governor STMicroelectronics original chip, factory and voltage, current, function and many other detection circuit is stable and reliable. The main technical parameters: 1, the input voltage requirements: 10V-30VDC (wide range) 2, the maximum output power: 120W (greater than 24V case) 3, Rated current 3A, the maximum current through 4A, shorted for no more than 30s 4, PWM pulse width speed range: 5% -95% 5, potentiometer for speed control 6, reversing switch is used to control forward, reverse, stop switch Size: 74 * 47 * 28mm, four positioning pitch plate edge 5mm, the positioning hole diameter 3.6mm. How to use: One, even the power cord, ensure reversing switch located in the middle of the zero position, connect the DC power supply, make sure the DC supply voltage range greater than 10V, less than 30V, make sure the power output to meet the electrical work required. Do not reverse the positive and negative terminals of the DC power supply, otherwise the governor may be damaged; 2, Connect the motor, the motor line can be positive or negative, regardless of when the run defense is inconsistent with the expected direction, you can adjust the line sequence or switch position to change direction; 3, the adjustment switch, reversing switch is used to control the motor speed direction, when the switch is in the zero position, the motor stops; 4, potentiometer knob, adjust the potentiometer knob can change the governor output duty cycle, the motor speed change. Using 0-10V external voltage control wiring instructions The governor supports the use of an external DC voltage control speed, use the following steps: 1 Remove the potentiometer. (You may need to decide on one side or from the circuit board potentiometer side removed) 2, connecting a 0-10V DC control signal to the intermediate pin potentiometer 3, the connection control signal 0-10V DC ground to the potential on the right side pin QTY:1PCS Dear friends, Hello! The company has strong strength, reasonable prices, excellent service and a number of enterprises established long-term cooperative relationship. Always adhere to the "customer first, reputation first, quality first" business philosophy! Full of challenges and opportunities in the new century, the company sincerely thank all my colleagues old and new customers, as always, support, we work together to create brilliant, creating a more favorable product and service. We believe that: we do is business, but also friends, but talk with! Sincerely look forward to your order, but also look forward to cooperating with you! Give me a trust but you are satisfied, shanxuan06 cooperating with you! Your satisfaction is our eternal pursuit! If you do not know whether your machine can use this adapter, you can view your original adapter's output parameters (voltage, current) are consistent, if the original adapter is lost, you can view the parameters or bottom of the computer instructions for your machine. As cross-border transport, long distances. If used, found to have quality problems, please contact us. We will give you a satisfactory answer. Thanks for your cooperation! Shipping : 1.Item will be shipped within 48 hours after received a verified payment. 2.We ship to worldwide. 3.Please make payments and provide us with a Verified shipping address as soon as possible in order to get the fast service. 4. Items shipped from Hong Kong or Singapore Air Mail Postage Rates by Hong Kong or Singapore Post Office, Delivery time please read following table? USA Usually 8-20 business days(have a tracking number) If you cannot get it in 35-40days,please contact with us!we willreply to you within 1-3 business days. Canada Usually 12-40 business days Australia Usually 10-30 business days Italy Usually 21-49 business days Europe(except Italy) Usually 10-40 business days Israel Usually 12-40business days Brazil Usually 21-40 business days other areas Usually 12-45 business days 5. You will be notified once the shipment has been made. 6. A business day is a normal weekday. Saturdays, Sundays, and China Public holidays are not business days. Payment Information: 1.We only accept payment by PayPal 2.We only post the item to your eBay shipping address, Please make sure your shipping address is correct and updated before you pay. Return Policy: If there is defective product we will exchange for buyer. All defective items must beinformed within 7 days of your receipt. If you have any questions please contact us via eBay messages only and we will gladly help. Due to time difference, messages will be replyed within 24-48 hours. Please send us message about Feedback : 1)Please leave POSITIVE FEEDBACK with all 5-star Detailed Seller Ratings for us if you are satisfied with our products and service, and we will do the same for you 2)If you are not satisfied with the item, please contact me at the first time,we will reply to you within 1-2 business days, and I will do my best to solve the problem to make you satisfied,in the meantime ,we will get to know where we should improve. Thanks for your understanding. Country Working Days (not including holiday) 15-20 21-32 33-45 Country Working Days + Saturday + Sunday 21-25 26-45 46-55 Asia country Rate (item arrived ) 90% 10% 0% Ireland Rate (item arrived ) 40% 60% 0% United Kingdom Rate (item arrived ) 35% 60% 5% Greece Rate (item arrived ) 40% 60% 0% Canada Rate (item arrived ) 15% 80% 5% France Rate (item arrived ) 15% 80% 5% Germany Rate (item arrived ) 20% 70% 10% Russian Rate (item arrived) 10% 50% 40% Spain Rate (item arrived) 5% 50% 45% Argentina Rate (item arrived) 5% 40% 55% Brazil Rate (item arrived) 5% 35% 60%
