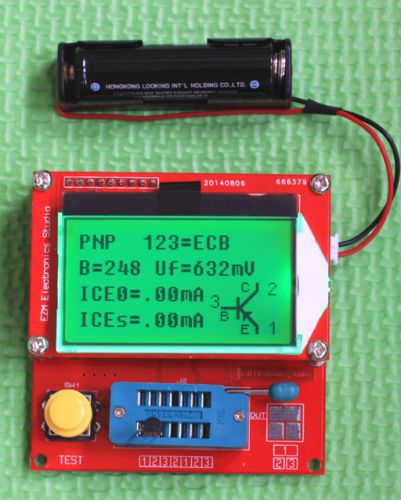

2015 V1.12 Version Gm328 Transistor \ Rlc\ Esr Tester Meter Capacitance Npn Pnp

US $23.99

HONG KONG, Hong Kong
Jun 9th

Open on mobile:
QR code

For capacitors with a capacity value above 0.18ВµF, the Equivalent Serial Resistance (ESR) is measured with a resolution of 0.01?, and it is shown with two significant decimal digits. For capacitors with a capacity value above 5000pF, the voltage loss after a load pulse can be determined, giving a hint for the quality factor of the capacitor. The Tester can also detect up to two diodes and show them with symbol or symbol in the correct order. Additionally, the flux voltages are shown, and LED is detected as a diode. The GM328 transistor, RLC, and ESR Tester meter is now available in the 2015 V1.12 version. This device operates using ATmega328 microcontrollers and displays results on a 128x64 graphic LCD-Display. With one key operation and automatic power shutdown, this Tester has a shutdown current of only about 20nA. It also automatically detects NPN and PNP bipolar transistors, N- and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors, and Triacs. The device automatically detects the pin layout of the detected part and measures the current amplification factor and Base-Emitter threshold voltage of bipolar transistors. Darlington transistors can also be identified by the threshold voltage and high current amplification factor. The Tester also detects the protection diode of bipolar transistors and MOSFETs. Zener-Diodes can be detected, and if reverse break down Voltage is below 4.5V, they are shown as two diodes. You can identify the real anode It measures the Gate threshold voltage and Gate capacity value of MOSFETs and can detect up to two resistors and show their symbols and values with up to four decimal digits in the right dimension. Potentiometers can also be measured, and if the Potentiometer is adjusted to one of its ends, the Tester cannot differ the middle pin and the end pin. The resolution of resistor measurement is now up to 0.01?, and values up to 50M? are detected. One capacitor can be detected and measured. It is shown with symbol and value with up to four decimal digits in the right dimension, and the value can be from 25pF to 100mF. The resolution can be up to 1pF.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	dykb
MPN	dykb
