25 Pcs/lot Ic Mfrc500, Highly Integrated Iso/iec 14443 A Reader Ic

US $99.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

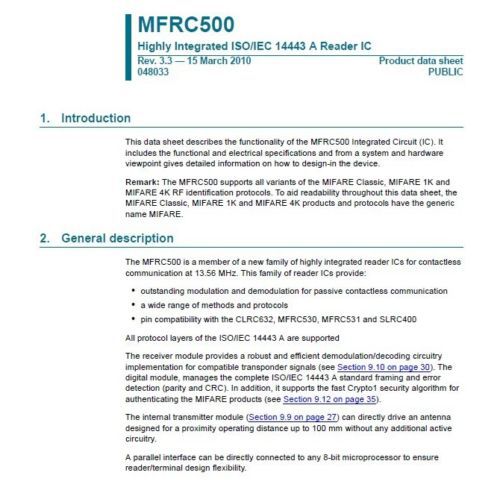

25 pcs/lot IC MFRC500 1. Introduction This data sheet describes the functionality of the MFRC500 Integrated Circuit (IC). It includes the functional and electrical specifications and from a system and hardware viewpoint gives detailed information on how to design-in the device. Remark: The MFRC500 supports all variants of the MIFARE Classic, MIFARE 1K and MIFARE 4K RF identification protocols. To aid readability throughout this data sheet, the MIFARE Classic, MIFARE 1K and MIFARE 4K products and protocols have the generic name MIFARE. 2. General description The MFRC500 is a member of a new family of highly integrated reader ICs for contactless communication at 13.56 MHz. This family of reader ICs provide: aЂ? outstanding modulation and demodulation for passive contactless communication aЂ? a wide range of methods and protocols aЂ? pin compatibility with the CLRC632, MFRC530, MFRC531 and SLRC400 All protocol layers of the ISO/IEC 14443 A are supported The receiver module provides a robust and efficient demodulation/decoding circuitry implementation for compatible transponder signals (see Section 9.10 on page 30). The digital module, manages the complete ISO/IEC 14443 A standard framing and error detection (parity and CRC). In addition, it supports the fast Crypto1 security algorithm for authenticating the MIFARE products (see Section 9.12 on page 35). The internal transmitter module (Section 9.9 on page 27) can directly drive an antenna designed for a proximity operating distance up to 100 mm without any additional active circuitry. A parallel interface can be directly connected to any 8-bit microprocessor to ensure reader/terminal design flexibility. 3. Features and benefits 3.1 General oЂ‚„ Highly integrated analog circuitry for demodulating and decoding card response oЂ‚„ Buffered output drivers enable antenna connection using the minimum of external components oЂ‚„ Proximity operating distance up to 100 mm oЂ‚„ Supports the ISO/IEC 14443 A standard, parts 1 to 4 oЂ‚„ Supports MIFARE Classic protocol oЂ‚„ Crypto1 and secure non-volatile internal key memory oЂ‚„ Pin-compatible with the CLRC632, MFRC530, MFRC531 and the SLRC400 oЂ‚„ Parallel microprocessor interface with internal address latch and IRQ line oЂ‚„ Flexible interrupt handling oЂ‚„ Automatic detection of parallel microprocessor interface type oЂ‚„ 64-byte send and receive FIFO buffer oЂ‚„ Hard reset with low power function oЂ‚„ Software triggered Power-down mode oЂ‚„ Programmable timer oЂ‚„ Unique serial number oЂ‚„ User programmable start-up configuration oЂ‚„ Bit-oriented and byte oriented framing oЂ‚„ Independent power supply pins for analog, digital and transmitter modules oЂ‚„ Internal oscillator buffer optimized for low phase jitter enables 13.56 MHz quartz connection oЂ‚„ Clock frequency filtering oЂ‚„ 3.3 V operation for transmitter in short range and proximity applications 4. Applications oЂ‚„ Electronic payment systems oЂ‚„ Identification systems oЂ‚„ Access control systems oЂ‚„ Subscriber services oЂ‚„ Banking systems oЂ‚„ Digital content systems

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	NXP
MPN	MFRC500
Model	GoJGo.com-10159
IC Package	SOIC32_75MM
