10 Pcs Fm31256-gtr, Integrated Processor Companion With Memory

US $35.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

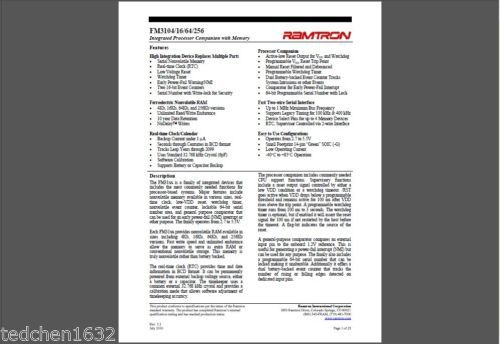

Features High Integration Device Replaces Multiple Parts • Serial Nonvolatile Memory • Real-time Clock (RTC) • Low Voltage Reset • Watchdog Timer • Early Power-Fail Warning/NMI • Two 16-bit Event Counters • Serial Number with Write-lock for Security Ferroelectric Nonvolatile RAM • 4Kb, 16Kb, 64Kb, and 256Kb versions • Unlimited Read/Write Endurance • 10 year Data Retention • NoDelay™ Writes Real-time Clock/Calendar • Backup Current under 1 ?A • Seconds through Centuries in BCD format • Tracks Leap Years through 2099 • Uses Standard 32.768 kHz Crystal (6pF) • Software Calibration • Supports Battery or Capacitor Backup Processor Companion • Active-low Reset Output for VDD and Watchdog • Programmable VDD Reset Trip Point • Manual Reset Filtered and Debounced • Programmable Watchdog Timer • Dual Battery-backed Event Counter Tracks System Intrusions or other Events • Comparator for Early Power-Fail Interrupt • 64-bit Programmable Serial Number with Lock Fast Two-wire Serial Interface • Up to 1 MHz Maximum Bus Frequency • Supports Legacy Timing for 100 kHz & 400 kHz • Device Select Pins for up to 4 Memory Devices • RTC, Supervisor Controlled via 2-wire Interface Easy to Use Configurations • Operates from 2.7 to 5.5V • Small Footprint 14-pin “Green” SOIC (-G) • Low Operating Current • -40°C to +85°C Operation Description The FM31xx is a family of integrated devices that includes the most commonly needed functions for processor-based systems. Major features include nonvolatile memory available in various sizes, realtime clock, low-VDD reset, watchdog timer, nonvolatile event counter, lockable 64-bit serial number area, and general purpose comparator that can be used for an early power-fail (NMI) interrupt or other purpose. The family operates from 2.7 to 5.5V. Each FM31xx provides nonvolatile RAM available in sizes including 4Kb, 16Kb, 64Kb, and 256Kb versions. Fast write speed and unlimited endurance allow the memory to serve as extra RAM or conventional nonvolatile storage. This memory is truly nonvolatile rather than battery backed. The real-time clock (RTC) provides time and date information in BCD format. It can be permanently powered from external backup voltage source, either a battery or a capacitor. The timekeeper uses a common external 32.768 kHz crystal and provides a calibration mode that allows software adjustment of timekeeping accuracy. The processor companion includes commonly needed CPU support functions. Supervisory functions include a reset output signal controlled by either a low VDD condition or a watchdog timeout. /RST goes active when VDD drops below a programmable threshold and remains active for 100 ms after VDD rises above the trip point. A programmable watchdog timer runs from 100 ms to 3 seconds. The watchdog timer is optional, but if enabled it will assert the reset signal for 100 ms if not restarted by the host before the timeout. A flag-bit indicates the source of the reset. A general-purpose comparator compares an external input pin to the onboard 1.2V reference. This is useful for generating a power-fail interrupt (NMI) but can be used for any purpose. The family also includes a programmable 64-bit serial number that can be locked making it unalterable. Additionally it offers a dual battery-backed event counter that tracks the number of rising or falling edges detected on dedicated input pins.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	RAMTRON
IC Package	SO-14
Model	GoJGo.com-10624
Category	POWER MANAGEMENT
MPN	FM31256-GTR
