4.5-30v To 5v 9v 12v 24v Dc Converter Constant Current Solar Battery Charger Pwm

US $5.79

Hong kong , Hong Kong
Jun 9th

Open on mobile:
QR code

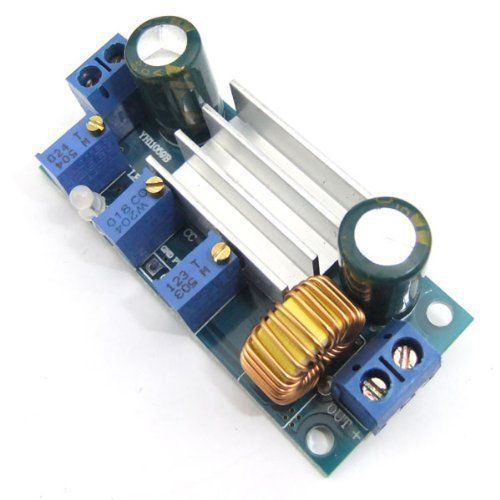

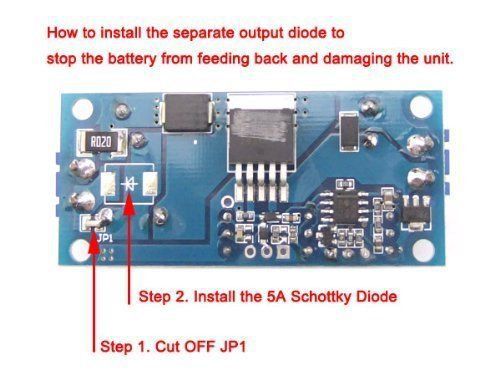

5A DC Buck Converter CC/CV 12v 5v 24V car Solar Battery Charger LED Drive w/ PWM Description: Features: Item name: 5A Constant voltage current module Module properties : non-isolated step down module (BUCK) Input voltage :4.5-30V Output voltage: 0.8-30V(continuously adjustable) Output constant current range: 0.1-5A (Default output :3A) Output turn lamp current range :0.1-5A (Default turn lamp current :0.3A). There will be a little bit error in the current range because of part parameter differences. Working temperature: -40~ +85 degree Working frenquency: 300KHz PWM control frequency range: 100-300Hz Transfer efficiency: Maximum 95% (Efficiency is related to the input,output votage,current and voltage differences.) Short-circuit protection: Yes ( The current limitation is the fixed constant current value.) Overtemperature protection: Yes ( The output will be automatically cut off once over tempreture occurs.) Input reverse connection protection : No Output flow-backwards protection: No ( A space is reserved for the current flowing backward.You can operate it by youself according to the instruction below) Charging indication: The light is red when charging and green when the electricty is full of . Installation: 4 pieces of 3mm screws Connection : Terminal . V-IN is input, V-OUT is output. Size: 60(L)*26(W)*20(H) mm Inspection for current is the low-end detaction. please do not connect in/output nagetive directly with wire. Application: DIY a stabilized voltage with consistant current,load pretection ,short circuit protection when using. Power supply for your electronic equicments. Charge for the battery. You can set a different voltage and volume for all the battery when charing,and observe the charing condition. Solar panels regulator. A solar panel power supply has a perfect protection fuction for the battery . High power LED drive. It can be charding for your mobile and digitals as a automotive electronic power supply Direction for setting voltage,current and turn lamp:( Please check the picture above ) Set output voltage : according to the value of battery floating voltage or serial/parellel LED voltage, adjust CV potentiometer, set the output voltage to your need. (No load connection) Set turn lamp current indication : After setting the output voltage, counterclockwise adjust CC potentiometer about 20 laps, use multimeter 20A grade short-circuit output, adjust CC potentiometer to you need turn lamp current, and then adjust turn lamp potentiometer(LED) to just green light. Set constant current value: after setting the turn lamp current, use multimeter 20A grade still short-circuit output, adjust CC potentiometer to your need current value. Attention: It is invalid that the voltage must be higher than 0.8V when setting current. Package Contents 100% Brand New 1 x 5A DC Buck Converter CC/CV 12v 5v 24V car Solar Battery Charger LED Drive w/ PWM We can also wholesale if you need a large quantity of item please contact us :) Shipping : We only accept your Paypal Address,Please Make sure it's 100% right. The items you ordered will be shipped out in 1 business day by Air Mail when your payment is clear. Delivery time depends on destination,logistics mode and other factors. If you have not received your shipment within 35 days from payment, please feel free to contact us. We will track the shipment and get back to you as soon as possible with a reply. Customer`s satisfaction is our goal. Country Delivery Time Working Days (not including holiday) 5-7 8-10 11-14 15-19 20-22 >25 Working Days + Saturday + Sunday 5-9 10-14 15-20 21-25 26-30 >35 United States Rate (item arrived) 9% 50% 21% 13% 7% Refund or Resend United Kingdom Rate (item arrived) 10% 62% 20% 3.5% 4.5% Refund or Resend Australia Rate (item arrived) 23% 50% 13% 8% 6% Refund or Resend France Rate (item arrived) 1.5% 20.5% 45% 23% 10% Refund or Resend Germany Rate (item arrived) 5.5% 25% 35% 19% 15.5% Refund or Resend Canada Rate (item arrived) 0.0% 44% 35% 18% 3% Refund or Resend Spain Rate (item arrived) 1.5% 25% 50% 14% 9.5% Refund or Resend Payment : We accept PayPal only. We only ship to confirmed PAYPAL addresses.Please makesure payment address in PayPal is correct. All major credit cards are accepted through our secure payment processor PayPal. Payment must be received within 7 business days of auction closing. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help.We will try our best to solve any problem. If you have any questions, please feel free to contact us by ebay message. We will reply you within 48 Hours. Refund&Reship: 60 days money back return policy. If you are not satisfied when you?receive your item, please return it within 60 days for a replacement or money back. Please contact us for return address before you send it back. If item defective, 1. in 3 months : we will send you a replacement without extra charge, or offer refund upon faulty received. 2.after 3 months you are still welcomed to send it back to us for exchange. Buyer may responsible for all return shipping costs. In case you receive wrong products due to shipping error, please contact us for exchange or refund. If it's damaged , please refuse to accept and contact us as soon as possible. Communication : Please email us before leaving any negative feedback or open any dispute on PayPal. We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately. We try our best to reply to your emails as soon as possible. If you do not receive any reply from us, please check your email ensuring your mailbox has not reached full size. You can contact us by Ebay messages are strongly recommended. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	new
MPN	new
