445nm 1w To 1.5 W 5.6mm Blue Laser Diode Extracted From Casio Xj Projector

US $28.00

Dublin, California, United States
Jan 30th

Open on mobile:
QR code

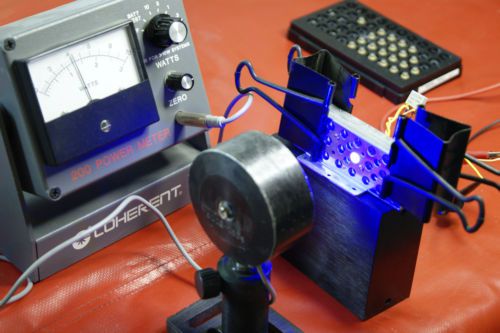

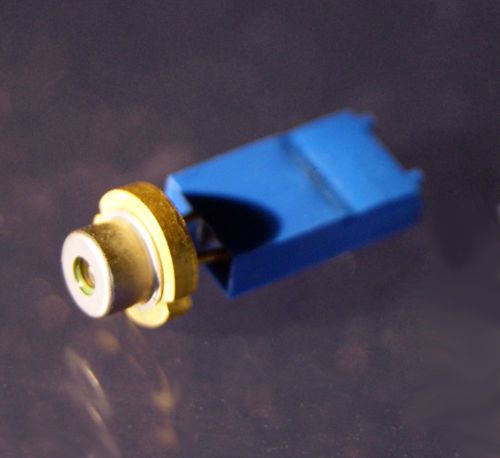

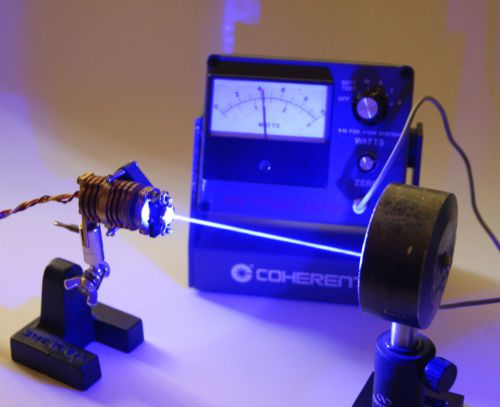

High power 1W to 1.5W 445nm laser diode pull from Casio XJ Series projector with near 800 hrs on it. Which is nothing really as these diodes have a 20,000 hr. lifetime. The laser in picture is doing 1.25 watts. (this laser is not for sale and is to illustrate what you can build with a little imagination and spare parts). There is a little smoke in pic to show off beam as it was shot in daytime. Each of these diodes has been tested for a few seconds in my rather crude but effective diode test jig (seen in pic) made from a modified diode array assembly from a projector. My jig clamps both sides of the diode flange for maximum heat dissipation and I am using a Lasorb anti ESD/surge device to assure your diode has been tested safely. I take them up to about 1 watt in testing. I make sure they all perform well at a set current. These were removed by me carefully with anti-static mat, wrist strap and esd safe desoldering iron. These are ready to be installed. The terminals have been cleaned of excess solder so you can plug it right into a socket, or solder the leads with the bit of tinning solder that remains. If there was any thermal compound on the output window, it has been cleaned with methanol. Many laser companies require methanol only for output window cleaning. I do NOT recommend installing this is one of those "press in" style mounts. even if it is copper. Get one that has a screw down mount that provides heat transfer to both sides of the diode flange. These run real hot. Those press in mounts work, but you may lose half the life of your diode from inadequate heat sinking. I have had many people ask me about this style mount. I have added a picture of typical ones found on eBay. Just do a search on laser diode mounts. Get one that that is threaded for an M9 0.5 lens that you can buy separately on ebay. There are several available. Some are singlet lenses, some are triple element. Make sure it is AR coated for blue wavelengths. This auction is for one 1-1.5Watt laser diode w/shorting block for esd protection and the only. No lens as the ones from the projector are just not very good for collimating. They will be shipped in an anti-static bag and foam cushioning. NO RETURNS These have been professionally tested and packed. I have no control over how the end user will handle/drive the diode. By bidding you are certifying that you are a minimum of 18 years old. You are responsible for the proper legal and safe use and handling of this device. I recommend you use a driver circuit that has esd protection such as a "lasorb" device and soft start. They require around 4.5-5VDC @ 1.25A for around 1 Watt output. 1.7A MAX for around 1.5 Watts with lens installed. There is much information on these on the various laser forums. You will find all you need to know there. The only other thing you need is common sense. Thanks for looking

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Each tested to perform as new”
