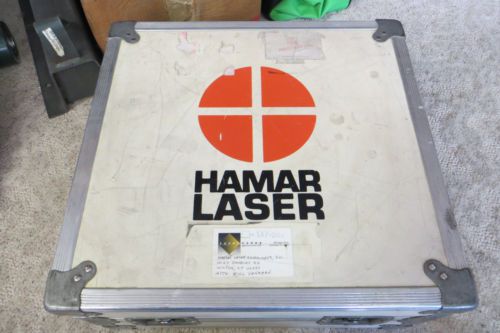

Complete Spindle Alignment Laser System Hamar Laser L-700 With Case

US $2,000.00

Orem, Utah, United States
Jan 30th

Open on mobile:
QR code

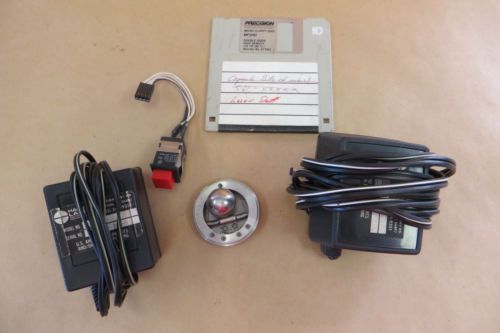

Complete Hamar Laser L-700 Spindle Alignment Laser System. Generally used to align spindle axis on machines needing precise alignment of the spindle to a reference or opposing axis. New, these systems are $17,000! Included in the carrying case are the following components: L-700 Laser; the L-700 is a Class II solid-state diode laser with a visible beam that is user-adjustable to be concentric to the center of its mounting stud or the rotation axis of the spindle in which the unit is mounted. The operating range is up to 30'. A-801 T-261 4-Axis Spindle Target; the T-261A 4-Axis Spindle Target has the most angular sensitivity of any Hamar Laser target. It reads both center and angle (pitch and yaw) simultaneously, allowing a real-timedisplay of alignment. It has a resolution of .00002" in center and.00002"/ft. in angle R-355C Computer Interface AC Adapters (2) Disc (possibly containing software) 2 manuals Benefits: 0.5 Micron Resolution Improves Part Quality. The L-700 Spindle Alignment system has a centering resolution of 0.5 microns (.00002") and angular resolution of .00002"/ft. Combined with software to correct mounting errors, the system produces a very accurate alignment; less than .0001" under good environmental conditions. This extremely high level of accuracy can dramatically improve machine performance and reduce scrap rates. Live Data Speeds Alignment, Reduces Downtime. The L-700 significantly speeds machine alignment by simultaneously checking the vertical and horizontal center and angle readings, and providing live alignment data, so without changing the setup, alignment errors can be quickly and easily fixed. The software also speeds up the alignment by providing shim values and moves for spindle box alignments, using large, color graphics. Single or Dual Spindle Alignment Capability. With the addition of an extra laser, computer interface and 4-axis target, the L-700 Spindle Alignment System can also handle complex multiple spindle applications. Patented 4-Axis Target. The L-700 Spindle Alignment System’s 4-axis target measures both the horizontal and vertical center and angular reading simultaneously. This creates a powerful tool for aligning a spindle to a master part, or tailstock or sub-spindle to the headstock on a lathe. Please feel free to call Gary with any questions at 801-358-3716 or for more information. We have many other wrenches and tools available so please call Gary and / or check out our other auctions by

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“System working when taken out of service, no testing done since; as-is.”
