4ch 70mhz 1gsa/s Oscilloscope 8ch Logic Analyzer 25mhz Waveform Signal Generator

US $518.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

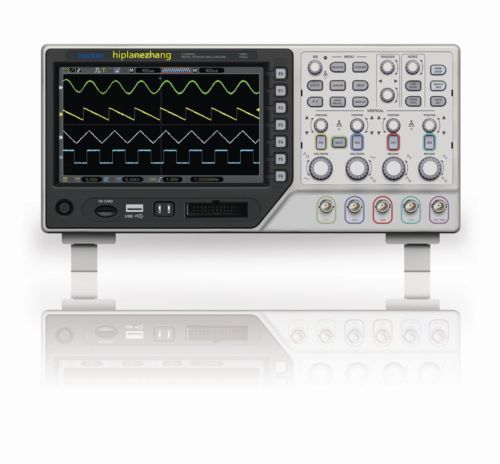

MSO5074FG Feature 4 Channel Oscilloscope+8 Channel Logic Analyzer + 25MHz Arb. Waveform Generator(Only MSO5074FG). Abundant Trigger type: Video, Edge, Slope, Pluse Width, Overtime, Alternative, Code-type, Duration, Queue, Repeat trigger. Large 7 inch 64K color Display, WVGA: 800*480. USB host and device connectivity, standard. Ultrathin desigh, handy volume, easily portable. VGA Optional Oscilloscope 1Gsa/s Real Sample Rate; 4 Channels Oscilloscope; 70MHz Bandwidth, 1M Record Length; 32 automotive measurement and FFT Analysis for Simplified Waveform Abalysis. Logic Analyzer 8 Channles Logic Analyzer; 500MHz Sample Rate 1MRecord Length Arb. Waveform Generator(Only MSO5074G) 25MHz Arb. Waveform Generator Output(Sine wave up to 75MHz) 200MSa/s Sample Rate; 12bit Pattern Generator 50MHz Frenquery Counter Model MSO5074F MSO5074FG Channel 4 Bandwidth 70MHz Rise Time 5ns Real time sample rate 1GSa/s Record Length 1M SEC/DIV Range 4ns/div~40s/div Delay time Accuracy 500ps A/D Converter 8bit resolution Volts/div range 2mV/div~ 5V/div at input BNC Position Range 20ns/div to 80us/div; (-8div x s/div) to 40ms; 200us/div to 40s/div; (-8div x s/div) to 400s; DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div Input Inputs Coupling AC, DC, GND Inpits Impendance 1M?±2% ?20pF±3pF Probe Attenuation 1X, 10X Trigger System Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative Trigger Source CH1, CH2, EXT, EXT/5, AC Line Trigger Modes Auto, Normal, Single Coupling Type DC, AC, Noise Reject, HF Reject, LF Reject Trigger Sensitivity (Edge Trigger Type) DC(CH1,CH2, CH3, CH4): 1div from DC to 10MHz;1.5div from 10MHz to Full; DC(EXT): 200mV from DC to Full; DC(EXT/5):1V from DC to Full; AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz Trigger Level Range CH1, CH2, CH3, CH4: ±8 divisions from center of screen; EXT: ±1.2V; EXT/5:±6V Trigger Level Accuracy( typical) signals having rise and fall times >=20ns CH1, CH2, CH3, CH4: 0.2div x volts/div within ±4 divisions from center of screen; EXT: ± (6% of setting + 40mV); EXT/5: ± (6% of setting + 200mV); Set Level to 50%(typical) Operates with input signals >=50Hz Measurement Cursor Measurement Manual: Voltage difference between cursors: ?V Time difference between cursors: ?T Reciprocal of ?T in Hertz (1/?T); Tracing: The valtage and time at a waveform point; Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF Math +, -, *, /, FFT Logic Analyzer Specifications Channels 8 Channels Max. Input Impendence 200K(C=10p) Input Voltage Range 0V~3V Logic Threshold Range 0V~3V Max. Sample Rate 500MSa/s Compatible Input TTL, CMOS, ECL Sample Depth 1M Edge Trigger D0-D7 select slope (rising or falling edge) Pulse Width Trigger D0-D7 select pulse polarity (positive or negative pulse), trigger when (=, ?, >, <), trigger pulse width Code-type Trigger D0-D15 select code-type (H, L, X) Duration Trigger D0-D7 select persist time and trigger when (data terminate, data start, and data delay) Queue Trigger D0-D7 select specific data index (0-3) and code-type (H, L, X) Repeat Trigger D0-D7 select code-type (H, L, X) and repeat times Arb. Waveform Generator Specifications (MSO5074FG) Wave frequency DC~25MHz DAC clock 2K~200MHz adjustable Waveform Length 4KSa Vertical Resolution 12 bit Frequency stabilization <30ppm Amplitude ±3.5V Max. Output impedance 50 ? Output current 50mA Ipeak=50mA System Bandwidth 25M Wave distortion -50dBc(1KHz), -40dBc(10KHz) Frequency area DC~50MHz Input Amplitude 400mVpp~18Vpp Coupling DC Frequency precision ±Time Base Error ±1 Count input impedance > 100K? Pattern Generator 12Bit General Feature Supply Voltage 100-120VACRMS(±10%), 45Hz to 440Hz, CATII 120-240VACRMS(±10%), 45Hz to 66Hz, CATII Power Consumption <30W Display Type 7 inch 64K color TFT LCD,(WBGA 800*480) Size & Weight 385*200 * 245(mm), 3.5kg Note: we'll ship this item via express mail service to USA, Canada, Australia, New Zealand, Ireland, Austria, Belgium, Denmark, Germany, France, Finland, Luxemburg, Malta, Norway, Sweden, Swiss, Spain, Italy, UK, Japan, Korea,Thailand, Malaysia, Indonesia, Philippine and Singapore. Clients from other countries please contact with us in advance to confirm the different shipping charges before you order.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	MSO5074FG
Channels	4
MPN	MSO5074FG
Sample Rate	1GSa/s
Type	Digital
Country/Region of Manufacture	China
Bandwidth	70MHz
