54645d 100mhz Mixed Signal Oscilloscope W/2 Probes & 54657a Hp-ib Interface

US $359.00

  • Albuquerque, New Mexico, United States
  • Mar 9th
Open on mobile:
QR code

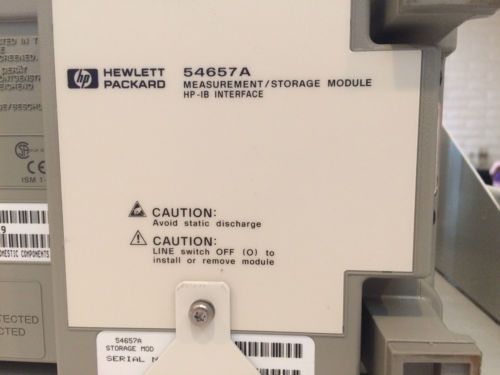

Item is used but in excellent condition.  Both channels have been tested against the internal reference with the provided probes. HP / Agilent 54645D 100MHz 200 MSa/s Mixed Signal Oscilloscope w/54657A HP-IB Interface Includes 2 100Mhz 10x probes With the introduction of the Agilent Technologies 54645D mixed-signal oscilloscope (MSO) to your lab, you will be able to easily view the complex relationships of your circuit's analog and digital operation. Seamless integration of scope and logic channels in the 54645D MSO allow you to view both the analog circuit operation on the two 100 MHz scope channels and the logic timing displayed on the 16 logic channels. Analog and digital events are aligned in time so that you can easily relate cause and effect in many difficult mixed-signal troubleshooting situations, such as those encountered in debugging 8- or 16-bit micro-controller systems. The 54645D gives you an oscilloscope-like operation of both the scope and logic channels. For example, simply turn the time-base knob to set the time/division for all scope and logic channels. Press Auto-scale for the display of all active analog (scope) and digital (logic) channels. There is no scope-logic mode switch, just a seamless integration of logic channels into a scope. Features:     •    Dual-channel 100-MHz scope with 200 MSa/s     •    1 MB of memory per scope channel     •    16 logic timing channels (cable not included)   •    400 MSa/s on 8 channels (2 MB memory/ch)?    •    200 MSa/s on 16 Channels (1 MB memory/ch)     •    Ideal for debugging 8- or 16-bit micro-controller systems     •    MegaZoom technology for easy-to-use responsive deed memory     •    Simple easy-to-use controls     •    Powerful triggering
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Model 54645D
Channels 2
Type Digital
Sample Rate 200MSa/s - 499MSa/s
Bandwidth 100MHz - 349MHz
Make Agilent/HP
