5a Three Channel Laser Diode Driver With Tec Driver, 445nm, 635nm, 808nm, Analog

US $265.00

Bialystok, Poland
Jan 30th

Open on mobile:
QR code

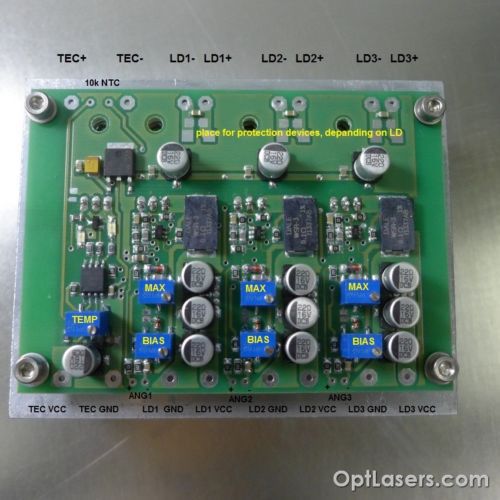

About us Contact us Other auctions Comments Opt Lasers is a European manufacturer of laser diode drivers and laser modules, as well as a laser accessories supplier. 5A three channel laser diode driver with TEC driver, 445nm, 635nm, 808nm, DPSS Product Details TEC maximum current 15A TEC supply voltage 3,3 - 16V Maximum diode current/channel 5A Laser diode supply voltage 5 - 16V Modulation voltage ANG 0 - 5V Maximum modulation frequency ANG 100kHz Softstart 2000ms Temperature sensor 10k NTC thermistor Temperature stabilization accuracy +-0,1*C Temperature protection YES > 50C TEC indicator YES - blue LED diode Laser diode indicator YES - red LED diode Board dimensions 65mm x 90mm Heat sink dimensions 100mm x 80mm x 35mm Transistor type N-MOSFET Description The subject of the auction is a professional three-channel driver for laser diodes with a built-in digital temperature controller using the PID algorithm. Due to high current efficiency, the driver is dedicated to be used with high power laser diodes in projectors and RGB laser systems. Due to the fact that each channel is independently powered, one can optimize the heat loss when using at once low voltage laser diodes (e.g. 650nm or 808nm) and high voltage laser diodes (405nm or 445nm). GND inputs of all channels are connected on the PCB board, however it is recommended to use separate cables for each GND input. Moreover, each channel is independently controlled via the analog input of 0 - 5V. Analog input allows for the modulation of the current flowing through the diode up to 200kHz. Two potentiometers in each of the channels are used to set the values of maximum diode current and bias current. Changing the offset current one does not change the maximum current set before with proper potentiometer. The third potentiometer is responsible for setting the setpoint temperature in the range of 0 to 40 degrees Celsius. Thanks to an included radiator you do not need to worry about heat dissipation, drilling and isolation of power transistors from the heatsink. It is a fully functioning component ready to be mounted in laser devices. We intentionally resigned from a plug connector powering the circuit because experience shows that soldering the wire is the only sure way to avoid the problems associated with oxidation of contacts and arcing, particularly when a current of 15 A can flow through the wires. Despite its small size, the driver is able to work with thermocouples (Peltier modules) such as 12706, 12708, 07113, and many others that draw up to 15 A of current. Despite high current, thanks to using PWM the controller does not heat up. Used PID algorithm learns the behavior of the system, hence quicker reacts to changes in temperature and provides higher accuracy of stabilization. The driver easily handles all laser diodes of up to 5W, and at the customer's request it is possible to customize the driver up to 10A version. Separate laser diode supply voltage input and TEC input enable the selection of any components the driver can work with. The possibility to power laser diodes of any wavelength and control the Peltier modules with a rated voltage from 3.3 to 36V and current up to 15A make this driver truly unique and extremely versatile. At another auction, you can find the same driver but with three separate channels to control the laser diodes; it is the perfect solution for RGB projectors and laser systems. Attached to the controller is a high-quality set of D-SUB (25 pin) connector which are rated 5A/pin. On the customer's request, D-SUB socket may not be soldered in.Recommendations and requirements The minimum diode input voltage should be higher or equal to 5V, in other situations it is given by the formula: Vin = 0,4* I + Vd + 0,6V Vin - input voltage Vd - diode working voltage I - desired maximum current For each diode channel the voltage can be different depending on diodes used. In that case - (GND) of each power supply must be soldered to the driver board in order to connect them together. Modulation input can be used as TTL input with its logic levels of 0V and 5V or as an analog input. Analog modulation means that by using 2,5 V on ANG input you get 50% output power, analogically by using 4 V you get 80% output power, etc. You should be very careful not to cause short circuit between the + (VCC) of the power supply and ? (GND) of the analog input, as a thin GND analog path can be irreparably damaged. We recommend the use of power cables with cross-section of at least 0.5 mm2. At another auction you can find the same driver but without a heat sink. This reduces the shipping and production costs, but requires the ensuring of an adequate cooling for the driver. If it is not available, please contact us and we will prepare the auction.Protection Each channel responsible for powering a laser diode is protected against reversed polarity. High current Schottky diode of an extremely low forward voltage secures the laser diode against connecting reversed voltage with the aim of protecting frequently the most expensive part of the entire device - a laser diode. In turn, the low forward voltage does not cause excessive heat loss during normal operation. The analog input is protected by a 5V1 Zener diode on occasion there appears the voltage higher than 5V. Despite everything, this input should not be used with higher voltages. A microcontroller ensures the proper operation of the entire system which on the occassion of exceeding 50 degrees Celsius, turns off the laser diode channels and does not allow for their further operation , it also goes into failure state (blinking LED) until the restart. The microcontroller will operate in the same way in case of connection loss with a thermistor measuring the temperature. The driver is fitted with a two-second softstart designed to protect laser diodes against switch-on effects. Shipping Items are shipped withing three working days. All packages are well secured for shipping. 2014 © Opt Lasers ✖ ◀ ▶
