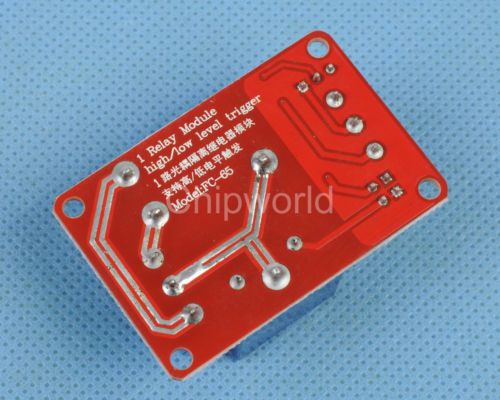

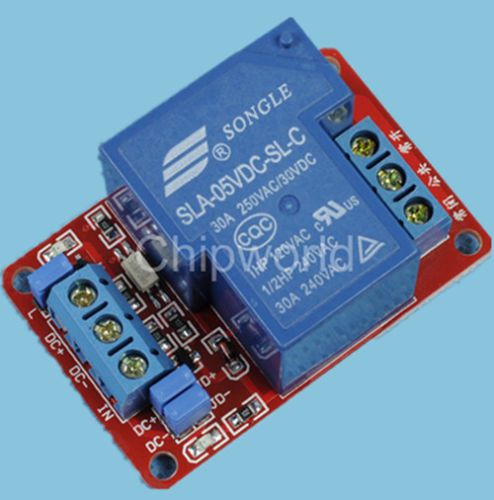

5pcs 5V 1 Channel Relay with Optocoupler H/L Level Triger, US $14.98 – Picture 0

5pcs 5V 1 Channel Relay with Optocoupler H/L Level Triger, US $14.98 – Picture 1

5pcs 5V 1 Channel Relay with Optocoupler H/L Level Triger, US $14.98 – Picture 2

5pcs 5v 1 Channel Relay With Optocoupler H/l Level Triger

US $14.98

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Recommendations For You NE555 Cycle Frequency Module Square Wave NE555 Adjustable Frequency Pulse Generator Module NE555+CD4017 Light Water Electronic suite DIY Kits Muti_Function Perfect Version Delay Module H/L/NC/NO Trigger Wobbly windbell DIY Kits Electronic Production/YFL-80 907 constant temperature soldering iron (pro-duction) Visit my eBay Store:ChipWorld Product Name: 5pcs 5V 30A 1-Channel Relay Module with Optocoupler H/L Level Triger for Arduino More Items In Our Store,Click Here! SKU: 3366*5 Parsts No. : Package: Brand: Quantity: 5 1 Channel Relay 2 Channel Relay 3 Channel Relay 4 Channel Relay 6 Channel Relay 8 Channel Relay Module description: 1. 30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A; 2. Optical coupling isolation, driving ability is strong, stable performance;Trigger current is 5mA; 3. Module can be set high level or low level trigger by the jumper; 4. Power indicator light (green), relay status indicator light (red); 5. Module Size:50mm*33mm*24mm; Technical parameters: Voltage version:5V The static current:5mA Working current:190mA Trigger current:2-4mA Module interface specifications: 1. DC+ : DC power supply positive pole 2. DC- :DC power supply negative pole 3. IN : signal triggering pin 4. JD+ : relay control voltage positive 5. JD- : relay control voltage negative 6. DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal 7. High and low level trigger mode selection.Jumper and L pin connection, IN pin is low level triggerJumper and H pin connection, IN pin is high level trigger 8. Normally closed pin (NC) : relay normally closed pin 9. Common pin (COM) : relay common pin 10. Normally opened pin (NO) : relay normally opened pin For more quantity, please contact me.(My skype: ada-yu2013) The Standard shipping we provide is non-regiested mail without a tracking. We provide free shipping with tracking number when your order is over $50. If your oder is below $50 and you need tracking, please contact me. Maybe you request Mouse over image to zoom LCD2002 2002 20x2 Character Display Module for Arduino Yellow new NEW 3.5" TFT LCD Module Display + Touch Panel + PCB adapter NEW 4.3" TFT LCD Module Display + Touch Panel + PCB adapter NEW 7" TFT LCD Module Display + Touch Panel + PCB adapter Mouse over image to zoom 2PCS 12864 Blue Backlight 128X64 Dots Graphic Matrix LCD Module Display LCM GOOD $ 9.94 + free shipping $ 22.94 + free shipping $ 39.85 + free shipping $ 65.0 +free shipping $ 18.0 + free shipping Any problem, please contact us freely 1) We accept PayPal payment ONLY. inkFrog Analytics
