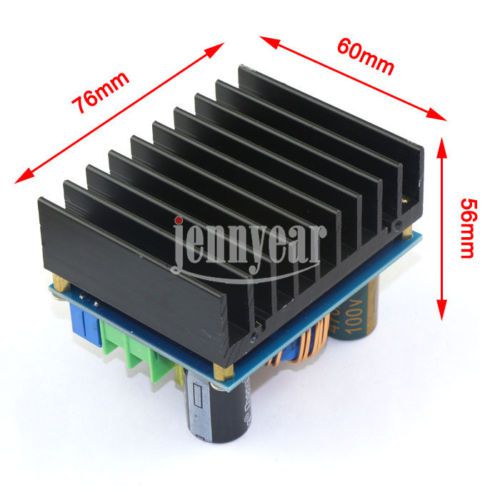

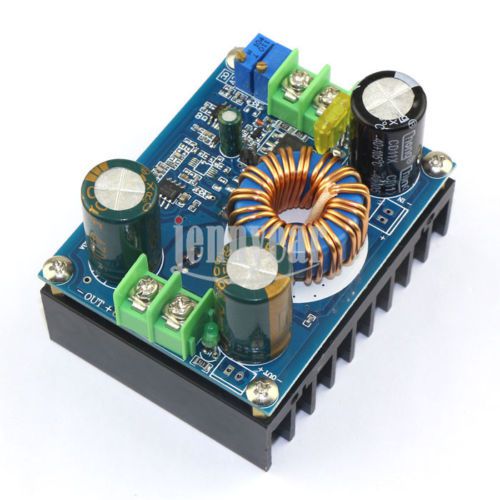

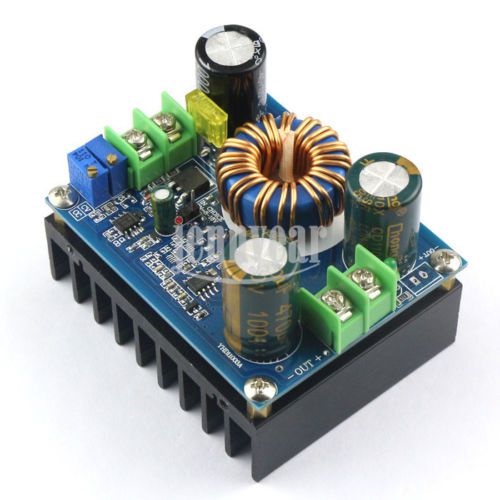

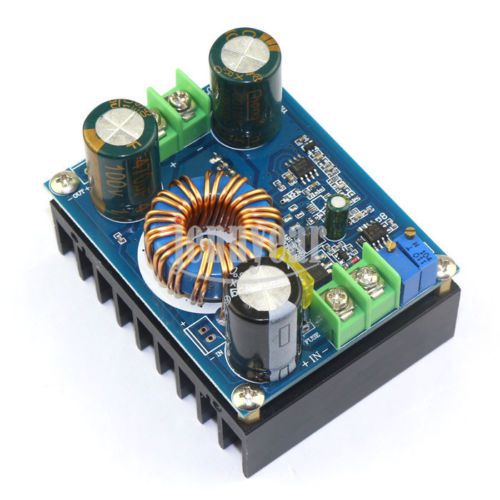

600w Constant Current 12-60v To 12-80v Dc Step Up Electrical Converter Regulator

US $26.38

Guang Zhou, China
Jan 29th

Open on mobile:
QR code

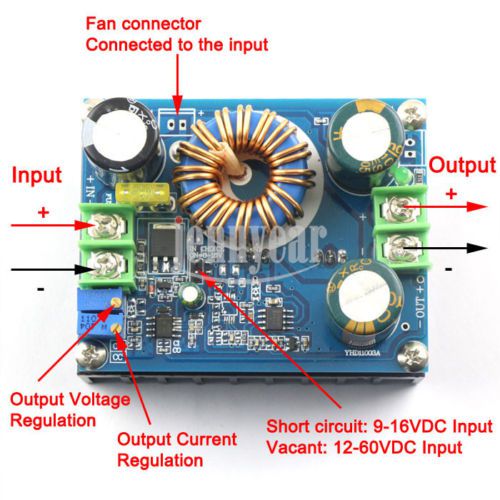

600W Constant Current Adjustable 12-60V to 12-80V DC Step Up Car Converter Solar Charger LED Regulated Power Supply #090089 Product Description Module Parameters: Module Name: 600W boost constant current module, non-isolated Input voltage 1: 12-60VDC (default range, for wide input voltage range applications) Input voltage 2: 9-16VDC (for 3 lithium battery and 12V battery) , please do not overrange Input Current: 16A MAX. (over 10A,please enhance heat dissipation,such as 5cm cooling fan) Quiescent Current: 15mA (when 12V step up to 20V), if the output voltage is higher, the quiescent current will increase.) Output Voltage : 12-80VDC (continuously adjustable),default output: 19VDC Output Current: 12A Max. (over 10A,please enhance heat dissipation.), the greater the input and output voltage difference , the smaller the output current Constant current range :0.1-12A Output power: = Input voltage * 10A, such as: input 60V * 10A = 600W,if need more output power, such as need the output to 15A,two modules can be used in paralle, the current of each module can be adjusted to 8A. Conversion efficiency: Up to 95% Operating Frequency: 150KHz Operating temperature: -40 to +85 °c (if the ambient temperature is too high, please enhance heat dissipation) Overcurrent protection: Yes (if the input exceeds 17A, automatically reduces the output voltage) Short-circuit protection: Yes (20A input fuse,double short-circuit protection.) Output feeding back protection:Yes (for charging,the separate output diode is not required.) Input Reverse Polarity Protection:None (If need please install diode at the input port ) Installation: two 3mm screws Connection: terminals, solderless Dimensions: 76mm x 60mm x 56mm Module Weight: 205 g Application: DIY a regulator power supply, input 12V, output can be 12-80V adjustable. The power supply for electronic equipment. Used as a car power supply, Power supply for laptop,PDA, or other digital products DIY a laptop mobile power supply: 12V coupled with high-capacity lithium batteries, Solar panel regulator Batteries charger Driving high-power LED lights. Note: For battery charging, the need to battery is fully discharged,then connected to the output, and then adjusted to the desired current. Because the more the battery remaining, the smaller the charge current. When the Input voltage rang of 9-12VDC (short circuit method), under this state, the module circuit can not be adjusted. Package Included: 1x Boost Converter Constant Current Module Payment Method We accept only Paypal for both domestic and international. We will ship to the shown address on you PAYPAL Payment notice,Please confirm your shipping address in the PayPal Account. If buyer want to delay the payment because of financial problem, please contact me by the ebay message within 3 days. Shipping Detail Ship by Post Air-mail within 3 working days after full payment is received. The shipment usually takes 15-45 business days to Worldwide. We also provide international Expressed delivery such as EMS, DHL and UPS,extra shipping fees is needed. The shipping time may vary, depends on receiver's location. Feedback Policy We will leave positive feedback to buyer as soon as buyer pays for the item. Leaving Negative feedback or Netural Feedback is never a good way to resolve problem .We hightly appreciate that you can contact with us before you leaving Negative feedback or Neutral feedback .We will offer help to resolve your problems as fast as possible. Customer Service Work Time If you have any questions,Please contact with us via eBay message or our customer service e-mail . please be advised that e-mails will be replied by our customer services officers Mon. - Fri. 11:00 - 20:00 and Saturdays 11:00 – 15:00(Excluding Weekends and Public Holidays) You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Engineered for professional eBay sellers! On Dec-18-14 at 12:45:40 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Module Name	600W boost constant current module, non-isolated
Installation	two 3mm screws
Constant current range	0.1-12A
Connection	terminals, solderless
Conversion efficiency	Up to 95%
Module Weight	205 g
Operating Frequency	150KHz
