8ghz Wr112 Power Detector Waveguide Power

US $120

  • San Jose, California, United States
  • Feb 23rd
Open on mobile:
QR code

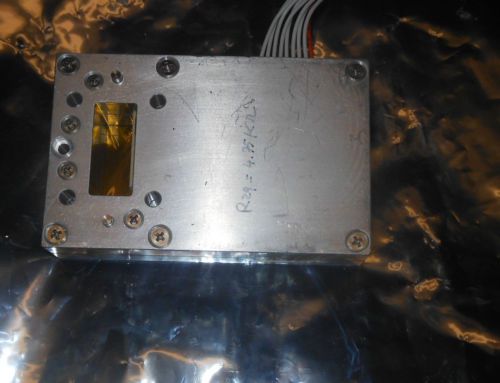

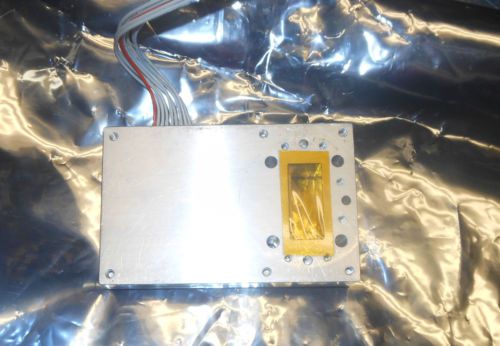

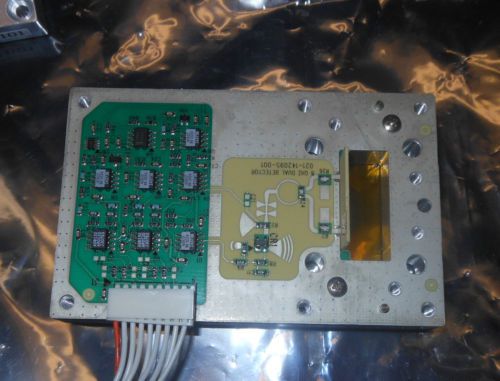

Power detector module out of a microwave radio 8 GHZ  WR112   7725 – 8500 It is in good shape If you have any issues with it you can return it. 4" x 2 1/4" x 1" Shipping to the US is $5. $14 for the rest of the world. I will combine auctions to lower shipping costs. The Power Detector module consists of an RF coupler, an optional RF amplifier, a RF power detector, and DC amplifiers. Pin # Signal Name Range Nominal Function 1 +5 VDC IP_5VDC 5.0­+0.25V +5.0V +5 V 2 -5.25 VDC IP_NEG5P25VDC -5.25 +0.25V -5.25V -5.25 V 3 Temperature Sensor PI_PDET_TEMP 0 to 2V N/A Temperature Sensor Output 4 Power Detector  (-), Low Power Range PI_PDET_NEG_LOW -2.5 to +2.5 V N/A Detector Negative Output, Low Power range 5 Power Detector  (+), Low Power Range PI_PDET_POS_LOW -2.5 to +2.5 V N/A Detector Positive Output, Low Power range 6 Power Detector  (-), High Power Range PI_PDET_NEG_HI -2.5 to +2.5 V N/A Detector Negative Output, High Power range 7 Power Detector  (+), High Power Range PI_PDET_POS_HI -2.5 to +2.5 V N/A Detector Positive Output, High Power range 8 Detector Bias Control IP_DETBIAS_CNTL 0 to 3.3 V 0 to 3.3 V Detector bias control, “1” = High Power range 9 Ground GND N/A 0 V Ground
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Country of Manufacture United States
