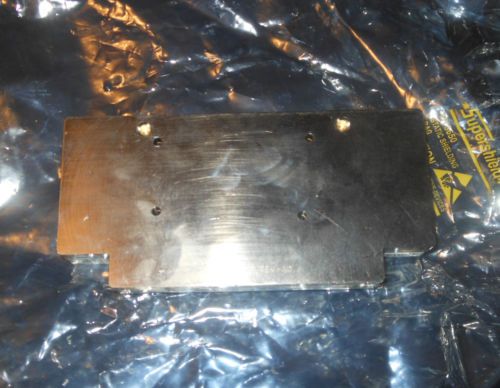

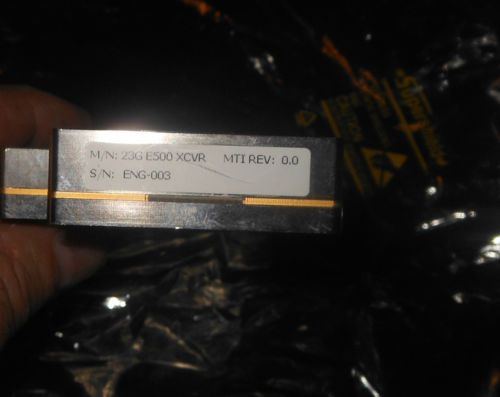

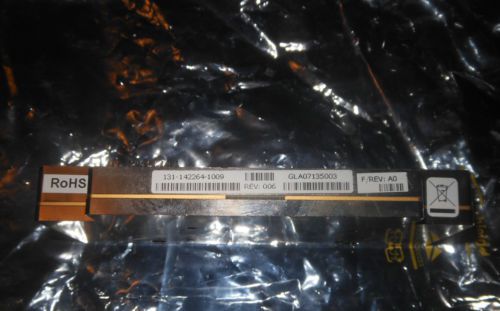

Microwave Tx Rx 23 Ghz Module Transceiver Wr42 131-142264-1009

US $52

  • San Jose, California, United States
  • Feb 22nd
Open on mobile:
QR code
Microwave TX RX 23 GHz Module Transceiver WR42 Size 4 1/2" x 3" x 3/4" thk TX 21200-22600  RX 22400-23600 It is in good shape If you have any issues with it you can return it. Shipping to the US is $5. $14 for the rest of the world. I will combine auctions to lower shipping costs. Pin # Signal A/D Name Range Function 1 -5.0 VDC A IX_-5VDC -5.0 + 0.15V -5.0 VDC to Interface Card 2 +5.0 VDC A IX_+5VDC +5.13 + 0.25V +5.0 VDC 3 TX Temp Sensor A XI_TX_TEMP 0 to 2.0 V TX Temperature Sensor Output 4 Spare N/A Spare1 N/A Spare 5 TX Mute D XI_TX_MUTE_EN 0 to +3.3V TX Mute 0V (LOW) => Mute ON +3.3V (HIGH) => Mute OFF 6 Spare N/A Spare3 N/A Spare 7 PA Alarm A XI_ALM 0 to -2.5 VDC Alarm “ON” when >= -0.25VDC (see Note 1 below this table) PA Alarm Signal. 8 PA2 Gate Voltage A IX_VG2 0 to -2.5 VDC (Current = 10 mA max) PA2 Gate Voltage 9 PA1 Gate Voltage A IX_VG1 0 to -2.5 VDC (Current = 10 mA max) PA1 Gate Voltage 10 Ground A GND 0 VDC Ground 11 Ground A GND 0 VDC Ground 12 Ground A GND 0 VDC Ground 13 PA2 Drain Voltage A IX_VD2_2 +7.25 + 0.23 VDC  or +10.25 + 0.32 VDC PA2 Drain Voltage 14 PA2 Drain Voltage A IX_VD2_1 +7.25 + 0.23 VDC  or +10.25 + 0.32 VDC PA2 Drain Voltage 15 PA1 Drain Voltage A IX_VD1 +7.25 + 0.23 VDC  or +10.25 + 0.32 VDC PA1 Drain Voltage 16 RF Detector Voltage A XI_VDET 0 to +3.3 VDC RF Detector Voltage 17 PA Voltage Selection A XI_VPA_SEL Open or Ground PA voltage setting, “GND” = +10.25 VDC PA “OPEN” = +7.25 VDC PA 18 RF Detector Gain Setting A XI_VDET_GAIN 0 to + 3.3 VDC DC gain of detector voltage 19 PA Current Select 2 A XI_CURR_SEL2 0 to +7.25 or 10.25 VDC Select PA2 Drain Current 20 PA Current Select 1 A XI_CURR_SEL1 0 to +7.25 or 10.25 VDC Select PA1 Drain Current 21 -5.0 VDC Sequence A XI_-5VDC -5.0 + 0.15 VDC -5.0V Return to IF Card
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Country of Manufacture United States
