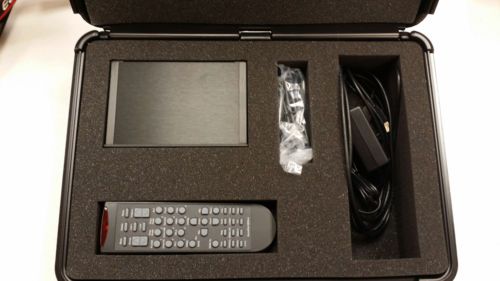

Accupel Dvg-5000 Professional Hd Video Test Pattern Generator

US $1,699.00

  • Sioux Falls, South Dakota, United States
  • Jan 29th
    These are BRAND NEW - Excellent Pattern Source, includes may test patterns you cannot find anywhere else! We are pleased to offer the new AccuPel DVG-5000 Video Test Pattern Generator. The DVG-5000 is the latest in a line of highly-regarded video test pattern generators designed by renowned video engineer Greg Rogers. We are now the exclusive distributors of AccuPel devices. The digital-only DVD-5000 offers several enhancements over earlier AccuPel devices, including new test patterns and native HDMI output all at a lower price. Why HDMI? Until the DVG-5000, AccuPels have always used DVI for digital signal output. Although the units fully supported digital YCbCr output, displays would generally default to RGB, rendering the YCbCr signal unusable. With an HDMI emitter chip that communicates to the display the type of signal being transmitted, full YCbCr functionality is now fully achieved. Why use a test pattern generator? There are two reasons to use a high-quality test pattern generator. The first reason is accuracy. Thousands of hours of engineering effort has gone into creating the AccuPel line of generators all for the purpose of creating test patterns of the highest possible quality. All professional calibrators should use an external video test pattern generator, such as the AccuPel. The second reason is speed. Each AccuPel ships with a remote control that allows very rapid access to any test pattern. More importantly, the AccuPel interfaces a PC and video calibration software, such as ChromaPure, via USB. This allows the software to control the AccuPel automatically. This means that whenever the user takes a measurement from the software, the AccuPel first provides the necessary test pattern without further user invention. If you have not used automation with your calibration sessions, you cannot imagine how much faster the process flows and how much easier the calibration procedures become. Why choose AccuPel? There are three reasons to prefer an AccuPel. The first reason is quality. The quality of the engineering that has gone into the AccuPel line of video test pattern generators is unsurpassed. The second reason is ease-of-use. The DVG-5000 is remarkably light-weight and small. Also, each generator ships with its own remote control. This is a feature that test pattern generators that cost thousands of dollars more do not provide. The DVG-5000 is also backwards compatible, including 3D, for any software that supported the HDG-3000/4000. You will only lose the test patterns that are new for the DVG-5000, and even these will be accessible from the remote control. The third reason is cost. AccuPel's have always been a labor of love by a few dedicated and hugely talented individuals. Given the low overhead, it has always been priced at a level lower than other similar products on the market. The DVG-5000 will continue and enhance that tradition with an MSRP even lower than previous models. The DVG-5000 offers full support for all major 3D formats. The full selection of test patterns available in the standard mode are also available in the 3D mode. In addition to 3D test patterns, the DVG-5000 also provides a special interactive 3D crosstalk test pattern.   DVG-5000 Features Digital-only output HDMI native output Full YCbCr support Test patterns in all major 3D modes Motion test patterns to test video processing Deep Color and native 10-bit color Full compliment of motion test patterns Window and full field test patterns at 75% and 100% New precision black level test pattern   3D Test Patterns The AccuPel 3D update provides 3D performance for ALL of the AccuPel test patterns with a selection of 33 3D Formats. Each 3D format is a combination of a 3D structure and an existing video resolution. The DVG-5000 supports all of the structures that are in actual use for distributing 3D content. This includes: Frame Packing (8 Formats) Side-by-Side (14 Formats) Top-and-Bottom (11 Formats) 1080p23.98/24 1080i59.94/60 1080p23.98/24 720p59.94/60 1080i50 720p59.94/60 720p50 1080p23.98/24 720p50 1080p29.97/30 720p59.94/60 1080p59.94/60 1080p25 720p50 1080p29.97/30   1080p59.94/60 1080p50   1080p29.97/30 1080p25   1080p50     1080p25   The generator is very smart and will not allow the user to get into an invalid combination of video resolutions and 3D structures. The front panel Format button will skip all invalid 3D formats, and invalid 3D formats will be ignored if attempted to enter from the remote control. There is no way to enter an invalid format over the USB either. When entering the 3D mode the generator will automatically change to a valid format if necessary. There are no Standard Definition 3D formats implemented, so the user must leave the 3D mode to return to a standard definition format. ALL previous DVG-5000 test patterns work in ALL 33 3D formats and produce patterns that simply look like their 2D versions. They do not appear in 3D (i.e. they have no depth). It is not the purpose of the generator to produce wild 3D demonstration patterns to entertain the user. The patterns can be used for all of the same purposes they are used on 2D displays (i.e. setting grayscale, color encoding, CMS adjustments, black level, white level, checking overscan, measuring ANSI contrast, measuring full-field contrast, checking scaling, checking convergence on 3 panel projectors, checking resolution, adjusting sharpness and detail enhancement, etc.), but with 3D signals placing the display in its 3D Display Modes instead of displaying 2D signals in its very different 2D Display mode. It is obvious immediately that a display that is calibrated and looks perfect using 2D signals may look VERY different with 3D signals and need separate calibration in the 3D signal modes. In addition the 3D modes may show bugs, and implementation errors that are not present using 2D signals. In particular the patterns with fine lines (16:9 pattern, overscan pattern, sharpness pattern, crosshatch pattern) can be used to spot various problems and bugs in the displays 3D implementation. Although the patterns appear to be the same in the 2D and 3D signal output modes there are some changes due to the half vertical resolution of the Top-Bottom signal structure and the half horizontal resolution of the Side-by-Side (Half) signal structure. For instance, the multiburst pattern highest resolution burst is half its 2D version resolution in the 3D Side-by-Side mode because that structure only supports half the horizontal resolution of the 2D display mode. CROSSTALK TEST PATTERN In addition to the 33 3D formats, there is also an entirely new, interactive test pattern and menu system in the 3D Mode menu for testing 3D Crosstalk from the left eye to the right eye (and visa-versa). Crosstalk is one of the most important determinants of 3D image quality. The Professional AccuPel option adds motion test patterns. This version is designed for those who engineer and test video displays, as well as professional calibrators and reviewers. Motion Test Patterns Motion Group Motion Pattern Variations # of Patterns Circular Zone Plates 71% Nyquist Zone Plate Tiny, Small, Medium, or Large 12   Nyquist (Zone Plate)       ZP (Zone Plate) Field     Hyperbolic Zone Plates Zone Plate 1   5   Zone Plate 2       Zone Plate 3       Zone Plate 4       Zone Plate 5     Resolution Wedges V Res 1 Left, Right 15   V Res 2       V Res 3       H Res 1 Top Top, Bottom     H Res 2 Top       H Res 3 Top       HV Res 1       HV Res 2       HV Res 3     Linear Frequency Sweeps H1 Rectangle, Field 16   H2       H3       H4       V1 Rectangle, Field     V2       V3       V4     Detail Discs H Slice 1, 2, 4, 8 16   V Slice       Squares       Checkerboard     Cosine Balls Ball 91       Ball 128       Ball 181       Ball 256       Ball 362       Ball 512   6
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Type Hardware
Model DVG-5000 Professional
Brand Accupel
MPN DVG-5000-P
