Afl Noyes Cksm-2 Sm Mm Fiber Optic Loss Test Set Cksm 2 Csm 1 Css 1

US $1,895.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

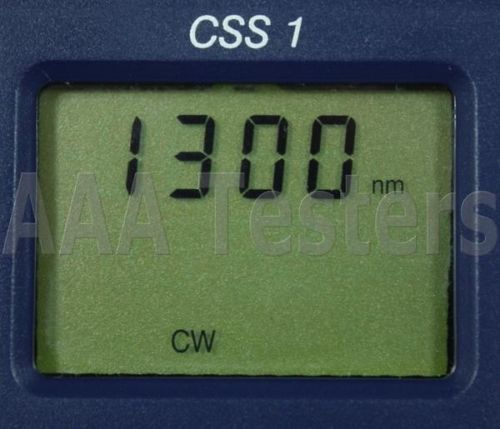

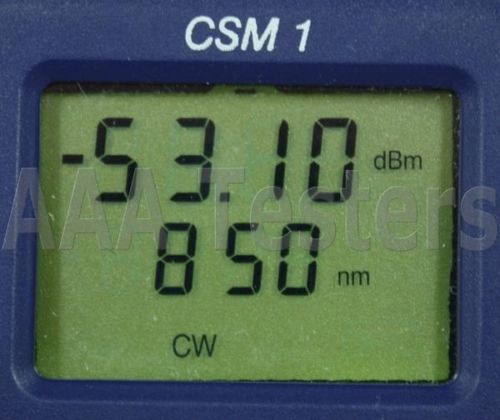

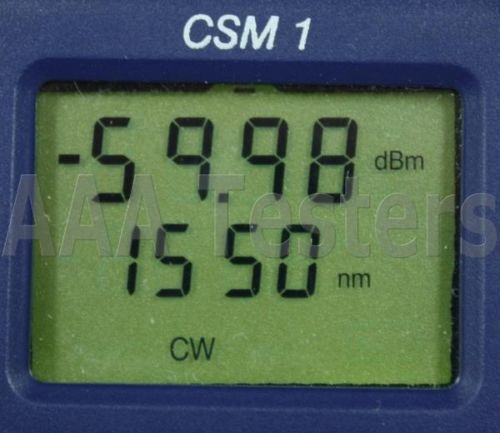

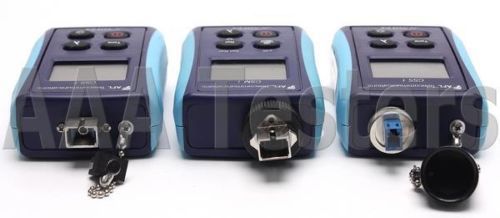

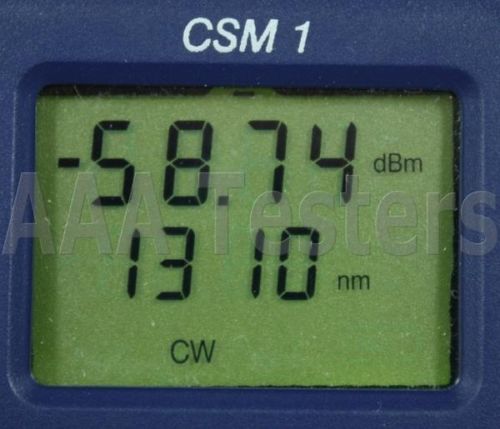

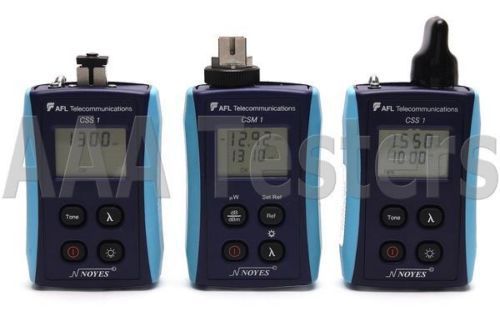

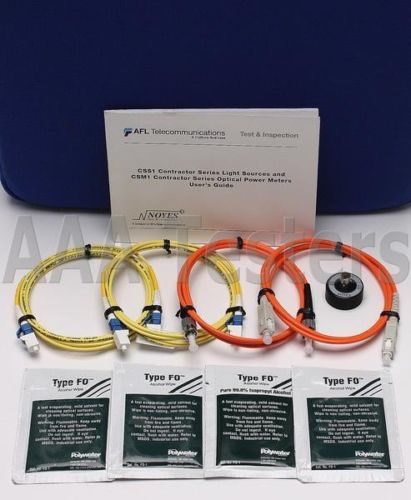

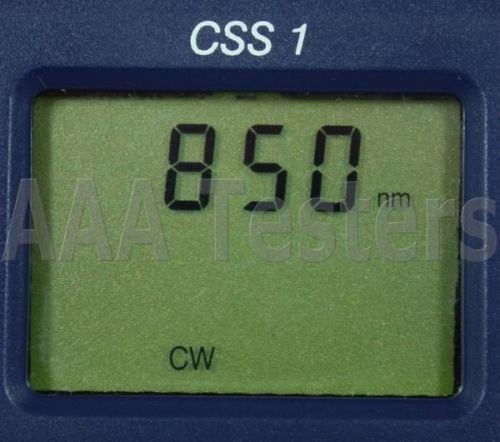

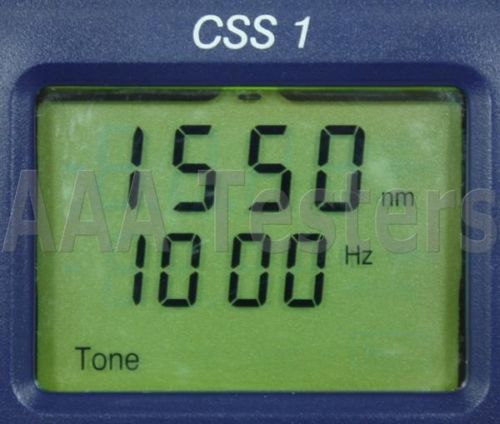

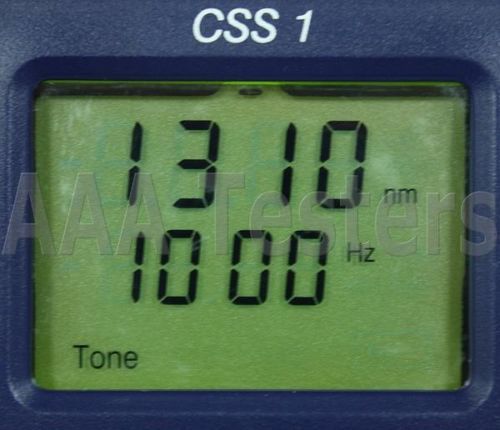

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: AFL / Noyes CSM1-2 Optical Power Meter (BC# 18650) Power Meter: 850nm 1300nm 1310nm 1550nm Interchangeable SC Connector For Meter Interchangeable ST Connector For Meter AFL / Noyes CSS1-MM MultiMode Source (BC# 18651) MM Source: 850nm 1300nm AFL / Noyes CSS1-SM SingleMode Source (BC# 18657) SM Source: 1310nm 1550nm SC Connector For Source LC Connector For Source MM ST-ST Fiber Cable MM SC-SC Fiber Cable (2) SM LC-LC Fiber Cables (4) Fiber Optic Wipes Hard Copy User Manual Carrying Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! AFL Telecommunications Noyes CKSM-2 Singlemode 1310 / 1550nm Multimode 850 / 1300nm Fiber Optic Loss Test Set Power Meter: - 850nm - 1300nm - 1310nm - 1550nm Includes Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Warranty: 90 Day Exchange Warranty Combining the CSM1-2 optical power meter, CSS1-MM Dual LED light source, and CSS1- SM Dual LASER source, the CKSM-2 is a cost-effective test kit designed for performing insertion loss measurements on multimode as well as single-mode fi ber optic links. The CSS1-MM and CSS1-SM sources feature Dual output, 850 /1300 nm LED or 1310/1550 nm LASER respectively, from a single output port. Both CSS1 models offer 2 modes of operation, continuous wave (CW) and user selectable modulated Tone. The CSS1-MM LED and CSS1-SM LASER output ports are stabilized to ensure accurate test results per current TIA/EIA requirements. An easy to read LCD display with Backlight shows emitted wavelengths [nm], tone frequency [Hz], and Low battery condition. The CSS1-MM model output port is equipped with a fi xed SC connector while the CSS1-SM output port is equipped with Universal Connector Interface (UCI) base and SC adapter. The CSM1-2 optical power meter operates at 850/ 1300/ 1310/ 1550 nm and features multiple test Tone detection for fi ber identifi cation. The CSM1-2 stores optical references for each calibrated wavelength. An easy to read LCD display with Backlight shows measured power [dBm or ?W] or insertion loss [dB], calibrated wavelengths, tone frequency [Hz], and Low battery condition. The CSM1 optical input port accepts Noyes thread-on style adapter caps. One adapter cap, 2.5 mm Universal, is included. A variety of Noyes thread-on style adapter caps (FC, SC, LC, etc.) may be ordered separately. Weighing only 0.4 lb each, units are compact and convenient for fi eld use. The CSS1-MM Dual LED light source, CSS1-SM Dual LASER source, and CSM1-2 optical power meter are fully N.I.S.T. traceable. Features: Palm-sized, rugged, lightweight Certify multimode fiber links per TIA/EIA standards CW and modulated Tone 270, 330, 1000, and 2000 Hz supported Tone Power measurements in dBm or ?W; insertion loss in dB Reference power level storage Large LCD with Backlight AA alkaline, optional NiMH or NiCd Automatic power-off function Battery Gauge Free 50 µm and 62.5 µm mandrels Cost-effective, easy to use N.I.S.T traceable CSS1-MM Specifications Optical CSS1-MM (single port) Output wavelength 850 nm ±20 nm 1300 nm +40/-60 nm Spectral width (max) 35 nm 170 nm Output power -20.0 dBm into 62.5/125 fiber Laser classification Class 1 (IEC 60825 - 1) Stability ± 0.1 dB over 1 hour (after 30 sec. typically) ± 0.15 dB over 8 hours (after 30 sec. typically) Display type Liquid Crystal Display w/LED Backlight Power 2 x AA batteries, optional NiMH or NiCd Battery life 30 hours typical (with 2 x AA Alkaline) Output connector SC Operating temperature -10 to 50°C, 90% RH (non-condensing) Storage temperature -30 to 60°C, 90% RH (non-condensing) Size (H x W x D) 4.2 x 2.5 x 1.25 in (10.7 x 6.4 x 3.2 sm) Weight 0.4 lb (0.18 kg) CSS1-SM Specifications Optical CSS1-SM (single port) Output wavelength 1310 nm ±20 nm, 1550 nm ±20 nm Spectral width (max) 5 nm Output power 0.0 dBm into 9/125 fiber Laser classification Class 1 (FDA 21 CFR 1040.10 and 1040.11, and IEC 60825-1) Stability ± 0.05 dB typical over 1 hour (after 30 sec.) ± 0.15 dB over 8 hours (after 30 sec. typically) Display type Liquid Crystal Display w/LED Backlight Power 2 x AA batteries, optional NiMH or NiCd Battery life 75 hours typical (with 2 x AA Alkaline) Output connector UCI base and FC, SC, ST, or LC adapter Operating temperature -10 to 50°C, 90% RH (non-condensing) Storage temperature -30 to 60°C, 90% RH (non-condensing) Size (H x W x D) 4.2 x 2.5 x 1.25 in (10.7 x 6.4 x 3.2 sm) Weight 0.4 lb (0.18 kg) CSM1-2 Specifications Optical CSM1-2 Calibrated wavelength 850, 1300, 1310, 1550 nm Detector type Germanium (Ge) Measurement range +6 to -60 dBm Tone detect range +6 to -50 dBm +6 to -45 dBm for 850 nm Accuracy ± 0.3 dB* Resolution 0.01 dB Measurement units dB, dBm, iW Display Type Liquid Crystal Display w/LED Backlight Fiber Type Single-mode/ Multimode Power 2 x AA batteries, optional NiMH or NiCd Battery life > 300 hours (with 2 x AA Alkaline) Operating temperature -10 to 50°C, 90% RH (non-condensing) Storage temperature -30 to 60°C, 90% RH (non-condensing) Size (H x W x D) 4.2 x 2.5 x 1.25 in (10.7 x 6.4 x 3.2 sm) Weight 0.4 lb (0.18 kg) Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Manage all your eBay listings with Kyozou eBay Listing Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Noyes
Model	CKSM-2
