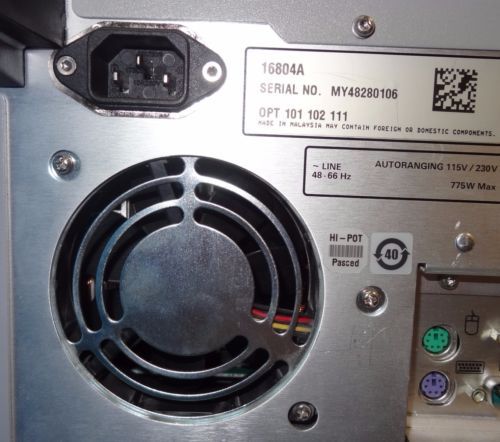

Agilent 16804a 136 Channel Portable Logic Analyzer

US $7,500.00

  • Anaheim, California, United States
  • May 6th
Open on mobile:
QR code
Agilent 16804A 136 Channel Portable Logic Analyzer click to Enlarge click to Enlarge click to Enlarge click to Enlarge click to Enlarge click to Enlarge click to Enlarge Description :         Condition:   Used    Included: Agilent 16804A 136 Channel Portable Logic Analyzer and power cord.   Missing: Unknown.   Specs: Logic Analyzer Configuration 15-inch (38.1 cm) color display with touch screen available 136-channel portable logic analyzer with up to 32 M acquisition memory depth Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments) Timing Analysis (Asynchronous Sampling) 4 GHz (250 ps) timing zoom with 64 K memory 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory 500 MHz transitional timing State Analysis (Synchronous Sampling) State clock rates up to 450 MHz Data rates: up to 500 Mb/s Automated threshold/sample position setup for accurate measurements on high-speed buses Simultaneous eye diagrams on all channels identify problem signals quickly Configuration Considerations Selectable memory depths: 1 M, 4 M, 16 M, 32 M Compatible with 40-pin logic analyzer probes. Probes are ordered separately. Keysight’s Probe Recommendations Description The 16800 Series portable logic analyzers deliver an exclusive combination of logic analysis, pattern generation, application software and innovative probing. Shipping : Shipping & Handling: PAYPAL USERS, WE ONLY SHIP TO CONFIRMED USA ADDRESS IN PAYPAL NO EXCEPTIONS. We only ship to the lower 48 states. Additional charges will apply for shipping to Alaska, Hawaii, or Puerto Rico. International NO APO’s & FBO’s Bidders, please contact before bidding Pickups are welcome C.A Residents must pay 8.0% tax. Payment : Payment Methods PayPal   Transaction Terms All payments must be received within 3 business days of the end of the auction.   inkfrog terapeak
“Used with minor cosmetic damages.”
Brand Agilent
MPN 16804A
Model Logic Analyzer
