Agilent/hp 54504a 400 Mhz 400 Msa/s Real-time Digital Oscilloscope W Probe Cal;d

US $395.00

Loveland, Colorado, United States
Jan 29th

Open on mobile:
QR code

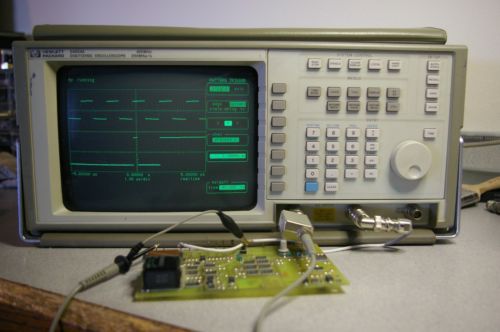

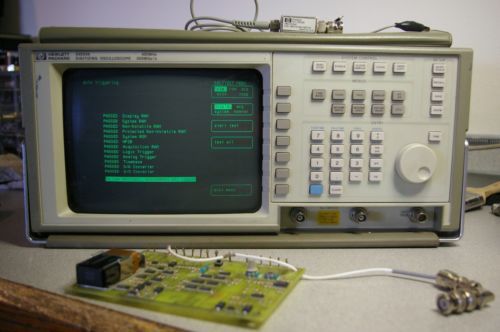

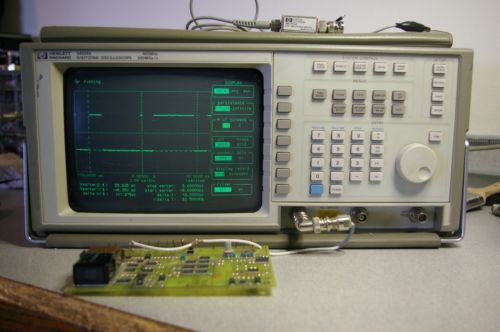

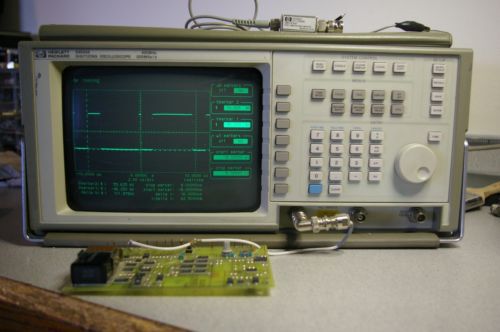

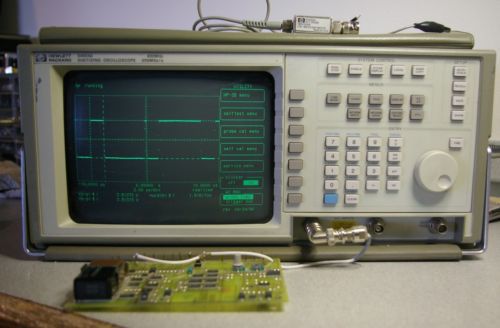

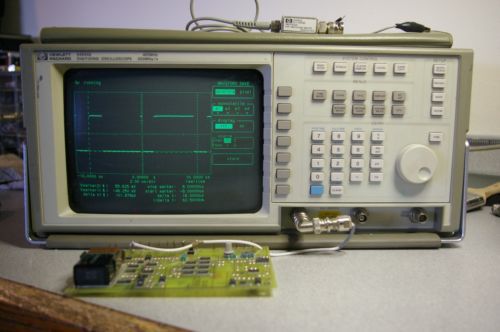

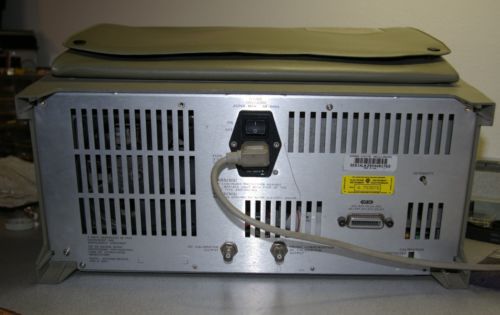

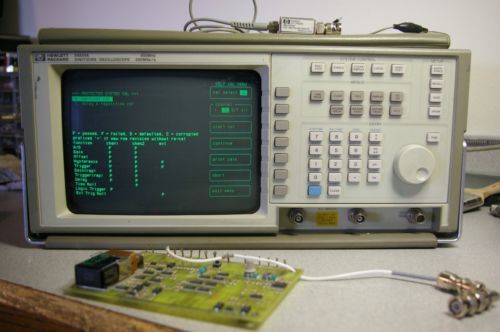

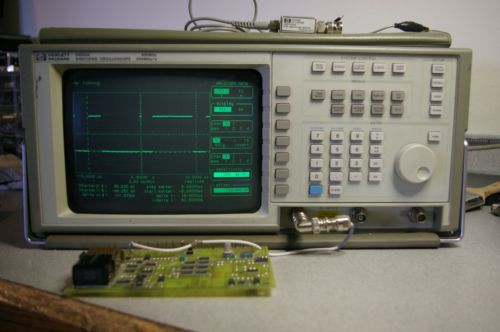

General Description/Specs What you get: This is a refurbished 54504A 400 MHz 2 channel digital Oscilloscope with power cord and one 10430A 500 MHz probe. What you see in the pictures is what you get. (Not the test board) It has passed all self-tests and is calibrated. See the pictures. Good chassis. The pictures show the main menus. Study them to learn more about functionality. About the 54504A Product Specs: 2 channels Repetitive mode Bandwidth: 400 MHz Real-time mode, 200-MSa/s sample rate provides a single-shot bandwidth of 50Mhz ( 4 samples per period) Two-channel simultaneous sampling Ease of use Advanced logic triggering Automatic measurements For comparison, the 54503A has 500 MHz repetitive bandwidth, but 2 MHz real time bandwidth. The 54504 has 400 MHz repetitive bandwidth but 50 MHz real time bandwidth. Real time bandwidth is important when a trigger event occurs only once as it might in an error pulse or a glitch. I was product support engineer on this product before I retired. Any 54504A I sell will be fully reconditioned and tested for these failures. It will also be fully calibrated. I do not have an ISO traceable cal lab, but any unit I sell will pass calibration at an ISO lab. If you have problems, please contact me for fair resolution. In the random repetitive mode, sample placement relative to the analog trigger on any acquisition is precise to within 40 psec. Therefore with repetitive signals and multiple acquisitions, a waveform with 40 psec resolution can be constructed. Very precise timing measurements are possible on repetitive signals. The channels have 1mV to 5V/div sensitivity in a 1-2-5 sequence. Inputs are 50 ohm or 1Meg. The time base provides sweep speed range of 200 psec to 5 S/div in 1-2-5 sequence. Dual time base windowing can be used to expand a displayed waveform for a detailed view. Display modes Envelope mode produces two traces, min and max. This mode is useful for jitter measurements. Normal mode is useful for single shot captures (2-channel simultaneous sampling). Average mode allows removal of random noise and improves resolution to 10 bits. Variable or infinite persistence is useful for envelope measurements. Other features include: Autoscale to automatically find and display signals 16 automatic pulse parameter measurements Easy waveform storage into memory. Full programmability over HP-IB Hardcopy to external HP-IB printers Via HP-IB and internal firmware. Capture events negative in time from the trigger event Complex trigger (Edge, 4 Ch pattern, state, Delay or TV) Electronic condition…Excellent… I have reconditioned and calibrated this unit. The Unit passes all self tests and passes calibration. Cosmetic condition… Nice and clean,. I have cleaned this unit up inside and out. The display is bright and crisp when powered up and has NO burn. Cosmetically, there are some minor scratches on the chassis. The chassis is solid. Shipping and Handling… I will add shipping to your invoice based on location. I charge only for the actual shipping cost. I ship UPS ground if in the USA. International shipping (some countries are NOT possible) Contact me for shipping cost. If international, I ship USPS express mail. On heavy items I would prefer to ship to you on your DHL account. If not your DHL account, I can ship USPS express mail international but only if the item conforms to size limitations set by your countries’ customs. (Example… Germany has a limit of 108 inches of girth + length). Some countries have the limit at 96 inches. Warranty… Contact me for fair resolution on any problem. Thanks for looking. Feel free to contact me with questions. About Watronics… I am a retired (35Year) HP/Agilent Oscilloscope design engineer. I buy HP/Agilent scopes on EBAY that are in need of repair. If they are listed as; “parts only”, “Condition unknown”, or “as is”, I bid. I then recondition them such that they pass all self-test and pass calibration. Of course not all units can be repaired. I disassemble these units for parts. Agilent has classified many of these units as obsolete and parts are not available from Agilent. I have accumulated many of the obsolete parts and many are listed in my store “watronics92” I will run the auto self cal on any unit I sell, but I do not have an ISO certified lab. Any unit I sell will pass calibration at an ISO calibration lab.

Condition	Seller refurbished : An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details.
Seller Notes	“slight dings NICE see the pictures of actual unit”
