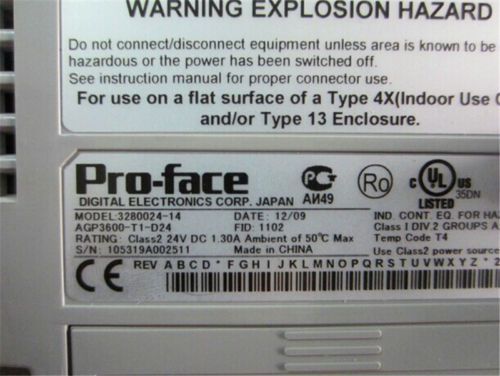

AGP3600-T1-D24 HMI 12.1" 800*600 DC24V with Ethernet CF card dhl freeshipping, US $2,940.00 – Picture 0

AGP3600-T1-D24 HMI 12.1" 800*600 DC24V with Ethernet CF card dhl freeshipping, US $2,940.00 – Picture 1

AGP3600-T1-D24 HMI 12.1" 800*600 DC24V with Ethernet CF card dhl freeshipping, US $2,940.00 – Picture 2

Agp3600-t1-d24 Hmi 12.1" 800*600 Dc24v With Ethernet Cf Card Dhl Freeshipping

US $2,940.00

shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

AGP3600-T1-D24 HMI 12.1" 800*600 DC24V with Ethernet CF card New AGP3600-T1-D24 specifications: Model AGP3600-T1-D24 Display Type TFT Color LCD Display Size 12.1" Resolution 800 x 600 pixels (SVGA) Dot pitch W0.3075 x H0.3075 mm [W0.01 x H0.01 in.] Effective Display Area W248 x H186.5 mm [W9.76 x H7.34 in.] Display Colors 65,536 Colors (No blink)/16,384 Colors (Blink) Backlight When GP Revision 5 and later:<br>*1 Brightness Control 8 Levels (Adjusted with the touch panel) Contrast Control Not applicable Backlight Service Life 50,000 hrs. or more (continuous operation at 25centigrade degree before backlight brightness decreases to 50% or backlight starts to blink) Language Fonts Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable. Character Sizes Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts Font Sizes Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times. 8 x 16 dots 100 char. x 37 rows 16 x 16 dots 50 char. x 37 rows 32 x 32 dots 25 char. x 18 rows 8 x 8 dots 100 char. x 75 rows Program Area FLASH EPROM 132 KB Number of Step Equivalent to 15,000 steps Variable Area SRAM 64 KB (uses lithium battery) Application Memory FLASH EPROM 16 MB Data Backup SRAM 320KB (uses lithium battery)*5 Clock Accuracy 65 sec/month (deviation at room temperature and power is OFF) Touch Panel Type Resistive Film (analog) Touch Panel Resolution 1,024 X 1,024 Touch Panel Service Life 1,000,000 times or more Serial (COM1) RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug) Serial (COM2) RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (socket) Ethernet (LAN) IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1 Expansion Unit 1 Communication Expansion Unit x 1 Expansion Unit 2 VM/DVI Input Expansion Unit x 1 USB (TYPE-A) Conforms to USB1.1 (TYPE-A) x 2, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less Expansion Memory Function Expansion Memory x 1 (Inside interface cover) CF Card Compact Flash CF Card Slot (TYPE-II) X 1 Sound Output Speaker Output, 70 mW (Rated Load: 8 ?, Frequency: 1 kHz), Connector: 2-piece terminal block (AUX) x 1 AUX Input/Output Alarm Output, RUN Output, Buzzer Output, Rated Voltage: DC24V, Rated Current: 50mA, Remote Reset Input, Input Voltage: DC24V, Connector: 2-piece terminal block (AUX) X 1 General specifications: Model AGP3600-T1-D24 Rated Input Voltage DC 24V Input Voltage Limits DC 19.2 to 28.8V Allowable Voltage Drop 10 ms or less Power Consumption 50 W or less In-Rush Current 30 A or less Voltage Endurance AC 1,000V, 20 mA for 1 minute (between charging and FG terminals) Insulation Resistance DC500V 10Mohm (min.), (between charging and FG terminals) Surrounding Air Temperature 0 to 50 centigrade degree Storage Temperature -20 to 60 centigrade degree Ambient Humidity 10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.) Storage Humidity 10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.) Dust 0.1 mg/m? or less (non-conductive levels) Pollution Degree For use in Pollution Degree 2 environment Atmosphere Free of corrosive gases Air Pressure (altitude range) 800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less) Vibration Resistance IEC/EN61131-2 compliant, 5 to 9Hz Single amplitude 3.5mm [0.14in.], 9 to 150Hz Fixed acceleration: 9.8m/s?, X,Y,Z directions for 10 cycles (100 minutes) Concussion Resistance IEC/EN61131-2 compliant, 147m/s? X,Y,Z directions for 3 times Noise Immunity Noise Voltage: 1,000Vp-p, Pulse Duration: 1µs, Rise Time: 1ns, (via noise simulator) Electrostatic Discharge Immunity Contact Discharge Method: 6kV (IEC/EN61000-4-2 Level 3) Grounding Functional grounding: Grounding resistance of 100?, 2mm? or thicker wire, or your country's applicable standard. (Same for FG and SG terminals) Structure Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface of embedded panel)*7 Installation Configuration Embedded panel Cooling Method Natural air circulation Weight Approx. 3 kg [6.6 lb] or less (display unit only) External Dimensions W313 x H239 x D56 mm [W12.32 x H9.41 x D2.2 in.] Panel Cut Dimensions W301.5 x H227.5 mm [W11.87 x H8.96 in.], Panel thickness area: 1.6 to 10 mm [0.06 to 0.39 in.]*8

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	AGP3600-T1-D24
MPN	AGP3600-T1-D24
