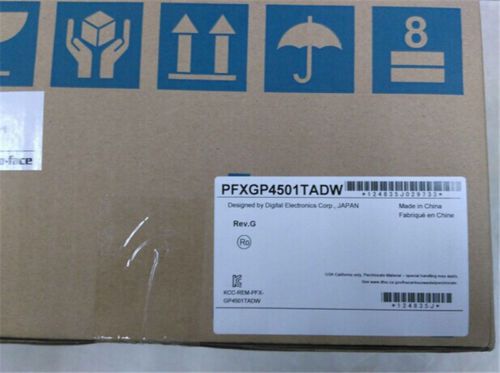

PFXGP4501TADW HMI 10.4" 640*480 DC24V with Ethernet SD Card dhl freeshipping, US $1,635.00 – Picture 0

PFXGP4501TADW HMI 10.4" 640*480 DC24V with Ethernet SD Card dhl freeshipping, US $1,635.00 – Picture 1

Pfxgp4501tadw Hmi 10.4" 640*480 Dc24v With Ethernet Sd Card Dhl Freeshipping

US $1,635.00

shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

PFXGP4501TADW HMI 10.4" 640*480 DC24V with Ethernet SD Card New PFXGP4501TADW specifications: Model PFXGP4501TADW Graphics Display Resolution 640 x 480 pixels (VGA) Display Type and Size TFT Color LCD (10.4 inch) Display Colors 65,536 Colors (no blink), 16,384 (blink) Display Area W211.2 x H158.4 mm [W8.31 x H6.24 in.] Touch Screen Resistive film analog 1024 x 1024 resolution USB USB Type-A (2.0) x 1 , USB mini-B (2.0) x1 SD Card SD Card slot x 1 (maximum 32 GB SD/SDHC Card) Serial COM1: RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: None, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector:D-Sub9 (plug) COM 2: RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: None, Odd or Even Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug) Ethernet Ethernet IEEE802.3i/IEEE802.3u,10BASE-T/100BASE-TX Backlight White LED (User nonreplaceable parts. When replacement is required, contact your local distributor. Brightness and Contrast Controls 8 levels of adjustment available via touch panel or the software Programming Memory 16MB FEPROM (GP-Pro EX V3.0 or later) Backup Memory 128kb SRAM with battery backup General specifications: Model PFXGP4501TADW Input Voltage Rated DC24V (Limits DC19.2 to 28.8V) Power Consumption 17 W or less Ambient Operating Temp. 0 centigrade degree to 50 centigrade degree Storage Temperature -20 to 60 centigrade degree Altitude Endurance 800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less) Certifications CE, UL Listed Cl 1 Div 2, RoHS, ABS (American Bureau of Shipping), DNV (Norway – Marine) Humidity Ambient/Storage 10 to 90 % RH (Wet bulb temperature: 39 centigrade degree [102.2 °F] or less - no condensation.) Noise Immunity Noise Voltage: 1,500 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator) Cooling Method Natural air circulation Electrostatic Discharge Immunity Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3) Vibration Resistance IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s?, X, Y, Z directions for 10 cycles (approx. 100 min) Shock during operation IEC/EN61131-2 compliant 147 m/s?, X, Y, Z directions for 3 times Rating Equivalent to IP65f, Nema #250 Type 4x/13 (Equivalent to NEMA 12 with the addition of “Oil or Spraying and Splashing”) when properly installed in an enclosure Weight 2.5 kg [5.5 lb] or less (display unit only) External Dimensions W315x H241x D56 mm [W12.4 x H9.49 x D2.2 in.] Warranty Two-year standard (maximum 4 years)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	PFXGP4501TADW
MPN	PFXGP4501TADW
