Alan Attenuator 127db Sma Dc-1000mhz 50?

US $115.00

  • Harveys Lake, Pennsylvania, United States
  • Jan 29th
Open on mobile:
QR code

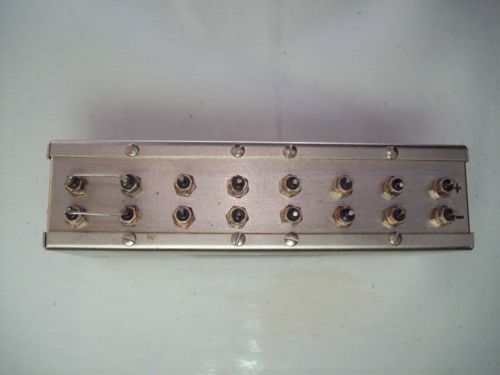

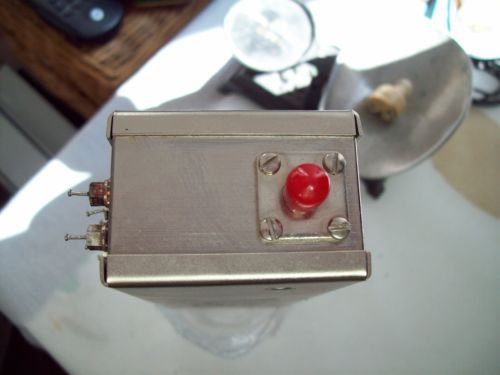

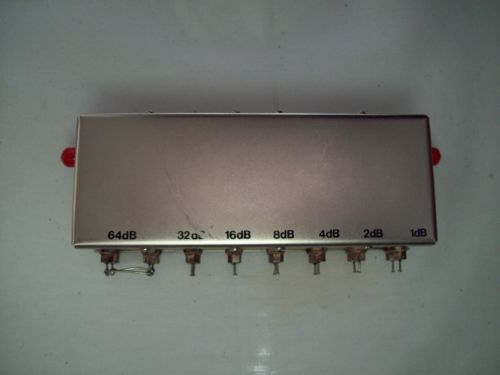

This is a Alan Industries attenuator good for 127dB programmable by applying 26VDC to the terminals. As you can see in the pics it is not used and in great condition other than a smudge on the lettering. Most of the information I could find on it is below so if it is for any particular application.  Any questions please email. Thanks for looking!                     MRC Criteria Characteristic AAFS APPLICATION DESIGN TRANSMISSION LINE AAQL BODY STYLE COAXIAL TYPE ABHP OVERALL LENGTH 5.430 INCHES MAXIMUM ABKW OVERALL HEIGHT 1.390 INCHES MAXIMUM ABMK OVERALL WIDTH 2.030 INCHES MAXIMUM ABWF SCALE LINEARITY NONLINEAR ABWG SCALE DIVISION QUANTITY 127 AEJN DISTANCE BETWEEN MOUNTING FACILITY CENTERS 115.870 INCHES NOMINAL AFGA OPERATING TEMP RANGE -0.0/+55.0 DEG CELSIUS AHUC COAXIAL CONNECTOR SERIES DESIGNATION SMA AKEJ MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR UNC ASYC INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS 1.2 ASYD OVERALL ATTENUATION RANGE IN DECIBELS +0.0/+127.0 ASYF ATTENUATION VARIATION METHOD STEPPED ASYG STEP POSITION QUANTITY 7 ASYH ATTENUATION PER STEP IN DECIBELS 1.0 AXHR MOUNTING FACILITY TYPE AND QUANTITY 2 THREADED HOLE BNGR FREQUENCY RANGE 0.000 HERTZ MINIMUM AND 1000.000 MEGAHERTZ MAXIMUM BQNR OVERALL ATTENUATION ACCURACY IN DECIBELS -0.20/+0.20 BQNS SEGMENT ATTENUATION RANGE IN DECIBELS +0.00/+63.00 CGGK MOUNTING THREAD QUANTITY 32 PER INCH CQTQ ADJUSTMENT DEVICE TYPE AND QUANTITY 16 SLOTTED SCREW CQYJ MOUNTING FACILITY PATTERN TWO POSITION IN-LINE CRYY MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER 0.164 INCHES CTGG IMPEDANCE RATING IN OHMS 50.0 INPUT-OUTPUT TTQY TERMINAL TYPE AND QUANTITY 2 CONNECTOR
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Alan Industries
Model 50DA127-139
