Aluminum Mold Base 7075 8 X10 B Style Prototype Plastic Molding

US $1,389.00

Hamilton, Ohio, United States
Jan 30th

Open on mobile:
QR code

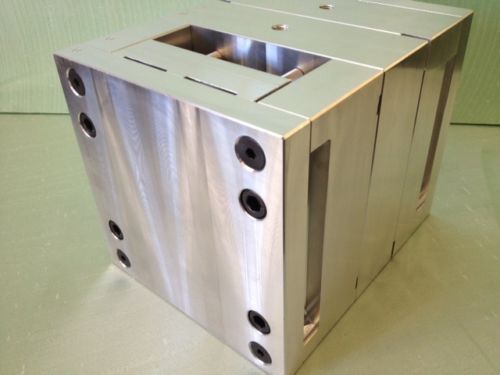

Description 7075 ALUMINUM B STYLE MOLD BASE - Production numbers of over 500,000+ have been reported on 7075 aluminum molds - overall job costs average 40-50% less than steel. Heat and cooling transfer is 5X that of steel. World Class Quality A and B style mold bases – Shipped directly from our shop to yours…. elliminate the middleman!! _________Lowest prices in the USA for aluminum molds!!!_______ The aluminum injection mold base pictured for sale is a precisely machined 8 x 10 B style. A&B plate material is 7075 T6 aluminum – all other parts are 7075 T7. Other dimensions (in inches) are as follows: A plate L x W x H - 8.000 x 10.000 x 2.94 (contact us to quote a different A&B thickness) B plate L x W x H - 8.000 x 10.000 x 2.94 Ejection stroke – 1.7 (higher rails available) Ejector plate thickness - .88 & .50 in x 5.0 wide Clamping plate thickness – .87 Total thickness – 10.64 Qty 4- 3/4 dia. pins -1 pin offset Return Pins .50 dia Approx. weight – 82 lbs ***3d Cad file furnished with purchase*** ….Heat treated Leader pins and bushings….Vented leader pins….Parting line pry slots ….Beveled edges on corners …Ground parting line surface...Return pins installed….Three piece bolted ejector housing….Tubular dowel construction on A style…... .....AND ….Proudly made in the USA. *** Notice that no rest buttons are needed because the ejector plate has been machined with clearance under it. Each plate is square and parallel within .001 and the thickness is parallel within .0015 after assembly and the parting line ground. We are proud to manufacture a high quality, reasonably priced product and will be glad to promptly answer other questions. A dimensional pdf drawing can be downloaded at www.aqmolds.com. We also have other sizes and will send a price list or quote a special size upon request. Please call 513 889 1060 or Email aqmolds1@gmail.com 10% of your purchase will be donated to countries throughout the world to feed the poor,cloth the naked and help the homeless.
