Amp Applied Motion Products Ht23-549 Nema 23 Stepper Motor 167 Oz-in Torque

US $29.00

  • Gurnee, Illinois, United States
  • Jan 29th
Open on mobile:
QR code

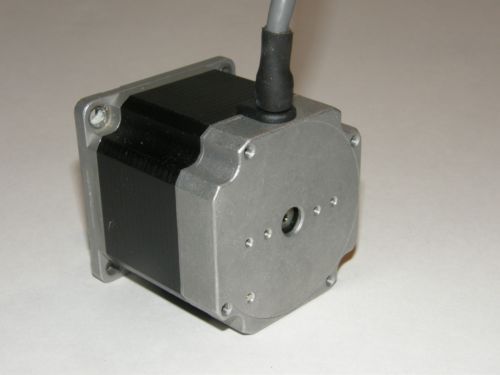

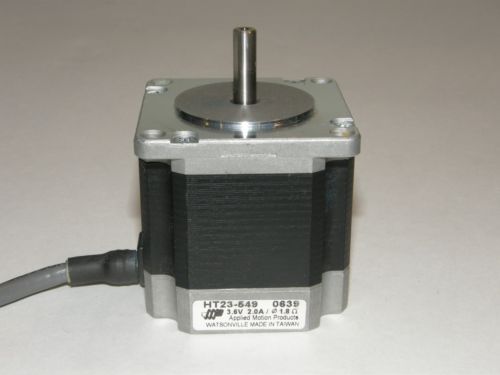

You are bidding for a lightly used Applied Motion Products HT23-549 NEMA 23 stepper motor, 167 oz-in bipolar holding torque, 8 wires, single shaft, 4.5" to 6" long cable. Guaranteed fully functional. Part Number HT23-549 Frame Size NEMA 23 Motor Type High torque Part Number w/Double Shaft HT23-549D Part Number w/Encoder HT23-549D-ZAA Part Number w/Encoder & Cover NA Motor Length 2.17 inches Number of Lead Wires 8 Lead Wire Configuration shielded cable w/ connector Lead Wire/Cable Length 10 feet Lead Wire Gauge 24 AWG Unipolar Holding Torque 118 oz-in Bipolar Holding Torque 167 oz-in Step Angle 1.8 deg Bipolar Series Current 1.41 A/phase Bipolar Series Resistance 3.6 Ohms/phase Bipolar Series Inductance 12.8 mH/phase Bipolar Parallel Current 2.83 A/phase Bipolar Parallel Resistance 0.9 Ohms/phase Bipolar Parallel Inductance 3.2 mH/phase Unipolar Current 2.00 A/phase Unipolar Resistance 1.8 Ohms/phase Unipolar Inductance 3.2 mH/phase Rotor Inertia 3.96E-03 oz-in-sec2 Integral Gearhead No Weight 1.5 lbs Storage Temperature -40 to 70 °C Operating Temperature -20 to 50 °C Insulation Class Class B (130 ?C) Maximum Radial Load NA Maximum Thrust Load NA Shaft Run Out 0.002 inch T.I.R. max Radial Play 0.001 inch max w/ 1.0 lb load End Play 0.003 inch max w/ 1.0 lb load Perpendicularity 0.004 inches Concentricity 0.003 inches
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand Applied Motion Products
MPN HT23-549
