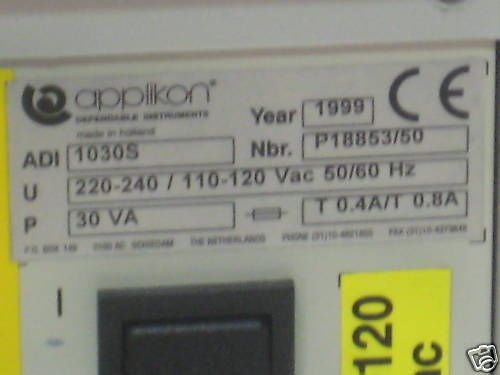

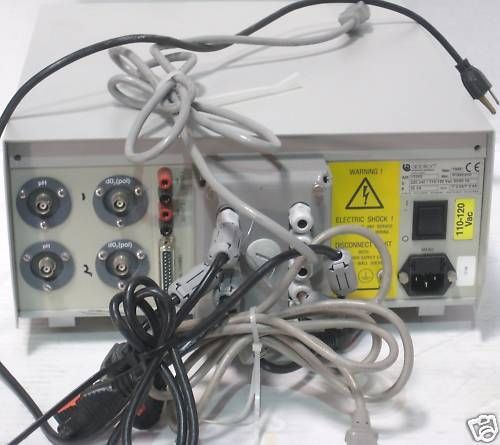

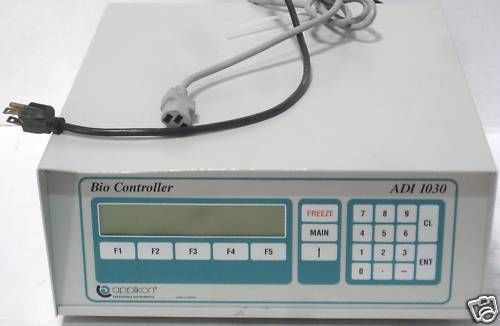

APPLIKON INSTRUMENTS ADI 1030 REACTOR BIO-CONTROLLER This listing is for a bio-reactor control unit. Make: Applikon Instruments Model/ Part#: ADI-1030-S (ADI1030-S) (ADI-1030S) (ADI1030S) Nbr.: P18853/50 U: 220-240/ 110-120Vac 50/60 Hz P: 30VA Description: Bio-Controller for Fermenter System; Bioreactor System Controller Includes all/only items pictured. Here is some information from the manufacturer... The user-friendly ADI 1030 Bio Controller offers accurate process control for a wide choice of parameters and a variety of advanced control strategies. The ADI 1030 Bio Controller is specially designed for process control in bioreactors where the available bench space is limited and flexibility is required. For communication with a computer, the ADI 1030 Bio Controller is equipped with several interfaces, even allowing the system to operate in a network. The user can change the control strategies as the process requirements are changing. Sensor input boards can easily be exchanged with other sensor inputs. The Bio Controller can accommodate up to four sensor inputs. This allows a user specific set-up of the instrument. The sensor boards that are installed can be any combination of the following boards: pH temperature DO2 (polarographic) Foam CO2 MV/Redox Isolated mV/mA The eleven controller outputs consist of nine solid state relays and two analog outputs. The solid state relays can be used to switch pumps, valves, heaters etc. The analog outputs can be used to control variable speed pumps mass flow controllers, stirrer speed controllers or to transmit data to recorders. The input of the controller can be connected to any of the eleven outputs by means of a internal software link. This is an advantage over conventional controllers where inputs are fixed to outputs, allowing no changes afterwards. With the Bio Controller you can control pH in one experiment with an on/off acid and/or alkali pump while during the next experiment pH can be controlled with a variable speed pump and a CO2 mass flow controller using analog outputs. This is simply done by using the function keys of the ADI 1030 to map the input to one or more controller outputs. Control software highlights of the ADI 1030 Bio Controller include: P.I.D. control for all sensor inputs (except foam), Cascading of analog and solid state relay outputs for every sensor input, High and low alarm limits setting (and switching) for every sensor input, Defective sensor protection switches control loops of in the case of faulty sensors, Freeze option to set outputs to a pre-defined status at any moment, Temperature correction for a measured pH value, Time based additions for nutrients and/or anti-foaming agent, Timer outputs, The output cascade enables the user to control one parameter input with a maximum of four separate actuators. With the timer function one can define a delay-time, an ?on?-time and an ?off?-time for each digital output. In addition to the eleven controller outputs, the ADI 1030 Bio Controller is equipped with a bi-directional serial communication port. This port can be used to connect a computer to exchange data with the controller. Three serial communication outputs are available: RS232, for one Bio Controller and one computer, RS422, multidrop, for a maximum of ten Bio Controllers and one computer, RS485, for a maximum of 32 devices which can be Bio Controllers and/or computers. Through these interfaces all data in the BioController can be read and set by a computer. This can either be done directly via the keyboard or via computer calculations (e.g. ramping of setpoints). For supervisory control and data acquisition Applikon offers BioXpert software for Windows 95/98 and NT. Mechanical: Cabinet material Steel, aluminum, painted Enclosure class IP51 (shelf top) Dimensions 153x342x431 mm Shelf top (hxwxd) Weight 11.5 kg Ambient temperature 4 ? 45 ?C Electrical: Power supply 110/120/220/240 V AC, 50/60 Hz Power cables (length) 2 mm Ground separate connection Electromagnetic immunity standardEMV3 (IEC 801-2,801-3) EMC Microprocessor 8085-2, 8 bit, 5 MHz A/D conversion 12 bit RAM realtime clock and program with battery backup automatic restart after power failure Display LCD with backlight, four lines, 40 characters per line Keyboard numeric and function keys Input/Output: Four slots for input amplifiers. Choice of pH, 0 - 14 pH temperature 0 - 150?C DO2 0 ? 100% (polarographic) foam conductivity CO2 0 ? 100% mV / Redox ? 2000 mV mV / mA isolated 0 (4) ? 20 mA 0 (1) ? 5 (10) V Nine on/off outputs (solid state) 220 / 240 VAC, 4 A / 110 / 120 VAC, 4 A Two analog outputs 0 (4) ? 2- mA / 0 (1) ? 5 (10) V, max. load 700 ? Communication port 25 pole D-sub connector Serial communication RS 232 / RS 422 / (multidrop) / RS 485 Welcome to our eBay store! To make your purchase as simple and easy as possible, please refer to the store policies listed below. After winning an item in auction or completing a Buy It Now purchase, you have two check-out options: Check-Out Now! Click the Pay Now button at the top of this listing to immediately proceed with our checkout and payment process. Please note that the Pay Now button is ONLY available after winning an auction or completing a Buy It Now purchase. Check-Out Later If you do not choose to Check-Out now, you will be notified by eBay via e-mail that you are the winning bidder. There is no need to contact us to arrange payment. We will automatically send you an e-mail within three hours of an auction closing. Our message will contain a link to our simple and secure checkout system, where you will be able to quickly and conveniently pay for your purchase. You may also continue purchasing additional items from our auctions or eBay store. You have [5] days from the end of the first purchase to add additional items to your order. Make sure all of your auctions have ended prior to checking out. All of your purchases will be consolidated into one checkout! Payment We accept the following forms of payment. PayPal. Sales Tax For shipments to Arizona addresses, we are required by State law to collect 7.8 % Sales Tax. Shipping All items under 100 lbs will be shipped either USPS or Fedex. Any items over 100 lbs will be shipped freight through a freight carrier of our choice. Customer Service If you have any questions before or after your purchase please use the "Ask a Question" button or Contact us via phone: (480) 980-7581 USA or +1 480-980-7581 International
