Arrow Hart L11-20 Locking Plug Twist Lock 20a 250v 3? Nema L11-20p 6252

US $14.99

Jamestown, New York, United States
Jan 29th

Open on mobile:
QR code

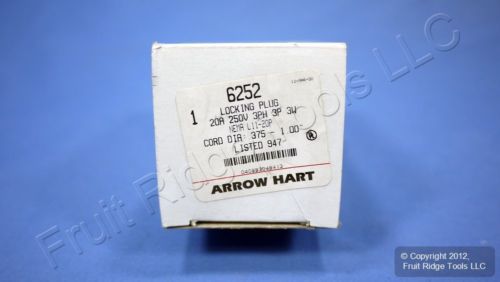

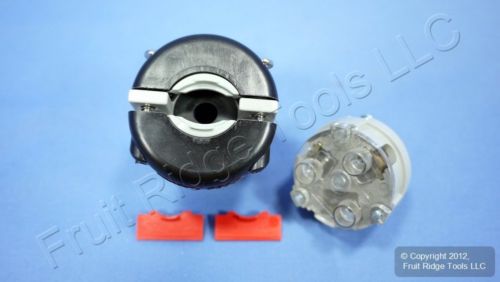

Fruit Ridge Tools, LLC Our eBay Store Contact Us Add to Favorite Sellers Arrow Hart L11-20 Locking Plug Twist Lock 20A 250V 3? NEMA L11-20P 6252 Product Details Quantity in Lot: 1 Brand: Arrow Hart Part Number: 6252 Color: Gray Type: Locking Plug Phase (if applicable) : 3 Phase Poles: 3 Wires: 3 NEMA Number: L11-20P Amperage: 20A Voltage: 250V Grade: Industrial Specification Grade Ground: Non-Grounding Arrow Hart 6252 locking plug. Industrial Specification Grade, NEMA L11-20P, 3-pole, 3-wire, non-grounding, rated 20A 250V 3-phase. Cord grip range: .385"-.780". Terminals accommodate #18-#10 AWG. Each is individually packaged; packaging may differ from photo. Features include:Solid brass blades are fitted and held tightly and securely in place Dead front construction prevents accidental contact with internal partsInternal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position Transparent wiring chambers provide a means of visual inspection of conductors and terminals Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands Color-coded terminal screws Molded-in strip gage provides correct measurement for proper strip length of conductor Terminal identification letters on back cover ensure quick and accurate terminationCaptive terminal screws eliminate nuisance dropping and searching for missing screws Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs. Super tough nylon body resists damage from severe impact, abrasion, and chemical attack Wiring module keyed to body for easy assembly. Deep slotted/Phillips steel screws secure wiring module (12-14 in.-lbs.) to bodyErgonomically designed fluted body with radial gripping ridge creates an ideal surface for gripping, turning, and pullingNEMA configuration, agency certifications, and device rating are molded on front of device to assist with identificationExternal cord clamp utilizes deep slotted/Phillips steel screws that are backed out and positioned inside shrouded pockets to prevent slippage of screwdriver blade when tightening cord clamp screws External clamp accepts wire mesh grips. Strain relief insert is easily removed without removing cord clamp to accommodate larger cords. Cable gage identifies maximum cord size allowed with strain relief insert This is New Old Stock and is returnable for any reason. (SKU # AH6252-EA; Weight: 0.35 lbs.) Need Wallplates? 15A Wallplates (1.406" Diameter) 20A & 30A Wallplates (1.60" Diameter) Additional locking devices and information: Matching L11-20P Plugs, Connectors & Receptacles See All Straight Blade Plugs, Receptacles and Connectors See All Locking Plugs, Receptacles and Connectors

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Arrow Hart
MPN	6252
