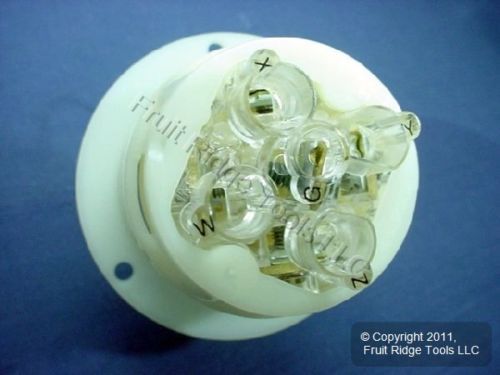

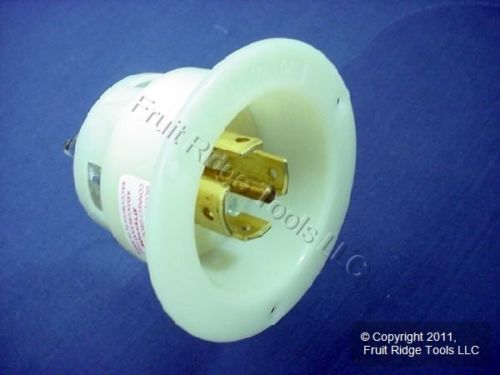

Leviton L23-30 Locking Flanged Inlet L23-30P Plug 30A 347/600V 3?Y 2835, US $23.99 – Picture 0

Leviton L23-30 Locking Flanged Inlet L23-30P Plug 30A 347/600V 3?Y 2835, US $23.99 – Picture 1

Leviton L23-30 Locking Flanged Inlet L23-30P Plug 30A 347/600V 3?Y 2835, US $23.99 – Picture 2

Leviton L23-30 Locking Flanged Inlet L23-30P Plug 30A 347/600V 3?Y 2835, US $23.99 – Picture 3

Leviton L23-30 Locking Flanged Inlet L23-30p Plug 30a 347/600v 3?y 2835

US $23.99

Jamestown, New York, United States
Jan 29th

Open on mobile:
QR code

Fruit Ridge Tools, LLC Our eBay Store Contact Us Add to Favorite Sellers Leviton L23-30 Locking Flanged Inlet L23-30P Plug 30A 347/600V 3?Y 2835 Product Details Quantity in Lot: 1 Brand: Leviton Part Number: 2835 Color: White Type: Locking Flanged Inlet Phase (if applicable) : 3 Phase Y Poles: 4 Wires: 5 NEMA Number: L23-30P Amperage: 30A Voltage: 347/600V Grade: Industrial Specification Grade Ground: Grounding Leviton 2835 locking flanged inlet. Industrial Specifiation Grade, NEMA L23-30P, 4-pole, 5-wire, grounding, rated 30A 347/600V, 3-Phase Y. Each is individually packaged with instructions. Terminals accomodate #18-#10 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Each is individually packaged; packaging may differ from photo. Features include:Solid brass blades are fitted and held tightly and securely in place Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position Transparent wiring chambers provide a means of visual inspection of conductors and terminals Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands Color-coded terminal screws Molded-in strip gage provides correct measurement for proper strip length of conductor Terminal identification letters on back cover ensure quick and accurate terminationCaptive terminal screws eliminate nuisance dropping and searching for missing screws Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs. Super tough nylon body resists damage from severe impact, abrasion, and chemical attack NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification This is New Old Stock and is returnable for any reason. (SKU # L2835-EA; Weight: 0.30 lbs.) Need Wallplates? 15A Wallplates (1.406" Diameter) 20A & 30A Wallplates (1.60" Diameter) Additional locking devices and information: Matching L23-30P Plugs, Connectors & Receptacles See All Straight Blade Plugs, Receptacles and Connectors See All Locking Plugs, Receptacles and Connectors

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Leviton
MPN	2835
