Atlas Esr70 Esr Meter

US $154.95

  • Santa Clara, California, United States
  • Jan 29th
Open on mobile:
QR code

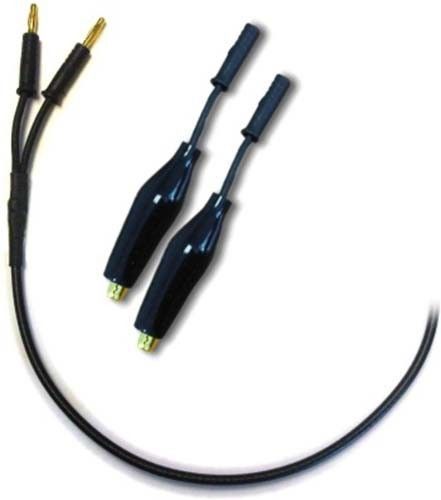

This is the latest Peak Altas ESR70 meter and has features including “Audible Alerts” and an enhanced measurement range. Every measurement of ESR will be shown on the display, but the unit will also produce a variety of tones depending on the value of ESR. And the tones themselves are surprising pleasant, including “Bell-like” pings (a couple of different types for ESR that is below certain values), and also a “Beep-Barp” type tone for ESR that is likely to be too high. There is also a reassuring “Blip” when the measurement has started and completed. The ESR measurement range has also been enhanced, now doubled, measuring from 0 to 40 ohms with a resolution as low as 0.01 ohms. This remarkably fine resolution is great for assessing large capacitors and even allows you to use the Atlas ESR+ for tracing short-circuits and finding the precise area of a PCB that has that invisible wisp of solder. Now includes the new gold plated 2mm plugs and sockets allowing use of different probe types. Supplied with gold plated crocs as standard, others available as an option. Cable length 450mm (18"). Supplied fully assembled, tested and aligned with a factory warrenty, this is an indispensable piece of test equipment for a system designer or product technician! Alltronics Part# ESR70. Datasheet :  http://www.alltronics.com/mas_assets/acrobat/ESR70.pdf. Usage Video :  http://www.youtube.com/watch?v=g5fD72Wc8Dk
