Atmel-ice Atmel Arm Cortex-m Sam Avr Mcu Debugger Programmer Support Jtag Swd Et

US $129.99

Shenzhen, GD, China
Jun 9th

Open on mobile:
QR code

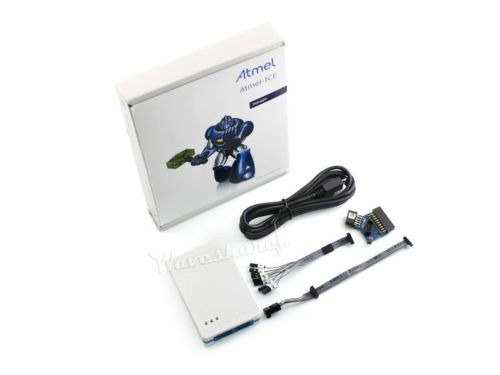

This auction is for Atmel-ICE Powerful development tool for debugging and programming Atmel SAM and AVR microcontrollers Overview Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM® Cortex®-M based Atmel SAM and AVR® microcontrollers with on-chip debug capability. Key Features Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces Full source-level debugging in Atmel Studio Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target) Up to 128 software breakpoints 1.62 to 5.5V target operation USB powered Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out Supported Software Perfectly supports Atmel Studio 6.2 or higher version Directly supports ICC8AVR or higher version Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc. Supported Devices Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces Programming and on-chip debugging of all Atmel AVR XMEGA® family devices on both JTAG and PDI 2-wire interfaces JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces Programming of all Atmel tinyAVR® 8-bit MCUs with support for the TPI interface For more details, please visit http://www.atmel.com/tools/atatmel-ice.aspx?tab=devices Specifications Interface voltage 1.62V ~ 5.5V JTAG clock 32kHz ~ 7.5MHz PDI clock 32kHz ~ 7.5MHz debugWIRE baudrate 4kbit/s ~ 0.5Mbit/s aWire baudrate 7.5kbit/s ~ 7Mbit/s SPI clock 8kHz ~ 5MHz SWD clock 32kHz ~ 2MHz PC interface USB 2.0 high speed Photos Physical Interfaces Atmel-ICE Connection Options Note : While connecting the adapter board to a target, please pay attention to the Pin 1 (indicated by white spot or square solder pad). (1) 10-pin AVR JTAG header (2) 6-pin AVR ISP/debugWIRE/PDI/aWire/TPI header SPI/debugWIRE PDI aWire TPI 10-pin AVR ISP header is also available through our extra free 6-pin to 10-pin ISP cable (3) 10-pin SAM JTAG/SWD header Development Resources Wiki : www.waveshare.com/wiki/Atmel-ICE Package Contains Atmel-ICE unit x 1 USB cable (1.8m, high-speed, micro-B) x 1 Adapter board containing 50-mil AVR, 100-mil AVR/SAM and 100-mil 20-pin SAM adapters x 1 IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x 1 50-mil 10-pin mini squid cable with 10 x 100-mil sockets x 1 6-pin to 10-pin ISP cable (extra free accessory from Waveshare) x 1 1-5 6 Terms & Conditions Payment: · PayPal is the only method of payment that we accept. Shipping: · We ship items to Worldwide! · Please confirm your address in paypal, phone number is also very important. · All items will be shipped within 48 working hours on receipt of cleared payment. · We'll add a tracking number after sending the item so that you can track your parcel. Returns Policy: · We are happy to return any unused item in its original packaging within 14 days of delivery. · Buyers are responsible for the round(two-way) shipping cost. Feedback: · We'll leave POSITIVE FEEDBACK on receipt of cleared payment. · If you're satisfied with the item and our service, please leave POSITIVE FEEDBACK, it's important to us. · Once any problems occured, please contact us first. We'll try our best to work things out. FAQ: · More details(Click) If you have any question, please feel free to contact us. It's our pleasure to serve you! We appreciate your business!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ATMEL
Country/Region of Manufacture	Malaysia
Model	Atmel-ICE
interfaces	JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE
MPN	Atmel-ICE
Software	Atmel Studio 6.2, ICC8AVR or higher version
UPC	712321341389
