Atten Atf20b Signal Generator 20 Mhz Dds Function Waveform Generator New

US $4900

Shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

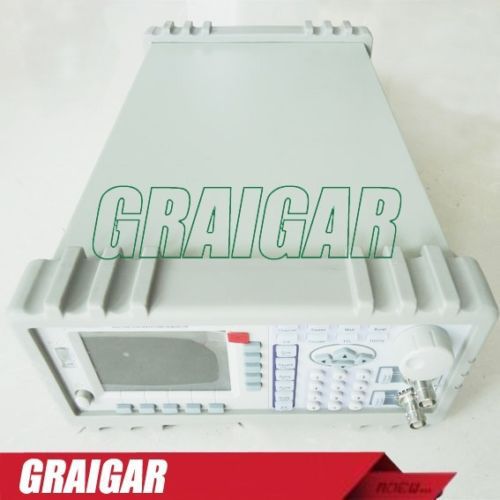

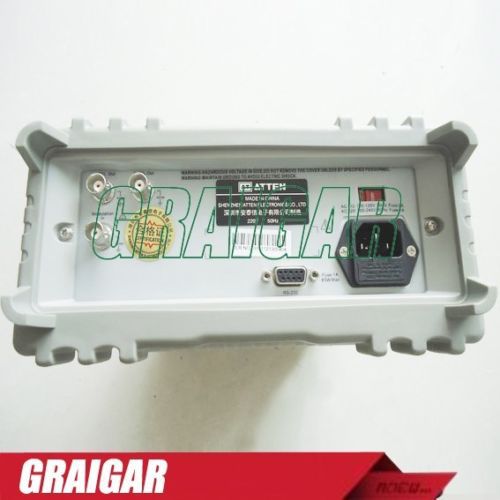

ATTEN ATF20B Signal Generator 20 MHz DDS Function Waveform Generator Overview: ATF20B DDS function generator using digital synthesis technology, with a rapid completion of performance targets required for measurements and numerous features. The simple but clear design and the front panel / English LCD interface allows you more ease of operation and observation, scalable option feature allows you to obtain enhanced system features. FEATURES: ? Direct Digital Synthesis(DDS) technology, 2 independent output channels ? 3.5-inch TFT LCD display ? High Frequency Resolution: full-range resolution is 40 MHz ? Store 40 sets of the user parameters and recall ? 32 kinds of standard or build-in fixed waveforms ? Minimum stable output waveform: 1mV(50) ? Multiple modulation functions: FM, FSK, ASK, PSK ? Frequency sweep, amplitude sweep and burst functions ? Count the frequency, period, amplitude RMS value or peak-to-peak value ? Over-voltage, over-current, output short-circuit and reverse voltage protections ? High reliability: use VLSI components and surface mount technology ? Power Amplifier: optional part, maximum output power up to 7W ? Optional configurations: RS232 interface, Frequency Counter, Power Amplifier WAVEFORM Waveform type 32 kinds, such as Sine, Square, Triangle, Pulse etc Waveform length 1024 points Sample rate 100 MSa/s Vertical resolution 8 bits Harmonic rejection (sine) 40dBc (< 1MHz), 35dBc (1MHz~20MHz) Total distortion(sine) 1% (20Hz ~ 200kHz) Rise/fall time of square 35ns Overshoot 10% Square duty cycle 1% ~ 99% FREQUENCY Frequency range 40mHz ~ max. frequency(sine) , 40mHz ~1MHz(other waveforms) Frequency Resolution 40mHz Frequency Accuracy ± (50ppm+ 40mHz) AMPLITUDE Amplitude range :2mVpp ~ 20Vpp 40mHz~10MHz (high impedance) 2mVpp ~ 15Vpp 10MHz~15MHz (high impedance) 2mVpp ~ 8Vpp 15MHz~20MHz (high impedance) Amplitude Resolution :20mVpp (amplitude>about 2 Vpp), 2mVpp (amplitude<about 2Vpp) Amplitude Accuracy ± (1%+2mVrms)( high impedance,1kHz,sine) Amplitude Flatness ±5% (<10MHz), ±10% (>10MHz) Amplitude stability ± 0.5%/ 3 hours Output impedance 50 OFFSET Offset Range ±10V (high impedance, attenuation 0dB) Offset Resolution 20mVdc Offset accuracy ±(1% + 20mVdc) SWEEP Sweep Type Linear sweep or frequency or amplitude Sweep range free to set the start and stop points Sweep step larger than any figure of the resolution Sweep rate 10ms~60s/step Sweep mode Up, Down, Up-Down, Single SHIFT KEYING FSK free to set the carrier and hop frequency ASK free to set the carrier and hop amplitude PSK Hop Phase: 0 ~ 360°, Max. resolution: 1° Alternate rate 10ms ~ 60s BURST Burst count 1~65000 cycles Burst mode internal, external, single TTL Output Characteristics: TTL Waveform rise/fall time 20ns (square) Frequency 40mHz ~ 1MHz Amplitude TTL,CMOS compatible, low level <0.3V,high level >4V GENERAL CHARACTERISTICS: Power Supply: AC220V (1±10%) / AC110V (1±10%) (Pay attention to the voltage selection on rear panel) Frequency:50Hz (1±5%) Power Consumption: < 45VA Operating Temperature: 0°C to +40°C Operating Humidity: 80% R.H Operation Characteristics: Keypad operation and rotary knob operation Dimensions: 415mm x 295mm x 195mm Display: TFT display, 320*240 Weight: 3.5kg Packing list: 1 x Signal Generator 1 x USB wire 1 x powe cord 1 x Manual PAYMENT INFORMATION: 1.We can accept Credit Cards,Paypal,T/T,Escrow and so on. 2.The buyer is responsible for any tax and/or duty charged by their country. INTERNATIONAL SHIPPING: The package will be shipped by DHL, FEDEX or EMS. After we shipped the parcel,we'll fill in the tracking number and inform you by e-mail.Please write the correct address and telephone number when you make orders,so the courier can contact you when they deliver the parcel to you. thanks WARRANTY INFORMATION: 1.All the products have been checked and packed in good condition before dispatch. 2.All the products with one year warranty. 3.If you find any quality problems,please send it back within 3 days,and we'll send you a new one or refund you the payment after we get the returned one. 4.Buyers have to pay for the return cost and we will pay the cost for resend 5.All products returned should be in new conditions. CONTACT US: Office Tel: 008675527541660 Cellphone: 008615967476818 1.A good feedback is very important for our store,if you feel satisfied with our products,please give us positive feedbacks. 2.Please contact us before leaving any negative or neutral feedback,We will work with you to solve any problems.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ATTEN
Country of Manufacture	China
Model	ATF20B
