Avcom Portable Spectrum Analyzer Psa-37d -- new Batteries

US $488.88

Santa Fe, Texas, United States
Jan 29th

Open on mobile:
QR code

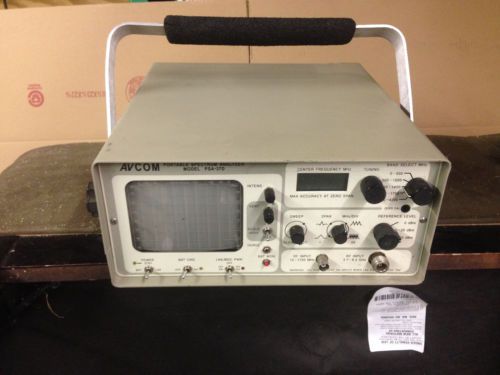

You are looking at a: Avcom PSA-37D Portable Spectrum Analyzer (NEW BATTERIES) Overview: The PSA-37D covers the entire CATV, Broadcast, Satellite, and Wireless Network frequency ranges from 1 MHz to 4.2 GHz. The unit has a ± 2 dB amplitude accuracy which makes this the perfect analyzer for the field technician or for testing and setting head-end levels. Independent span and resolution bandwidth makes it easy to either look at the whole band or pinpoint a particular frequency or channel. No AC/No Problem! Battery power (and a built in charger) lets you work right at the antenna; no need for extension cords. You can also run or charge on vehicle or line power. THE PSA-37D has a built in DC Block with +13/18 VDC & 22 KHz for powering LNAs and LNBs. Technical Specifications: Frequency Coverage: 1 - 1100 MHz, 950 - 2150 MHz, 2100 - 3200 MHz, 3200 - 4200 MHz, Extendable with MFC’s to 18 GHz Frequency Display: LCD 2 Line Display with Center Frequency & Span Start/Stop Span: Greater than 1 GHz - 0 Resolution Bandwidth: 300 kHz RF Sensitivity: Greater than -90 dBm Typical Reference Levels: 0, -20, -40 dBm / +49, +29, and +9 dBmv Scale: 2dB/Div. & 10 dB/Div. Amplitude Accuracy: ± 2 dB Typical Per Band Dynamic Range: 65 dB On Screen Input Connectors: BNC & N, DC Blocked, 50 Ohm, BNC/F Adapter Included LNB Power: +13/18 VDC & 22 KHz Signal Maximum Input: +10 dBm @ 0 dB Ref. Level; -30 dBm @ -40 dB Ref. Level Size/Weight: 11.5” W x 5.5”H x 13. 5” D/17 lbs, (29.2cm x 14cm x 34.2cm/ 7.72 kg) Power Requirements: 85 - 265 VAC 50/60 Hz, 12VDC, Vehicle Power Cable Included; Internal Batteries & Charger; Sealed Gel Cell PS-630/UB-634 Display: 5” Diagonal CRT Green Phosphorous Thanks 4 L00king!!! The

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“This unit is used but works and functions to manufacture's specifications. It has some minor scratches from normal field use. (see photos) The unit pictured is the exact unit you will receive upon completion of sale.”
