BCP/JDSU 320A-33ST Optical Laser O-E Receiver 1550 nm 3 GHz, JDS Uniphase, US $1,999.99 – Picture 0

BCP/JDSU 320A-33ST Optical Laser O-E Receiver 1550 nm 3 GHz, JDS Uniphase, US $1,999.99 – Picture 1

BCP/JDSU 320A-33ST Optical Laser O-E Receiver 1550 nm 3 GHz, JDS Uniphase, US $1,999.99 – Picture 2

Bcp/jdsu 320a-33st Optical Laser O-e Receiver 1550 Nm 3 Ghz, Jds Uniphase

US $1,999.99

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

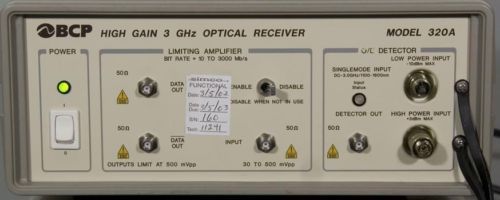

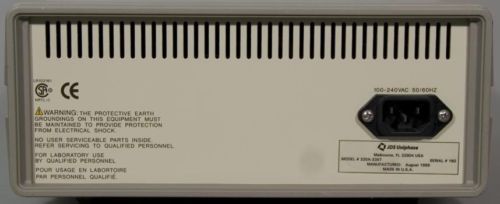

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! BCP (Broadband Communication Products) now JDS Uniphase 320A-33ST High Gain 3 GHz O/E Optical Receiver for 1550 nm Wavelength Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from a BCP/JDS Uniphase and may vary slightly due to upgrades, options, or revisions this unit may or may not have. The unit is Intel surplus. The unit powers up but we do not have the ability to formally test it. Guaranteed non DOA. Link to the 320A Manual: BCP/JDS Uniphase 320A O/E Receiver Manual The Receiver's Serial Number Tag Reads: Model Number: 320A-33ST Serial Number: 160 Manufactured: August, 1999 320A Receiver Key Features: Detector bandwidth DC 3 GHz High O/E gain (2500 V/W) Limiting amplifier included No gain or offset adjustments needed 320A Application: O/E conversion for transmitter testing 320A Receiver Description: The receiver detects and converts optical signals into electrical signals for the purpose of transmitter waveform analysis and testing, including error rate testing. It is optimized for analysis of high-speed, low-level optical signals from single-mode fiber sources. The high bandwidth (3 GHz) and high gain (2500 V/W) enable detection and analysis up to 2.5 Gb/s signals at levels down to below -30 dBm. The receiver is also equipped with a high-level input port for direct connection of laser sources at power levels up to +3 dBm without overload. The Model 320A 3 GHz O/E Receiver is the one solution that provides users with a low-cost, high-quality instrument for optical eye pattern analysis and testing at low to high power levels. The receiver consists of a 3 GHz bandwidth optical-to-electrical (O/E) converter (1100 to 1600 nm) and a 3 Gb/s limiting amplifier. The detector out port for the O/E converter is DC coupled and automatically nulled to < ±100 µV DC. The nulling is automatically performed when the receiver does not have an optical input. 320A Performance Specifications: O/E Detector Section: High Power Optical Input: 1.0 mW (0 dBm) maximum Low Power Optical Input: 200 µW (-7 dBm) maximum Bandwidth (-3 dB): DC to 2.5 GHz minimum, 3.0 GHz typical Maximum Conversion Gain1: 2000 V/W minimum, 2500 V/W typical. For lower power input; reduces as average input power increases. Wavelength: 1200 to 1600 nm; InGaAs APD detector Fiber Interface: 9/125 µm single-mode Optical Input Connector: Diamond universal screw-on adapter Input Optical Return Loss: 30 dB minimum, 1310/1550 nm Minimum Detectable Signal2: Low Power Input: 100 nW (-40 dBm) High Power Input: 2000 nW (-27 dBm) Polarity: Non-inverting (high input = high output) DC Offset, Detector Out: Automatically nulled to < ±100 µV DC; automatic nulling is enabled when optical input power is removed Overload Indicator (Flashing Red LED): Alarms at approximately 0.2 mW to indicate possible output overload distortion Limiting Amplifier Section: Limiting Amplifier Input: 1.0 V peak-to-peak (pp) maximum Bit Rate3: 0.01 to 2.5 Gb/s minimum, 3.0 Gb/s typical Gain3: 24 dB minimum, 26 dB typical Rise/Fall Times: 150 ps maximum, 20 to 80%, when in limiting region with 50 ohm termination Return Loss (50 ohm): Input: 10 dB minimum, frequency < 2 GHz Output: 10 dB minimum, frequency < 2 GHz Output Amplitude: 0.45 Vpp minimum, 0.60 Vpp typical when in limiting region with 50 ohm termination Input Level for Full Limiting: 30 mVpp minimum, 500 mVpp maximum Notes: 1: Gain self-adjusts to protect the sensitive avalanche detector. 2: The minimum detectable signal is the minimum optical input power required for unity output peak-to-peak signal-to-root-mean-square (RMS) noise ratio, measured in the full detector bandwidth. 3: Below limiting, the amplifier performs as a normal linear amplifier. Response is not guaranteed in the non-limiting linear region. 320A Receiver General Specifications: Electrical: Input Voltage: 100 to 240 VAC, 50 to 60 Hz Power Consumption: 25 W maximum Electrical Input Connectors: Female, SMA Physical: Dimensions: 10.13" W x 4.54" H x 10.39" D (25.7 x 11.5 x 26.4 cm) Weight: 6 lbs. (2.7 kg) - does not include packaging for shipping Environmental: Operating Temperature: 10°C to 40°C Storage Temperature: -20°C to 70°C Humidity: 95% RH from 10°C to 40°C non-condensing For More Pictures Please Click the Following: Picture 2 - Front View Picture 3 - Back View Picture 4 - Serial Number Tag For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $15.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? For all international customers, the following terms and conditions shall apply: These commodities, technology, or software are to be exported from the United States in accordance with Export Administration Regulations. Diversion contrary to U.S. law is prohibited. Domestic customers must also agree to the following terms and conditions: For items shipped within the United States, MHz Electronics, Inc's performance shall occur entirely within the United States. Unless expressly agreed to by MHz Electronics, this shall not be a routed party transaction. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 06/16/09 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“The unit is Intel surplus. The unit powers up but we do not have the ability to formally test it. Guaranteed non DOA.”
