Belden 9552 18/2 Pair Shielded Power Limited Tray Cable. 300v. 1000' Reel.

US $500.00

New York, New York, United States
Jan 29th

Open on mobile:
QR code

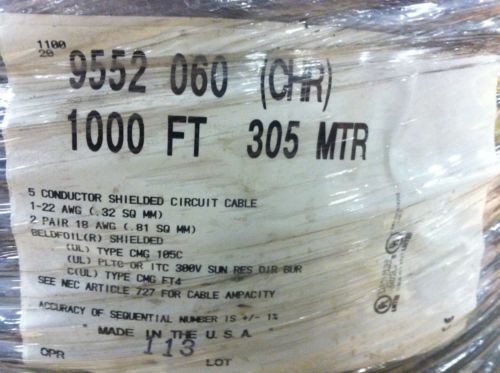

You are bidding on a 1000' reel of Belden 9552 Cable. This is a 18 awg 2 pair + 18 awg drain wire Shielded Power Limited Tray Cable. This wire has a Chrome (Gray) jacket. Please email me with any questions. Description: 18 AWG pairs stranded (19x30) tinned copper conductors, twisted pairs, PVC insulation, overall Beldfoil® shield (100% coverage), PVC jacket. Physical Characteristics (Overall) Conductor AWG: # Pairs AWG Stranding Conductor Material 2 18 19x30 TC - Tinned Copper Insulation Insulation Material: Insulation Material PVC - Polyvinyl Chloride Outer Shield Outer Shield Material: Outer Shield Trade Name Type Outer Shield Material Coverage (%) Beldfoil® Tape Aluminum Foil-Polyester Tape 100 Outer Shield Drain Wire AWG: AWG Stranding Drain Wire Conductor Material 18 7x26 TC - Tinned Copper Outer Jacket Outer Jacket Material: Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride .042 Outer Jacket Ripcord: Yes Overall Cabling Overall Cabling Lay Length & Direction: Direction Left-hand Lay Overall Nominal Diameter: 0.368 in. Pair Pair Color Code Chart: Number Color 1 Black & Red and Numbered 1 2 Black & Red and Numbered 2 Mechanical Characteristics (Overall) Operating Temperature Range: -30°C To +105°C UL Temperature Rating: 105°C Bulk Cable Weight: 59 lbs/1000 ft. Max. Recommended Pulling Tension: 65 lbs. Min. Bend Radius (Install)/Minor Axis: 3.700 in. Page 1 of 3 Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 9552 Multi-Conductor - 300V Power-Limited Tray CableApplicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: PLTC, ITC, CMG CEC/C(UL) Specification: CMG EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes Flame Test UL Flame Test: UL1685 FT4 Loading C(UL) Flame Test: FT4 IEEE Flame Test: 1202 ICEA Flame Test: T-29-520 Suitability Suitability - Indoor: Yes Suitability - Outdoor: Yes Suitability - Burial: Yes Sunlight Resistance: Yes Plenum/Non-Plenum Plenum (Y/N): No Surface Printing (Overall) Surface Printing: LEGEND: BELDEN 9552 E34972 2PR 18 SHIELDED (UL) CMG 105C OR PLTC OR ITC SUN RES DIR BUR OR AWM 2464 80C 300V OR C(UL) Electrical Characteristics (Overall) Nom. Inductance: Inductance (µH/ft) .17 Nom. Capacitance Conductor to Shield: Capacitance (pF/ft) 54 Nom. Capacitance Conductor to Conductor: Capacitance (pF/ft) 35 Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/1000 ft) 5.96 Nominal Outer Shield DC Resistance: DCR @ 20°C (Ohm/1000 ft) 9 Max. Operating Voltage - UL: Voltage Page 2 of 3 Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 9552 Multi-Conductor - 300V Power-Limited Tray Cable300 V RMS (PLTC CMG) 150 V RMS (ITC) Max. Recommended Current: Current 6.4 Amps per conductor @ 25°C FREE SHIPPING!! Please note that sales tax will be added to the following states: AZ, AR, CA, CO, CT, FL, GA, ME, MD, MN, NE, NV, NJ, NY, OH, PA, SD, TX

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Belden
MPN	9552
