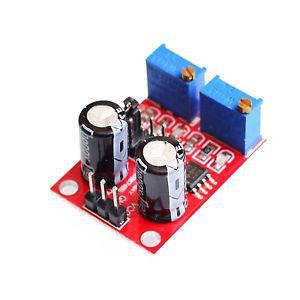

CJRSLRB NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal..., US $3000 – Picture 0
CJRSLRB NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal..., US $3000 – Picture 1
CJRSLRB NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal..., US $3000 – Picture 0
CJRSLRB NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal..., US $3000 – Picture 1

Cjrslrb Ne555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal...

US $3000

  • US, United States
  • Nov 5th
Open on mobile:
QR code
CJRSLRB® NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator Product Features The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency; Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes). Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different) Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around; Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%). Product Specifications Brand: CJRSLRB Item Weight: 0.3 ounces Product Dimensions: 5.9 x 4.1 x 0.6 inches Manufacturer Part Number: 000329 Folding: No Shipping Weight: 0.3 ounces Date First Available: December 25, 2015 Why Buy From JandJ Ultra? Highly Trusted Seller Over 99.7% Positive Feedback FAST Shipping and Tracking HUGE Discounts Excellent Returns Policy The BEST Customer Service Shipping & Returns We Ship International! 14 Day Money Back Return Policy Items Ship within 24-48 Hours Product Description Choosing CJRSLRBR® Feels Fantacy !!! We are the owner of patent and trademark of CJRSLRB®. We did not allowed resell license or authorize other seller to resell CJRSLRB® products. Size: 31mm 22mm; Main chip: NE555; Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around; Input current: >=100MA Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different) Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%) Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes); The output requency range is selectable: LF file: 1Hz ~ 50Hz IF file: 50Hz ~ 1kHz High-frequency file: 1KHz ~ 10kHz HF file: 10kHz ~ 200kHz Package Included: 1 X NE555 Module Thank You For Your Business!
