Cnc Dc 20v/2a Power Supply Module Step Down Regulator+lcd Voltmeter/ammeter

US $40.52

Guang Zhou, China
Jan 29th

Open on mobile:
QR code

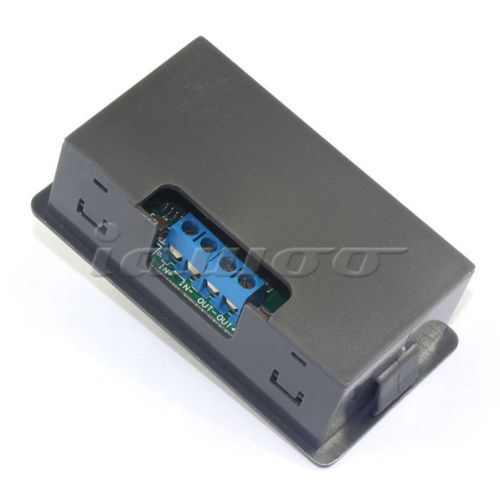

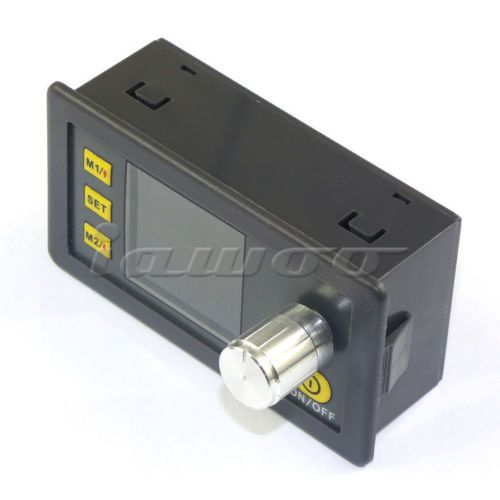

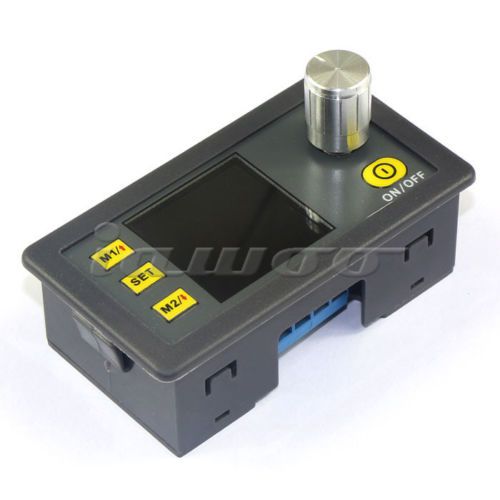

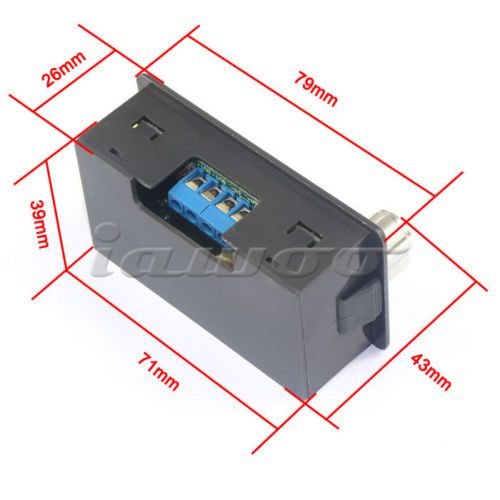

CNC DC 20V/2A Power Supply Module Step Down Voltage Regulator+LCD Voltmeter/Ammeter #100197 Product Description Technical parameters: Dimension: 79mm*42mm*26mm (L*W*H) Open size: 71mm*39mm Output current :0-2.00A Output power : Max 40W Ripple frequency: About 330 KHz Input voltage range : 4.5-23V ( please make sure input voltage below 23V) Output voltage range : 0V-20.0V( Step down mode, input voltage must be higher than 3V), the control button can fast display 2 sets data. Ripple peak to peak value : 50mv (typical value) Display introduction: U-IN: input voltage U-SET: preset voltage U-OUT: output voltage I-SET: Preset current I-OUT: output current POWER: output power M-PRE: shortcut store LED: background brightness M1: shortcut store1 M2: shortcut store 2 S-MD: setting the mode R-MD: normal operation ON/0FF: open/shut down the module output Key function instruction: SET: Function setting, function confirmation; M1/↑: Shortcut extract M1 stored data/Upturning to choose/shortcut store. M2/↓: Shortcut extract M2 stored data/Page down to choose/shortcut store ON/OFF: open or close voltage output. Operating instructions: Adjusting preset voltage: Pressing SET button, page down to U-SET, press the codding potentiometer, then enter to adjust numeric value. Press codding potentiometer in turn to choose the numeric value you want to adjust. Turn codding potentiometer to adjust the numeric value. If you want to exit adjusting voltage, press shortly SET. In the process of adjusting preset voltage, if you open output voltage mode by pressing the ON/OFF, the output voltage will be refreshing by increasing or decreasing the numeric value; if you close output voltage mode by pressing the ON/OFF, the output voltage will not be refreshing by increasing or decreasing the numeric value. Adjusting preset current: Pressing SET button, page down to I-SET, press the codding potentiometer,then enter to adjust numeric value. Press codding potentiometer in turn to choose the numeric value you want to adjust. Turn codding potentiometer to adjust the numeric value. If you want to exit adjusting current, press shortly SET. Power-down storage: If you want to use the present value including the preset voltage, the preset current, LCD brightness at the next time of using the module, you should store those value. In the normal operating(R-MD), Keep pressing SET key until "MEMO" in red appears on LCD display, and then loose the key, indicating the preset voltage has been stored. You can use those value next time. Extract Shortcut storage value:When the system is the mode of setting mode( S-MD), Keep pressing M1/↑ or M2/↓ key, Shortcut storage value can be extracted. Store shortcut storage value: Pressing SET button, page down to M-PRE, press the codding potentiometer, then enter the storage place of M1 or M2. In the meaning time, press shortly M1/↑ , the value would be stored in the place of M1; press shortly M2/↓, the value would be stored in the place of M2. If you want to exit this mode, press shortly SET Adjusting background brightness: Pressing SET button, page down to the place of background brightness, press the codding potentiometer, then enter to adjust numeric value. Press codding potentiometer in turn to choose the numeric value you want to adjust. Turn codding potentiometer to adjust the numeric value. If you want to exit this mode, press shortly SET. Note: When you do not use the module or adjust the preset voltage or current, the output will be advised to be closed in case of wrong operation of high voltage to burn the load. Make sure that the setting voltage is lower than output voltage 3v at least, or else there will be alarm. The input voltage must be under 23v and 23v is the highest Voltage. Please leave adequate leeway, otherwise burn it. When the input voltage drops and cannot satisfy that the input voltage is higher the preset voltage about 3v, the module will automatically shut down output to prevent the module damage. If the module is used under strong sunshine, the LCD will be damaged. So we do not advise you to use the module under strong sunshine. When the module is used at full capacity, please pay attention to keep ventilation and heat dissipation of the module. Please don't use the module to charge the battery. If the input end is not supplied the power, reverse voltage of the battery will damage the module. {if you must use the module ,please add a diode in the output } Package include: 1x Digital Power Supply Module Payment Method We accept only Paypal for both domestic and international. We will ship to the shown address on you PAYPAL Payment notice,Please confirm your shipping address in the PayPal Account. If buyer want to delay the payment because of financial problem, please contact me by the ebay message within 3 days. Shipping Detail Ship by Post Air-mail within 3 working days after full payment is received. The shipment usually takes 15-45 business days to Worldwide. We also provide international Expressed delivery such as EMS, DHL and UPS,extra shipping fees is needed. The shipping time may vary, depends on receiver's location. Feedback Policy We will leave positive feedback to buyer as soon as buyer pays for the item. Leaving Negative feedback or Netural Feedback is never a good way to resolve problem .We hightly appreciate that you can contact with us before you leaving Negative feedback or Neutral feedback .We will offer help to resolve your problems as fast as possible. Customer Service Work Time If you have any questions,Please contact with us via eBay message or our customer service e-mail . please be advised that e-mails will be replied by our customer services officers Mon. - Fri. 11:00 - 20:00 and Saturdays 11:00 – 15:00(Excluding Weekends and Public Holidays) You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Engineered for professional eBay sellers! On Nov-26-14 at 10:48:51 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Dimension	79mm42mm26mm (LWH)
Ripple frequency	About 330 KHz
Open size	71mm*39mm
Output voltage range	0V-20.0V
Output current	0-2.00A
Ripple peak to peak value	50mv (typical value)
Output power	Max 40W
