Dc Buck Converter Lm2596 Voltage Regulator Led Voltmeter 36v To 24v 12v 5v 3.3v

US $5.40

Guangzhou ,Guangdong, China
Jan 29th

Open on mobile:
QR code

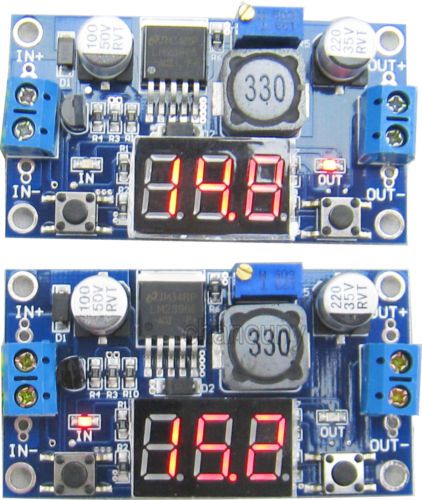

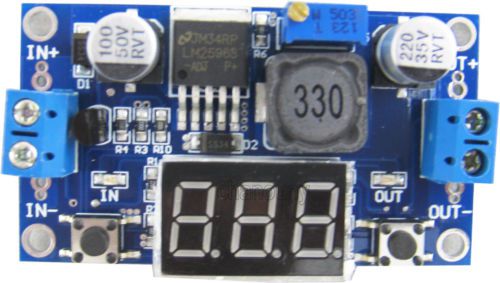

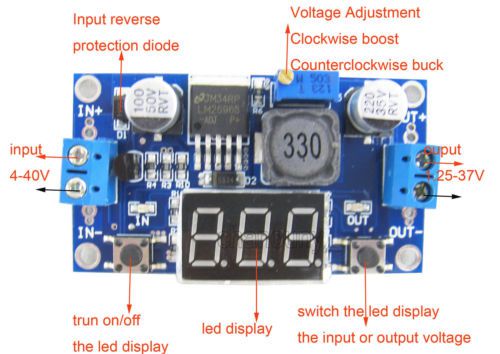

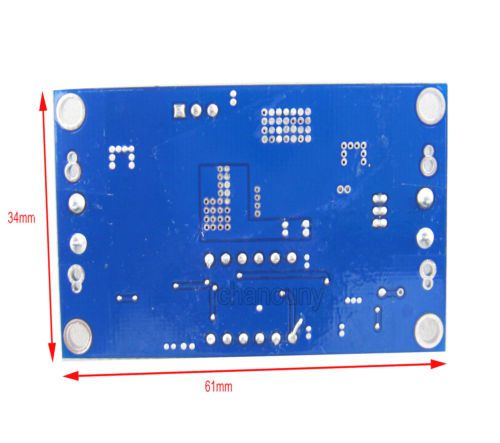

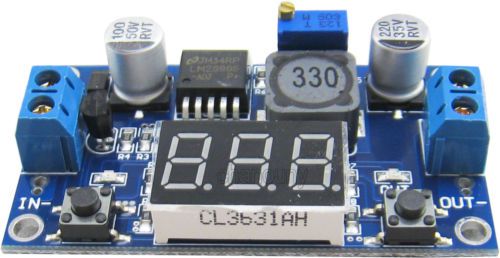

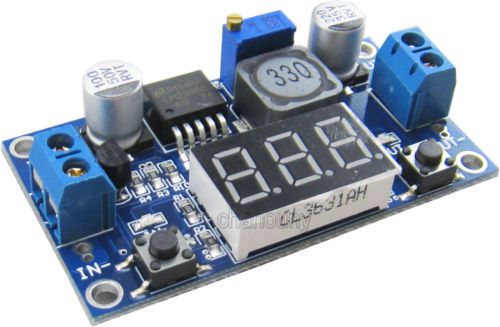

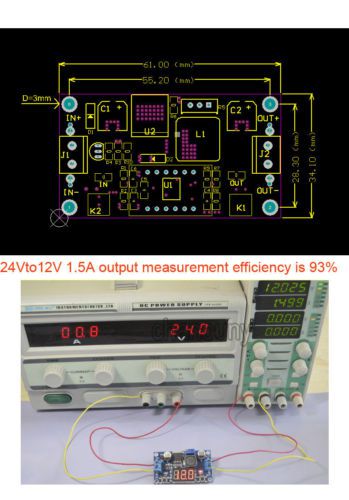

welcome to our shop! Description 64.0-40V to 1.25-37V LM2596 DC to DC Converter step-down buck power supply Voltage Regulator LED voltmeter #1400206 Input voltage: DC4.0 -40V Output voltage range: DC1.25V-37V adjustable Output Current: 2A Output Power: 15W input with reverse polarity protection Output short circuit protection Voltmeter can adjustable accurate. Voltmeter Range: 0 ~ 40V, ± 0.05V error Dimension: 6.1 * 3.4 * 12cm (L * W * H) press the key to switch the input or output voltage measurement, OUT indicator shows the output voltage, IN indicator shows the inputput voltage. Onboard voltage meter self-calibration method: 1.when voltmeter shows the output voltage, Press the right button for 2 seconds,Voltmeter and the output voltage indicator "OUT" Synchronous flashing, At this point enter the output voltage adjustment mode; when the input voltage voltmeter displays, Press the right button for 2 seconds Voltmeter and an input voltage indicator "IN" Synchronous flashing, At this point enter the adjustment mode input voltage; 2.press right button, Voltage rise, press the left button, Voltage reduction; Since the voltage is less than the value of a unit of 0.1V, So you need to continuously press 1-5 times to see voltmeter changed 0.1V, Specific continuous button several times depending on the current display voltage, the higher the voltage, the fewer the number of press. 3. After the voltage adjustment is completed, Long press the right button two seconds after the release, You can now exit the voltage calibration mode, All parameter settings are saved automatically power down. Note: Some customers report: ". The module can not be adjusted, the output voltage is always equal to the input voltage" When you encounter this problem, please counterclockwise rotation of the potentiometer 10 laps or more, then you can adjust the output voltage Because. the factory default output voltage is 20V. packing including: 1x DC Converter Payment We only accept payments via paypal. All payments must be prepaid, no Cash and COD payment. We will ship the item to the address on your paypal payment notice, Please confirm your shipping address in the PayPal Account. If you have any problem about payment , please contact us. Delivery details Item will be shipped within 3 working days after full payment is received. We ship worldwide with flat rate shipping by post Air mail, the shipment usually takes 15-45 business days . We can also provide express post by EMS(5-8 days) or UPS(4-5 days). The cost is higher than standard postage, extra shipping fees is needed. if you need express post please contact us ! About us We will leave positive feedback to buyer as soon as buyer pays for the item .Your satisfaction is our first priority. Please leave us positive feedback upon satisfaction of the item. Please email us before leaving negative and neutral feedback. We will try our best to solve the issue. We will leave positive feedback to buyer as soon as buyer pays for the item . Contact us we do try respond as quickly as possible. Due to time zone difference, please allow 12~24 hours to get your mail replied. If you have any questions, Please contact with us via ebay message or our customer service e-mail .thanks for your buying ,wishes you have a happy shopping from our shop ! Engineered for professional eBay sellers! On Nov-26-14 at 10:37:51 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	module name	DC Buck Converter
output range	DC1.25V-37V
Model	LM2596
Output Current	2A
Input voltage	DC4.0 -40V
