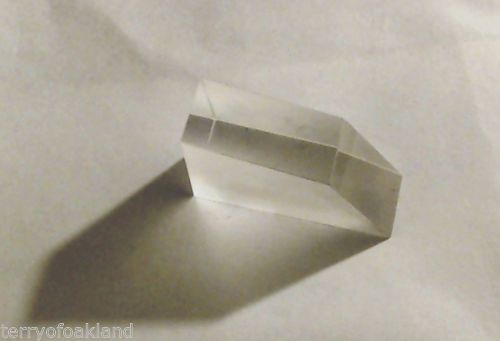

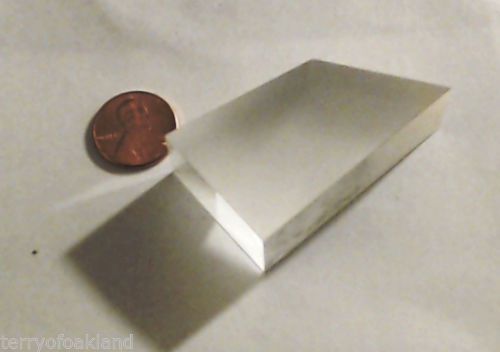

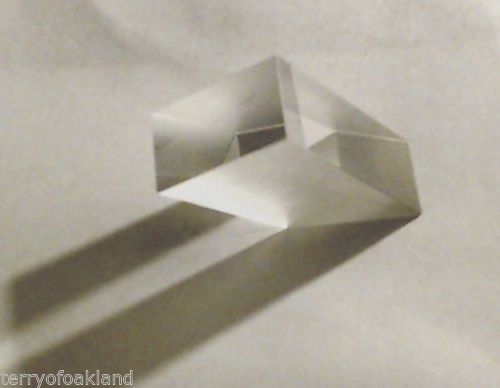

Cvi Pellin Broca Prism

US $200.00

  • Oakland, California, United States
  • Jan 30th
Open on mobile:
QR code

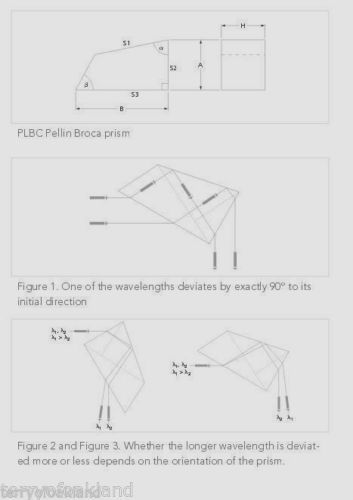

You are purchasing one Pellin Broca Prism Pellin Broca prism for wavelength separation or routing beams 90°; Deviates a single wavelength by 90° relative to the input beam;  CVI's price > $1,400.00 Please make a offer - there is good chance I will accept it. The  Pellin Broca Prism have no burns and no chips This Pellin Broca Prism is returnable for full refund as long as its in the exact same condition as when sold to you and it has been no longer then 14 days from the date you received the item in the mail. Optical Material        A(mm)        B(mm)    H(mm)    Aperture(mm)    ?          ? Fused Silica             30.0           52.0        25           22                    79.5°    60°     In a Pellin Broca prism, an ordinary dispersing prism is split in half along the bisector of the apex angle. Using a right-angle prism, the two halves are joined to create a dispersing prism with an internal right angle bend obtained by total internal reflection. See Figure 1. Photo 2 A simple dispersing prism always deviates the longer wavelength less than the shorter wavelength. In a Pellin Broca prism, whether the longer wavelength is deviated more or less depends on the orientation of the prism. This is an important consideration when designing a high power Pellin Broca beam separator. This is illustrated in Figures 2 and Figures 3. Photo 2 Ideal for 90? wavelength deviation or beam separation UV-grade fused silica for 240 to 2000 nm. Specifications CVI Product Code:          PLBC Optical Material:               UV-grade fused silica Surface Figure:                 ?/10 p-v at 633 nm over clear aperture Surface Quality:               10-5 scratch and dig on three polished surfaces Dimensional Tolerance:    +0/–0.25 mm Angular Deviation:            ?:±30 arc min ? :±2° Chamfer:                          0.35 mm at 45° (typical) Clear Aperture:                >=85% of central dimension Damage Threshold:          15 J/cm2 , 20 nsec, 20 Hz @ 1064
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “cube is burn free; in original packaging”
