Dahlke Dredge Micro 4b Gold Dredge

US $3,795.00

Sealy, Texas, United States
Jan 30th

Open on mobile:
QR code

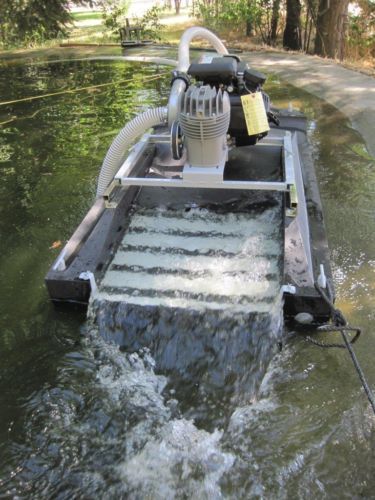

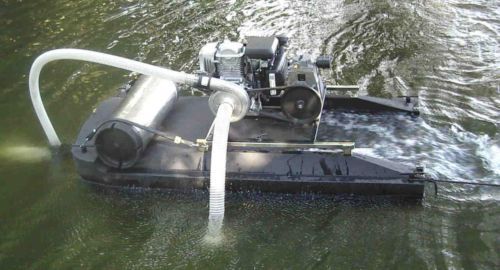

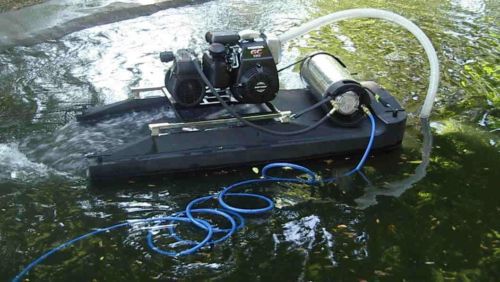

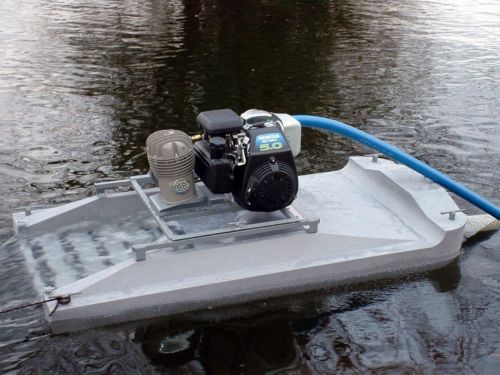

POLY DREDGE MICRO 4B Series 4" SUCTION DREDGE Ultra-portable one piece polyethylene flotation with molded-in recovery tray and hardware mounting lugs. Tough, impact-resistant laminar design will fit on a large pack frame for remote locations. Module dimensions are 61"L x 30"W x 9"D. The Micro 4 is outfitted with the following standard equipment: 5 or 6 hp. engine, DP 150 jetting pump w/cam-coupler, dual-jet top eductor with an auxiliary flusher water port, 15' of dredge hose, 30 degree suction nozzle, two-stage recovery with hungarian primary and dovetail finishing riffles. Also standard are 4-corner cleats and foot valve with strainer. Total weight without air - approximately 98 lbs. Weight with diver’s air system is approximately 116 lbs. Note: Our Divers Air system consists of the Dahlke 3.3 oil-less air compressor, compressor to tank air-whip, 20 feet of quality rubber hose specifically designed to be used with breathing air systems and an SAE standard air reserve tank rated to 150 psi. This air tank will hold approximately 28 cubic feet of compressed air at 90 psi. Lead time is approximately 3 weeks if you order a "BLACK" dredge body. Standard color currently in-stock is Haze Grey! Standard Outfitted Price - $3795.00 Price with Divers Air System - $4395.00 Note: Dahlke 3.3 Air Compressor is manufactured at our facility located just outside Houston Texas. The compressor bracket is cast from A356 Aluminum and then heat treated to a T-6 condition at a foundry located in Houston. We assemble the compressor with a 316 stainless steel main shaft, 3 sealed roller bearings, stainless steel valves and cast aluminum head. All fasteners are torqued to factory recommended specs. by our craftsmen. The Dahlke 3.3 Compressor is rated at 3.3 cubic feet per minute at 90 psi and is drilled and tapped to match a Gast 263 compressor mounting footprint. The mounting bracket footprint also includes two 3/8-16 drilled / tapped mounting holes to use a simple "squash-plate" style mounting system. High performance and simplicity when you need it most! This compact, single cylinder, oil-less divers air compressor smokes the competition! Trident Welding / Dahlke Dredge may, at its discretion substitute suction and intake / discharge hoses for the Micro 4B dredge based upon availability. All hose will be of "like" quality and will function as intended. We reserve the right to modify and upgrade our products as we see fit. If you have questions please don't hesitate to contact us before you purchase! All Sales are final. Thanks very much! NOTE: We do not offer the Thomas 80 Air compressor even though it is shown in the stock picture in this listing. We no longer use the "soda can" air reserve tanks shown in the attached listing pictures. We have changed styles as described above. CAUTION: Trident Welding LLC / Dahlke Dredge accepts no responsibility or liability for the use of this product by the purchaser. Dredging for gold can be dangerous and improper use of this equipment could result in injury and / or death. SAFETY FIRST!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	DAHLKE DREDGE
Country/Region of Manufacture	United States
Model	PolyDredge Micro 4B
