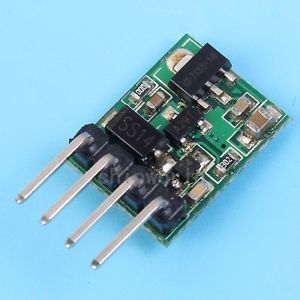

Dc 3-18v Single Key Bistable Switch Circuit Module For Relay Control

US $2800

shenzhen, China
Oct 29th

Open on mobile:
QR code

New Arrivals Modules Home Gadgets Fishing Outdoor Product Picture Gallery Power Module Wireless Modules Sensor DIY LED Board Development Board Function Modules Digital Voltmeter Description DC 3-18V Single Key Bistable Switch Circuit Module For Relay Control Product Introduction: 1.Power Votlage:DC 3V-18V 2.Static Current:2uA (power off);2mA (operating state) 3.Output:can drive wihin 1500mA ohmic load for a long time (short time can withstand 2500mA) 4.Applications:for self-locking switch transforming into micro switch,flashlight switch etc 5.Size:14*11mm (not include pin),pin space is 2.54mm Features: 1.Common Function:falling edge trigger.if output port Vo initial state is open circuit,it will trigger one time,Vo output port will become low level;if trigger again,Vo output port will become open circuit;then cycle 2.Anti-False Trigger Function:trigger signal will be effective after continuous time,time range is 1-7s adjustable (step distance is 1s) 3.After power on, output port initial state can be set as you like 4.Output port includes switch contact anti-shaking circuit 5.Output port has protection diode,can directly connect with inductive load Setting Method: 1,2,3 are used for setting trigger time;in all open circuit,module is in common function,has trigger signal No.1 bonding pad short circuit,only trigger circuit keeps 1s will be effective No.2 bonding pad short circuit,only trigger circuit keeps 2s will be effective No.3 bonding pad short circuit,only trigger circuit keeps 4s will be effective Above time can accumulate,the longest time can be 7s No.2 bonding pad is used to set output port initial state after module power on When open circuit,initial state output port is open circuit When short circuit,initial state output port is low level Pin Definition 1.VCC:power 2.Vo:output port 3.TG:trigger signal input port 4.GND:power ground Shippment Payment Return Policy Feedback About us We will arrange shipping for you within 24 Hours after payment cleared except the holidays. We only ship to the confirmed address provided by PayPal. Before you pay, please make sure your address in PayPal matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. -We ship items to Worldwide. Thank you! -we will ship out the order in 1-2 business days after payment cleared .Since it is international shipping ,delivery time is about 15--28 business days to arrive to most countries. We accept Paypal ONLY. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. * We believe our items are so outstanding. We are convinced you will be happy with your Purchase. * If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund to you after the returned item arrived at our warehouse. * Please include your eBay ID and item number with any email requests. * When you satisfied with our product and services please leave us positive feedback. * If you have got the package, please confirm "Delivery on time" For us. * If a problem occurs, contact us immediately with any email request. * Just contact us using the " Ask the seller a question" link on eBay. We mainly sell Modules, IC Acccesories, Home Gadgets, and outdoor products. Almost all products you need, You can get a best price once you send us the ebay message. For bulk order or wholesale, we promise to offer you a very competitive price! We welcome do more pleasant business with you. SKYPE: ada-yu2013 inkfrog terapeak inkFrog Analytics On Oct-28-16 at 10:02:07 PDT, seller added the following information:
