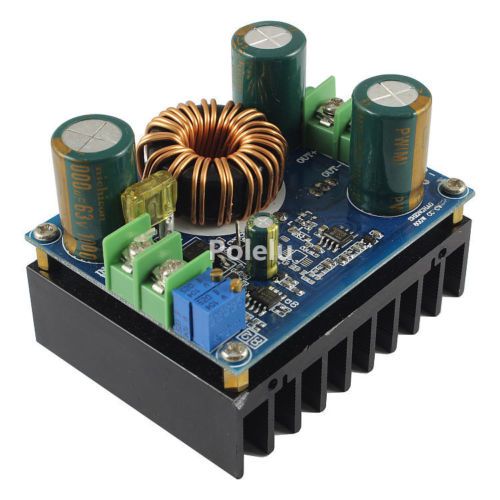

DC-DC 600W Boost Converter 12-60V/9-16V To 12-80V CC CV Voltage Step-up Module, US $19.99 – Picture 0

DC-DC 600W Boost Converter 12-60V/9-16V To 12-80V CC CV Voltage Step-up Module, US $19.99 – Picture 1

DC-DC 600W Boost Converter 12-60V/9-16V To 12-80V CC CV Voltage Step-up Module, US $19.99 – Picture 2

Dc-dc 600w Boost Converter 12-60v/9-16v To 12-80v Cc Cv Voltage Step-up Module

US $19.99

GuangZhou, China
Jun 9th

Open on mobile:
QR code

DC-DC 600W Boost Converter 12-60V/9-16V To 12-80V CC Step-up Power Supply Module Description Module Name: 600W high power boost constant current module Module Properties: non-isolated step-up module (BOOST) Input voltage:two input voltage ranges optional(select with jumper on board) 1)12-60V factory default input range (for wide input voltage range applications) 2)9-16V (for three strings and 12V lithium battery applications) in a state where this input, do not exceed the voltage input Input Current: 16A (MAX) more than 10A, please enhance heat dissipation Quiescent current: 15mA (12V step up to 20V, the higher output voltage the quiescent current will increase ) Output voltage: 12-80V continuously adjustable (the default output 19V) Output Current: 12A MAX (more than 10A, please enhance heat dissipation ) Constant current range: 0.1-12A Output power: = input voltage V * 10A Such as :input 12V * 10A = 120W, input 24V * 10A = 240W,input 36V * 10A = 360W Operating frequency: 150KHz Conversion efficiency: up to 95% Working ripple: approximately 100mV Load Regulation rate: about 0.2% Voltage regulation rate: about 2% Overcurrent protection: Yes (input exceeds 17A, automatically reduce the output voltage, it has a range of error.) Short circuit protection: Yes (with 20A fuse) double short circuit protection, the use of more security. Input reverse polarity protection: None (if necessary, please enter the string into the diode) Output Counter filling: Yes, for charging plus blocking diode is not required. Installation: (2) 3mm screws Connection: terminal,needen't solder Module size: 76 * 60 * 56mm (L * W * H) Applications: DIY is a regulated power supply,input 12V can be,output 12-80V adjustable. Power supply for your electronic device , according to your system set the output voltage value . As a vehicle power supply, power supply for your laptop/PDA etc. DIY is a laptop mobile power supply,, travel will no worry with 12V high capacity lithium battery?pack. Solar panels regulator. Charge for the battery. Drive high-power LED. Output current adjustment methods: 1.According to your battery or LED,adjust the CV potentiometer and the output voltage is set to your desired voltage value.Such as 10 series LED are set to 37V, 4 series batteries are set to 55V. 2.Counter clockwise CC potentiometer about 30 laps, the output current is set to the minimum, then connect LED,adjust the CC potentiometer to the desired current.For battery charging, after the battery is fully discharged, and then is connected with the output, adjust CC to your desired current. Please don't use way of short circuit to adjust current. Package included: 1 x DC/DC Boost Converter 600W CC Module Payment We only accept PayPal. Payment must be made within 7 calendar days of the auction end time. We reserve the right to cancel your order if the payment is not made within 7 calendar days of checkout. We will use your Ebay/Paypal shipping address as the delivery address. Please make sure to provide us with correct and detailed shipping address. To Russia, please the receiver name must write your full name as post office required. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Shipping Detail All the items to USA will ship via ePacket with tracking number. To UK and Australia the buyer can choose "Expedited Int'l Shipping", we also will ship via ePacket with tracking number, it is better than registered mail,usually delivery time is 7-20 business day. But to Australia ZIP code 2898/2899/6798/6799/7151 can NOT ship via ePacket. Other countries, total price below $30 we will ship your item without tracking number. Otherwise, if you need Registered Mail shipping, please add $2.5(Can choose "Standard Int'l Shipping",we will ship via registered mail). Usually all the items will be shipped via Hong Kong Post Airmail or China Post Airmail. If you need the other express way(EMS/DHL/FedEx/UPS),please contact with us for the correct price. Your order will be dispatched within 2 business days after the full payment is cleared. Airmail Packets' Delivery Time(reference only): USA,Australia,New Zealand,Southeast Asia, East Asia. 7-20 business days. Most European countries (France,Spain,Germany,UK,Sweden, Norway, Denmark,Netherlands,Austria,Portugal, Croatia, Finland, Switzerland, etc.) ,Canada,10-25 business days. Some remote city will take more than 25 business day. Italy,Russia, Brazil, Turkey, Ukraine, India, 14-35 business days, 90% take long time. Eastern Europe,West Asia,Central Asia, 15-30 business days,80% take long time. Africa,Chile,Argentina,Mexico,Other Countries. 15-40 business days,usually long time. Delivery time depends on postal process and other factors(Weather,Vacation,Customs,etc.),it can receive as fast as 7 days,but it can take as long as 4-7 weeks in some cases. If you do not get your item in reference delivery time, please contact us first through ebay message (Please do NOT open any case), we will reply you as soon as possible(within 24 business hours). Return Policy Please contact us before you leave Negative or Neutral Feedback if you are not satisfied with our products,we will resolve it asap. DOA(Dead On Arrival) or Wrong Item will be offered exchange. Refund will be offered if stock is not available Defective goods must be returned within 30 days after receiving it for exchange or refund. Buyer is responsible for return shipping cost in any situations. Contact us Please feel free to contact us from ebay if you have any questions , we will reply you within 48 hours except the weekends and public holidays. Please contact with us before you leaving Negative or Neutral feedback, and please DO NOT open any case, we will try my best to resolve your problems ASAP.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country of Manufacture	China
Output current	12A
Input voltage	12-60V/9-16V
Model	Voltage step up converter
Output voltage	12-80V
UPC	Does not apply
