Delta Ram Type Radial Drill Press 15-126, 15-126, 15-128 *1112

US $17.50

  • Goddard, Kansas, United States
  • Feb 17th
Open on mobile:
QR code

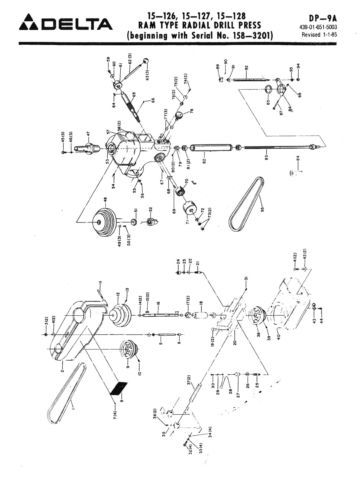

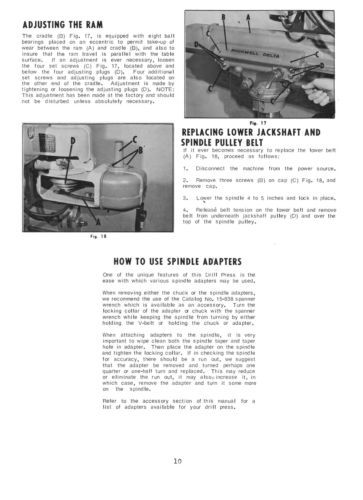

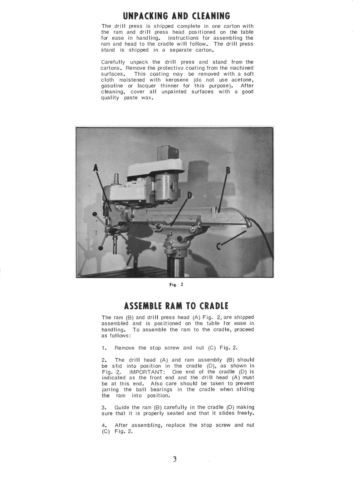

 Delta Ram Type Radial Drill Press    Instruction & Parts List Manual For models: 15-126, 15-127, & 15-128 Description: This is an Instruction and  Parts List manual for the Delta Ram Type Radial Drill Press.    It has sections on: Operating Controls and Adjustments, Motor and Spindle Speeds, Adjusting Belt Tension, Spindle and Quill Adjustments, Ram Adjustments, and others.  It has a parts list supplement No DP-9A dated January 1985.  It has 16 pages.  To inspect the quality of the manual,  and to view select pages,  please click on the gallery images above to enlarge. Includes sections on: Assembly Electrical Connections Motor and Spindle Speeds Changing Spindle Speeds Adjusting Belt Tension Spindle and Quill Adjustments Drilling Holes to Depth Adjusting Spindle Return Spring Operating the Ram Tilting the Head Replacing Lower Jackshaft & Spindle Pulley Belt Adjusting Spindle Return Spring Accessories Parts List Exploded Parts Views Number of pages: Approx 16 Condition of original:   Very Good Publication date: Jan, 1958 Publication No.: 439-01-651-5002 Added Notes:  Due to others making copies of these manuals for resale,                       I have lightly watermarked select pages to discourage this practice. About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Questions? Email: eugene@fabersurplus.com Phone: 316-210-4079 after 11:00 am Central Time Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. Sales tax charged for Kansas sales. See my for more manuals.  Be sure to add me to your favorites list!
“New Reproduction Manual”
Country/Region of Manufacture United States
