Sears Craftsman 12" Metal Lathe 101.07403, 101.27430, 101.27440 Parts List *1059

US $15.00

  • Goddard, Kansas, United States
  • Feb 17th
Open on mobile:
QR code

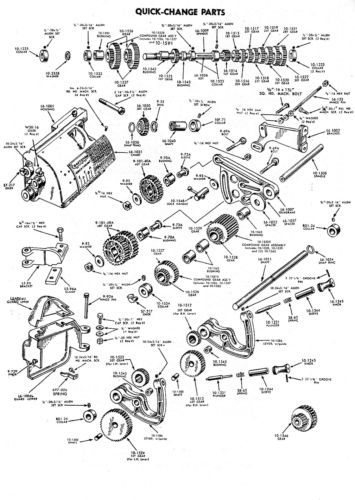

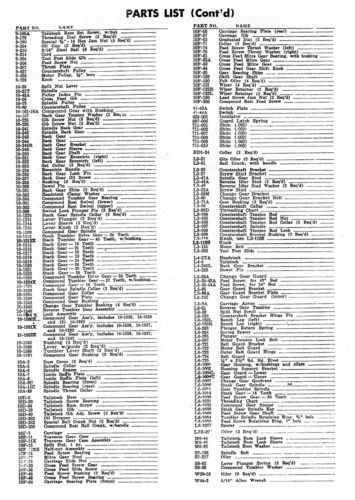

 Sears Craftsman 12" Metal Lathe   Lathe Parts List   For models: 101.07403, 101.27430 and 101.27440 Catalog Numbers: 2073, 2075, 2077, 2079, 2743, & 2744 Description: This is a  Parts List Manual for the Sears 12" Lathe P/N's 101.07403, 101.27430 and 101.27440.  This is the parts list only with exploded parts views.  It consists of 6 pages  To inspect the quality of the manual,  and to view select pages,  please click on the gallery images above to enlarge. Includes sections on: Exploded Parts Views Parts Lists Number of pages: Approx 6 Condition of original:   Very Good Publication date: N/A Publication No.: N/A Added Notes:   Due to others making copies of these manuals for resale, I have lightly watermarked select pages to discourage this practice. About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Questions? Email: eugene@fabersurplus.com Phone: 316-210-4079 after 11:00 am Central Time Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. Sales tax charged for Kansas sales. See my for more manuals.  Be sure to add me to your favorites list!
“New Reproduction Manual”
Country/Region of Manufacture United States
