Despatch Special Pbc2-32 5-drawer/door Oven 260°c

US $5,499.99

United States
Jan 30th

Open on mobile:
QR code

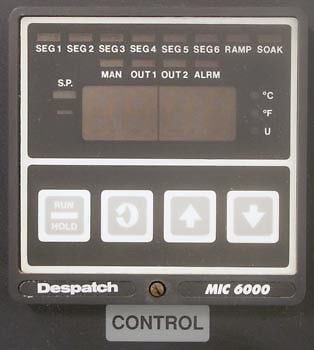

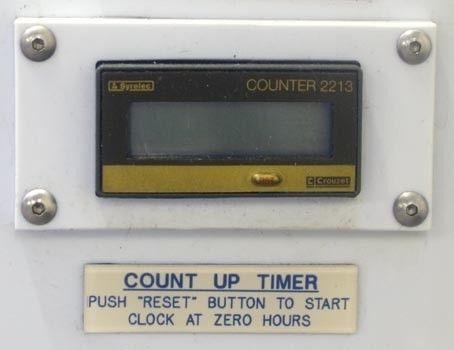

Despatch Special PBC2-32 Curing/Baking/Drying 5-Door Oven with Nitrogen Atmosphere Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Despatch and may vary slightly due to upgrades, options, or revisions this unit may or may not have. We have quantity available, only 1 is sold in the auction. The oven is guaranteed to work. List Price is: $30,600.00 Approx. NEW from Despatch The Unit's Serial Number Tag Reads: Model Number: Special PBC2-32 Serial Number: 151280 Maximum Temperature: 260°C Heating Capacity: 16 kW Atmosphere: N2 Total Amps: 55.62 Total Motor Amps: 9.2 Line Voltage: 208 V, 3-Phase, 60 Hz Control Voltage: 120 V, 1-Phase, 60 Hz The Temperature Controller's Serial Number Tag Reads: Model Number: MIC6000 Part Number: 6120001AJ Serial Number: C336023 The Timer's Are: Syrelec Crouzet Counters, Model 2213 Link to the Temperature Controller Manual: Despatch/Partlow MIC 6000 Temperature Controller Manual Shelve Specifications: Five levels, each 7.5"H (191mm) x 48"W (1,219mm) x 24.5"D (622mm) 3 Trays per Door that slide out, they are 14" x 17" Designed For: General heating, baking and drying. Maximum Oven Temperature: 392°F (200 °C) (The Unit's Design Tag Says 260°C). Dimensions: (Approximate) 67"W (1,702mm) x 36"D (914mm) x 94"H (2,388mm) Construction: Body - Oven is of fully reinforced double wall construction with 5" of Glasswool insulation in the front and door and 4" of Glasswool insulation in the remainder of the oven body. Five individual product levels provide batch separation. Front doors - The front of the oven is provided with five (5) independent doors at each product level. Doors swing down to open. Each door will have doors have two (2) paddle latches. Finish - The interior of the oven is aluminized steel with mild steel parts finished with aluminum rust resisting paint. The exterior is provided with contemporary light gray with coordinating dark gray door baked enamel finish. Heating System: An electric heating system with 16 kW ratings is provided. Heating system consists of 3-phase balanced Despatch low gradient heating elements mounted in an insulated heater chamber. Heating elements are in a framework removable from the heater chamber. Temperature Controls: A Partlow MIC6000 Digital Controller with 6 Segments; Ramp + Soak The microprocessor based single loop controller is capable of measuring, displaying and controlling temperature flow and level from a variety of inputs. The controller is easy to use. Control functions, alarm settings and other parameters are easily entered through the front keypad. All user's data can be protected from unauthorized changes with its ENABLE mode security system. Battery back-up protects against data loss during AC power outages. In this application the controller has been factory configured to control temperature and humidity conditions in your Despatch chamber. Under normal conditions, you should not have to reprogram this controller. Air Circulation: Fan and Motor - A Despatch multi-blade steel fan rated at 2,600 CFM (on 60 hertz power) is provided and is dynamically and statically balanced. Fan is directly driven by a standard open, 1,750 RPM motor and is complete with motor starter and airflow switch. Air Supply Plenum - Is constructed of painted aluminized steel and is located along one side wall of the oven to provide uniform horizontal flow. This plenum is furnished with perforated openings covering the full depth and height of the oven. Perforated material is mild steel finished with high temperature aluminum paint. High capacity fan and unique duct arrangements are assure uniform air distribution and eliminate air stratification. Complete premixing of recirculated, reheated and incoming air assures uniform temperature throughout the oven working chambers. Recirculating Plenum - Is located on opposite side wall and shall be of similar construction as supply duct. Monitoring and Safety Equipment: Hi-Limit - A hi-limit instrument complete with thermocouple is provided. In the event the hi-limit setting is exceeded, the instrument will shut off power to the heating system, and sound alarm horn. It must be manually reset to re-establish power in the event its temperature setting is exceeded. Automatic restart feature is provided so cycle can continue in event of a power failure. Back-Up Contactors - Are provided and controlled by the hi-limit for positive shut down of the electric heater in the event of solid state heater control (SRC) failure or controller failure. Alarm Horn - Is provided and activated by the hi-limit should its setting be exceeded. It is silenced by resetting the hilimit. In addition, door proximity switches trigger audible alarm and individual door light if door is not fully closed. Emergency Stop Button: Located on control panel. Atmosphere Control on PBC Ovens: Flow control valve and gauge for Purge, Range 50-500 SCFH Flow control valve and gauge for Maintain, Range 20-200 SCFH Two 3/8" Solenoid valve Relief valve Gauges are mounted on the front of the oven within easy view of the operator. An atmosphere inlet connection and outlet is provided. For More Pictures Please Click the Following: Picture 2 - Door Open Picture 3 - Door Open, Trays Pulled Out Picture 4 - Nitrogen Controls Picture 5 - Timer & Alarm Controls Picture 6 - Purge & Power Indicators and Controls Picture 7 - Temperature Controller Picture 8 - Chart Recorder Picture 9 - Timer Picture 10 - Chart Recorder Serial Number Tag $350.00 minimum for packaging, handling, and order processing. Shipping to be determined by destination. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 09/09/06 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. On Oct-31-13 at 21:12:41 PDT, seller added the following information: Click Here. Double your traffic. Get Vendio Gallery - Now FREE!

Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...

Brand

Despatch
