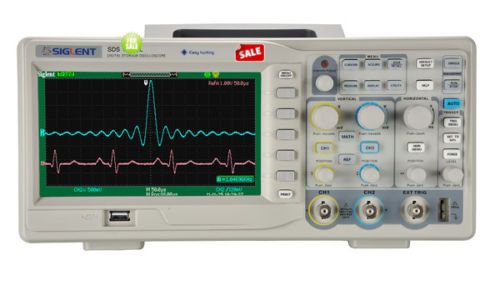

Digital 200MHz Oscilloscope 2Channels 500MSa/s USB 7''TFT LCD 100-240V SDS1202DL, US $415.00 – Picture 0

Digital 200MHz Oscilloscope 2Channels 500MSa/s USB 7''TFT LCD 100-240V SDS1202DL, US $415.00 – Picture 1

Digital 200mhz Oscilloscope 2channels 500msa/s Usb 7''tft Lcd 100-240v Sds1202dl

US $415.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Featues and specifications: Bandwidth: 200MHz Channels: 2 Sampling rate: 500MHz Sa/s for 1 channel; 250MHz for 2 channels Equivalent Sampling rate: 50GSa/s Memory depth: 32K/CH Rise time: <1.8ns Input impedance: 1M?//17pF Sec/div range: 2.5ns/div-50s/div,Scan:100ms-50s/div Display: Color TFT 7'' LCD Display 12 divides full screen display Channels 2 Vertical Sensitivity 2mv-5v/div(1-2-5 Sequence) Vertical Resolution 8bit Input coupling DC, AC, GND Input Max voltage 400V(Vpp) Trigger Types Edge, Pulse, Video, Slope, Alternative, Delay Trigger Modes Auto, Normal, Single Trigger Source CH1, CH2, Ext, Ext/5, AC Line Save/Recall Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function Auto Measure Types Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF Cursor measure Manual, Track, Auto Sample Types Real Time, Equivalent Time Averages 4, 16, 32, 64, 128, 256 Math +, -, *, /, Invert FFT Window: Hanning, Hamming, Blackman?Rectangular Sampling Points: 1024 points XY Mode Phase Error: ±3 degrees Support the sampling rate : 5KSa/s~200MSa/s (in a 1-2-5 sequence) Persist Off, 1sec, 2sec, 5sec, Infinite Display Model Main, Window, Window Zoom, Roll, X-Y Menu Display 2Sec, 5Sec, 10Sec, 20Sec, Infinite Skin Classical, Modern, Tradition, Succinct Display Language Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean Power Source Voltage 100-240VAC?47HZ-440HZ?50VA Max Size and Weight 305mm x 154mm x133mm, about2.3kg USB Host Support USB flash drive storage Accessories: (1:1, 10:1) Probe x 2, EasyScope Computer Software, Power Cord, User Manual. Note: we'll ship this item via express mail service to USA, Canada, Australia, New Zealand, Ireland, Austria, Belgium, Denmark, Germany, France, Finland, Luxemburg, Malta, Norway, Spain, Italy, Sweden, Swiss, UK, Japan, Korea,Thailand, Malaysia, Indonesia, Philippine, Singapore. Clients from other countries pls contact with us in advance to confirm the different shipping charges before you bid.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	SDS1202DL
Channels	2
MPN	SDS1202DL
Sample Rate	500MSa/s - 999MSa/s
Type	Digital
Number of Channels	2
Bandwidth	100MHz - 349MHz
Country of Manufacture	China
