Din Rail Mount 8 Spdt Power Relay Interface Module, Omron 10a Relay, 5v Coil.

US $220

  • Hong Kong, Hong Kong
  • Jan 29th
Open on mobile:
QR code

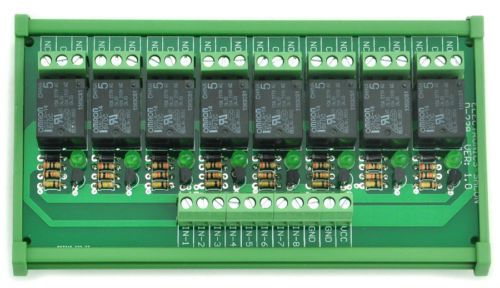

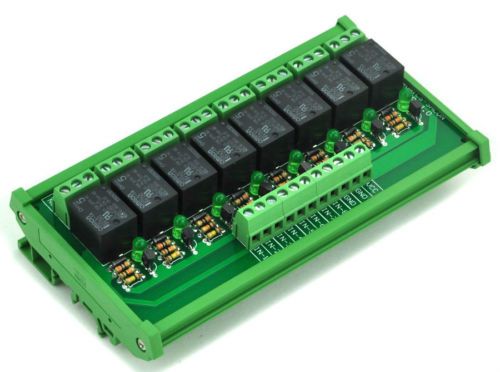

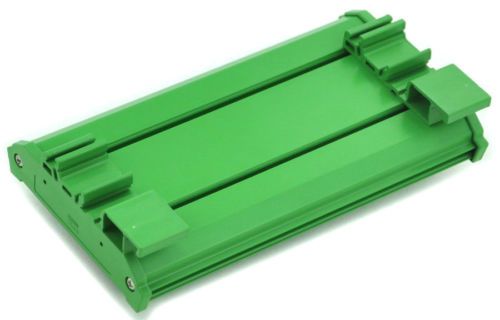

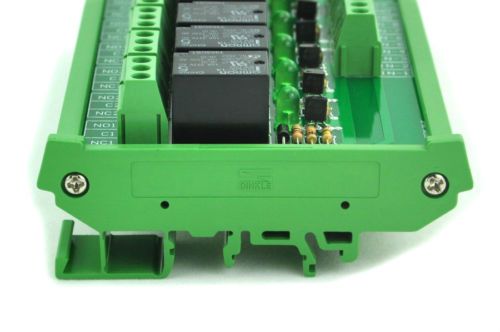

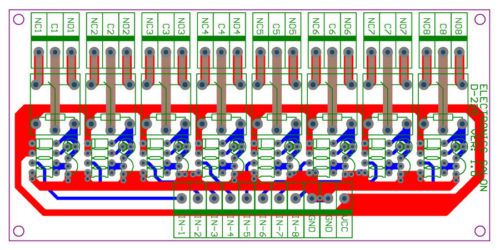

Description 1 Piece Din Rail Mount 8 SPDT Power Relay Interface Module. 5V Version, OMRON G5LA-14  5V Power Relays. LED indicator for each relay channel. Screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. High quality PCB carrier. FR-4 fiber glass PCB. External dimensions: 153 x 87 x 42mm(L x W x H). PCB dimensions: 150 x 72 ( L x W ). 100% new, never used. Operating Voltage/Current(max.): 5Vdc / 720mA (relay all action). Input control signal voltage:                      0V - 0.5Vdc, low level, relay not action.                      0.5V - 2.5Vdc, unknown state.                      2.5V - 24Vdc, high level, relay action. Input control signal high level current:                      2.5V: 0.1mA.                      5V: 0.35mA.                      12V: 1.1mA.                      20V: 1.9mA. Relay Spec:            Manufacturer: OMRON            Type: G5LA-14  5V DC.            Contact Rating: 277 VAC / 10 Amp or 30 VDC/10 Amp.            Datasheet: Click here. This is a very simple module board, no paper specifications, any questions, feel free to tell me. Wire connection and PCB size:          VCC: Power supply input, 5V DC.         GND: Power supply ground and control signal ground.         IN-X: Control signal input, Low: relay not action, High: relay action.         COM / NO / NC:                 Control signal state low, the relay OFF, COM - NO disconnected,  COM - NC connected.                 Control signal stage high, the relay ON, COM - NO connected, COM  - NC disconnected. Engineered for professional eBay sellers!
