Din Rail Mount Fused 4 Dpdt 5a Power Relay Interface Module, G2r-2 24v Dc Relay

US $200

  • Hong Kong, Hong Kong
  • Jan 29th
Open on mobile:
QR code

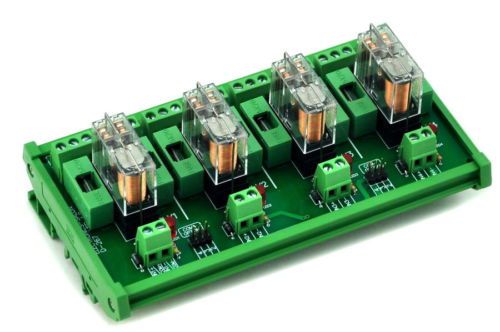

Description DIN Rail Mount Fused 4 DPDT Power Relay Interface Module for Industrial Suitability. 24V Version, OMRON G2R-2 24VDC industrial power relays. Switching current up to 5A at 250VAC (or 30VDC). Easy to replace pluggable relays. Jumper cap options for relays in common negative or common positive configurations. With fuse for each switch common terminal, fuse holder easy to replace fuse, default fuses slow blow type 250V 6.3 AMP. LED indicator for each relay. Relay coil protection by means of a freewheeling diode. Screw terminal block. High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails. DIN mount case can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers. External dimensions: 153 x 87 x 63mm (L x W x H). PCB dimensions: 150 x 72.5mm (L x W). 100% new, never used. Relay action:                      Voltage: 17.5 ~ 36VDC (recommended 24VDC).                      Current: 26.5mA (one relay, at 24VDC). Relay switch contact:                      Rated resistive load: 5A/250VAC or 5A/30VDC.                      Rated inductive load: 2A/250VAC or 3A/30VDC. Relay datasheet: Click here. Terminal block specifications:                      Wire range: 24 ~ 12 AWG.                      Strip length: 7mm.                      Screws - M2.5, steel, Cr3+ Zn plated.                      Pin header and Cage - Brass. Wire connection:                       INx+: Relay operating voltage positive.                      INx-: Relay operating voltage negative.                      COM / NO / NC:                      When relay not-action, COM - NO disconnected,  COM - NC connected.                      When relay action, COM - NO connected, COM  - NC disconnected. This is a very simple module, no paper specifications, any questions please feel free to contact me. Schematic Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. Engineered for professional eBay sellers!
