Diy Leroy Somer Dc Permanent Magnet 250 Watts Worm Gearbox Motor And Brake

US $89.99

Montmagny, Quebec, Canada
May 9th

Open on mobile:
QR code

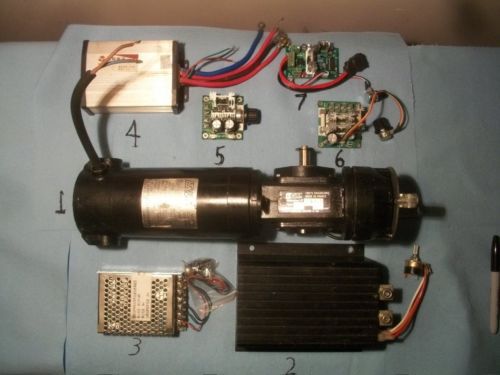

Version Francaise au bas. Hi You are bidding on one used bidirectional gearmotor similare to picture # 2 , MVA gear box 10 to 1 and FMC magnetic brake 2.5 Nm in good working condition. Motor is a 861L Leroy Somer permanent magnet brushed motor. 1/3 electric horsepower 250 watts 861L Motor speed 24 vdc, 2000 RPM, MVA Gear box output shaft 24 vdc 200 rpm Protection agains dust and splash: IP55 For hoobyist project it can be used with all the illustrated dc controller you can see in the picture 4. It is a very efficiency and one of the quietest motor on the market. I use 2 off these motor on the model 68 electric variable speed John Deere riding mower you see in the first picture. Pictures1, 3-4-5 and 6 are for illustration only and any components in those pictures are not inluded in that listing. Here is the riding mower ''picture 1'' description: The MVA gear motor 861l with FMC brake is used with the 40 amps 36 vdc controller # 4 you see in the last picture for traction drive. 1 same motor without gearbox is used for cutting. I used that configuration for more than 6 years now and it works very well. Here some spec for that 36 volts dc riding mower project. - Variable speed 0-5 kilometer - 30 inches 1 blade mower deck. Cutting time, average 3/4 to 1 hour with 3 X 12 vdc =36 volts dc. When used as a tractor only, time varies from load condition, up to more than one day, the PWM controller make the unit very efficiency, it only used the needed power, almost no wasted heat. See last pictures for traction demonstration power. That kind of motor can easily support up to intermitent 2 hp, but keep in mind it is less than 1/2 hp range Used it for DIY project, robot, rc , concrete mixer, replace outboard gaz motor, pottery wheel, lathe, Wind generator, waterwheel, variable speed project wheel motor from 12 and up to 36 volts, offgrid hydro power. It is good choice to make free electricity or use it with a micro hydro pelton Wheel. Motor can be driven in both forward and reverse at variable speed. Motor does produce power when shaft is rotated externally and can also be used in Wind generator or hydro turbine power project The second picture show the motor assembly with gear box and magnetic brake. It show what you will received. Worldwide- Buyer pays actual shipping costs. Ship worldwide International customers: Please email or message us to receive a proper shipping quote. Please, include your full shipping address. Custom fee and taxe if applicable are buyer responsability Feel free to ask any question about this item. You might be interesting in my other listing, same motor type with a final reduction drive and strong hub. Bid with confidence Bonjour Vous misez sur l'achat d'un moteur usage similaire a la photo # 2 a balai (brush type) et a aimant permanent model 861L 1/3 de force 24 volt cc, 250 watts 2000 RPM avec protection IP 55 assemble avec une boite engrenage a reduction type MVA Leroy Somer de 10:1 et frein magnetique FMC 2.5 Nm . Il est bidirectionel. Il peu etre utilise avec une multitude de controleurs de type pulse wave modulation (PWM) comme ceux illustres sur la quatrieme photo pour obtenir une vitesse variable. Ce robuste moteur de tres haute efficacite est un des plus silencieux sur le marche. Il est en tres bonne condition et garanti de remplacement 1 mois a partir de la date de reception. Transport aux frais de l'acheteur. J'utilise 2 de ces moteurs sur une tondeuse a siege de marque John Deere model 68 converti a l'electricite depuis plus de 6 ans. Economique , robuste, silencieuse et puissante en font un outil (plug and play) futuriste minimisant les gaz a effet de serre tout en recuperant d'excellentes composantes destinees prematurement a la ferraille. Voir la premiere photo illustrant le montage. Il me fera plaisir de conseiller l'acheteur sur les composantes necessaires si un tel projet vous interesse. Photo 1- 3- 4-5 et 6 pour illustration seulement. Voici quelque specification sur cette tondeuse: Vitesse variable 0-5 kilometres heure, meme vitesse pour la tonte, dependant toutefois de la densite du gazon, du denivellement et surtout de l'affutage du couteau. - Duree d'une tonte entre 3/4 et 1 heure avec 3 vielles batteries 12 volts recupere de camion. - Plus d'une journee d'autonomie en utilisation intermittent tracteur, encore la tout depend de la charge a tire. Le controleur de type PWM utilise seulement la puissance necessaire et minimise les pertes d'energie en chaleur. Le controleur # 4 de la quatrieme photo est celui utilise dans cette application 36vdc 40 amperes il permet des pointes d'energie intermittente de l'ordre de 2hp. Cette annonce inclus le moteur assemble avec engrenage a reduction de type MVA et frein magnetique FMC 2.5 Nm tel qu'illustre dans la deuxieme photo. Cette unite peu etre utile pour bricoleur, fabrication de robot, mixer a ciment, rotisserie, tour a poterie, tour a metal projet motorisee a vitesse variable, remorque, brouette, petit vehicule electrique, eolienne, mini turbine pour produire de l'electricite. Acheteur International paie les frais de livraison actuel, SVP demandez les frais de poste avant de miser. Envoie International, les frais de douane courtage et taxe si applicable sont aux frais de l'acheteur. Aucune taxe pour les residents Canadiens Il me fera plaisir de repondre a vos interrogations sur cet article. Miser en confiance

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“May have little scratch, peu avoir quelques grafigne.”
