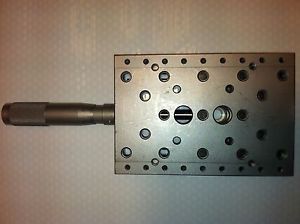

Double-Row Ball Bearing Linear Stage UMR8.51, US $1100 – Picture 1

Double-row Ball Bearing Linear Stage Umr8.51

US $1100

Cranston, Rhode Island, United States
Nov 3rd

Open on mobile:
QR code

The UMR8.51 Precision Double-Row Ball Bearing Linear Stage features steel construction for high stability and rigidity. The ball bearings and precision-ground bearing surfaces provide exceptional linear travel, with angular deviation better than 100-200 µrad. UMR8 Series Stages have double-row ball bearings making them an excellent choice for carrying high loads up to 202 lb. The moving carriage is preloaded by two springs to ensure constant micrometer contact for smooth, backlash-free motion over a 2.01 inch travel range. Multiple drive options cover the range of precision positioning. Standard BM Series Micrometers provide 1 µm sensitivity, while DM Series Differential Micrometers offer 0.1 µm. For coarse motion with position locking, a fixed positioning kit replaces the micrometer with two opposing adjustment screws and lock nuts. An optional carriage locking kit includes a screw that mounts in the stage body opposite the micrometer. Motorized actuators can be added for precision motion control. Generous hole patterns allow great flexibility in component placement on the stage mounting surface. Two stages can be easily stacked in an XY configuration and mounted to a table or breadboard. Multi-axis stage configurations are easily assembled using EQ Series Angle Brackets. UMR Stages are compatible with UTR and URM Rotation Stages, BGM Goniometers, and SL Series Mirror Mounts. Axes of Travel X Maximum Stage Travel 50 mm Thread Type 8-32 and 1/4-20 Recommended Actuators LTA-HL or BM17.51 Load Capacity 900 N Angular Deviation <200 µrad Inverse Axial Load Capacity 1.3 kg Material Steel Bearings Double-Row Ball Bearings Bearing Constant 40 mm Drive Location Center drive Drive Torque 0.07 Nm Centered Load Capacity with BM Micrometer 100 N Vertical Load Capacity 100 N Compliance in Roll 0.05 mrad/Nm Compliance in Pitch 0.05 mrad/Nm Compliance in Yaw 0.05 mrad/Nm I have two of these items. Let me know if you're interested in the second one.
