Dso Quad - Aluminium Alloy Black

US $259.00

  • fuzhou, ???, China
  • Jun 9th
Open on mobile:
QR code

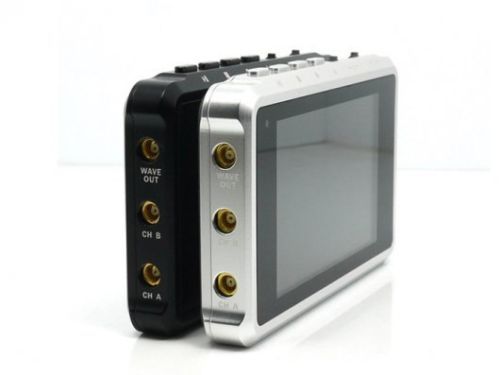

Silver is available DSO Quad - Aluminum Alloy Silver    DSO Quad – Aluminum Alloy now is available at Seeed Studio. A new, rigid, elegant aluminum alloy shell makes the Quad even better. This is the coolest tool you should have on your worktable!     DSO Quad is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32F103VCT6) 32 bits platform, providing 72MS/s sampling rate with integrated FPGA and high speed ADC. Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.    Note: Due to the metal conductive shell of DSO Quad, its operating voltage should be controlled under 60V during working in case of any damage to the Quad itself or human.   Feature Pocket size and light weight Two 72MS/s analog channels, plus two digital channels Signal Generator  Auto Measurement Various Triggering Option Easy waveform storage Firmware upgrade User applications Open source  Specifications Analog channel * 2 : [CH_A]  [CH_B]; Digital channel * 2 :   [CH_C]  [CH_D]; Vertical Scale: 20mV-10V/div (x1 probe); Vertical solution: 8 bit ; Input coupling: AC/DC ;  Max input voltage: 80Vpp (x1 probe); Storage: 4K per channel Software trigger type: edge, pulse, level (to be added) Hardware trigger type: edge Trigger source: CH1/CH2/EXT Test Signal generator: 10Hz to 1Mhz  Storage: internal 2MB USB disk Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty Cursor measurement: Level, Voltage Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2 Sampling mode: real time Sampling rate: 1kSa/s - 72MSa/S Power: Lipo battery Dimension: 98 * 60 * 14.5 Weight: 80g (without battery) Accessories within Pack: 2 mueller mcx oscilloscope probe, 2 digital probe,  Pack list DSO Quad X1 Battery X1 Mueller mcx oscilloscope probe X2 Digital probe X2 Screwdriver X1
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand SEED
MPN 109990015
Model SEED
Country/Region of Manufacture China
UPC 712104352045
