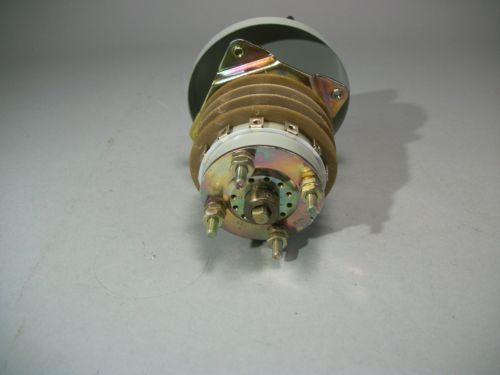

Electro Switch 46504G Rotary, US $223.88 – Picture 0

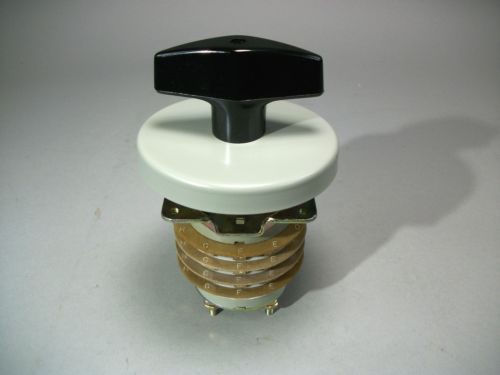

Electro Switch 46504G Rotary, US $223.88 – Picture 1

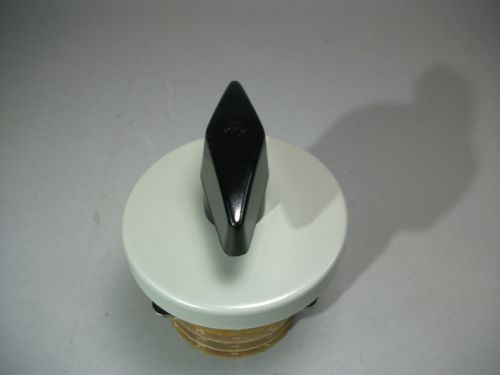

Electro Switch 46504G Rotary, US $223.88 – Picture 2

Electro Switch 46504G Rotary, US $223.88 – Picture 3

Electro Switch 46504g Rotary

US $223.88

Riceville, Tennessee, United States
Jan 29th

Open on mobile:
QR code

Electro Switch 46504G Rotary Electro Switch 46504G Rotary New Manufacturer: Electro Switch P/N: 46504G NSN: 5930-01-033-9676 Rotary CONTACT LOAD CURRENT RATING 7.5 AMPERES RESISTIVE LOAD AC AT SEA LEVEL CONTACT SWITCHING ACTION BREAKS BEFORE MAKES EACH SECTION REAR CONTACT VOLTAGE RATING IN VOLTS 125.0 AC AT SEA LEVEL FEATURES PROVIDED ACTUATOR KNOB HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION DUSTPROOF MOUNTING FACILITY PATTERN FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY MOUNTING METHOD THREADED HOLE SINGLE MOUNTING FACILITY NOMINAL THREAD SIZE 0.190 INCHES SINGLE MOUNTING FACILITY OVERALL HEIGHT 2.813 INCHES NOMINAL OVERALL LENGTH 6.032 INCHES NOMINAL OVERALL WIDTH 2.813 INCHES NOMINAL INDIVIDUAL SECTION QUANTITY 4 KNOB MANUFACTURER CODE 82121 KNOB MANUFACTURER PART NUMBER A LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS 2.203 INCHES NOMINAL SINGLE MOUNTING FACILITY LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS 2.203 INCHES NOMINAL SINGLE MOUNTING FACILITY ROTOR THROUGH CONNECTION QUANTITY 1 EACH SECTION SHAFT LENGTH 2.388 INCHES NOMINAL SINGLE ACTUATOR SHAFT TYPE RECTANGULAR/SQUARE, THREADED HOLE SINGLE ACTUATOR POLE QUANTITY 1 EACH SECTION FRONT SPECIAL FEATURES INCLUDES ESCUTCHEON PLATE SQUARE SHAFT SIZE 0.250 INCHES NOMINAL SINGLE ACTUATOR STYLE DESIGNATOR TAP, CIRCUIT SELECTOR SWITCH ACTUATOR INDEXING POSITION QUANTITY 12 SINGLE ACTUATOR SWITCH ACTUATOR POSITIONING INCREMENT 30.0 DEGREES SINGLE ACTUATOR SWITCH CONTACT BASIC DESIGN NONPILE-UP SYMMETRICAL TERMINAL TYPE TAB W/SCREW THREAD CLASS 2B SINGLE MOUNTING FACILITY THREAD QUANTITY PER INCH 24 SINGLE MOUNTING FACILITY THREAD SERIES DESIGNATOR UNC SINGLE MOUNTING FACILITY THROW QUANTITY 12 EACH SECTION REAR Please take a look at all of the provided photos before placing your bid to thoroughly inspect the lot contents and condition. Item Condition: New Return Policy: We are offering the buyer a TWO WEEK (14 day) right of return for testing and inspection. Buyer will be responsible for the cost of return shipping. Shipping Info: Shipping weight is 4 lbs., shipped from Riceville, TN (zip 37370). Default Shipping Service: UPS Ground Tennessee residents will be charged 9.00% sales tax. California residents will be charged 9.00% sales tax. (We have offices in both Tennessee & California and are required to charge tax to any shipment sent anywhere in ether state.) We accept the following methods of payment: (Call 1.423.746.2846 to pay via. credit card over the phone. ) For foreign orders we accept PayPal. We reserve the right to refuse other payment types at our discretion. We make our decision on a case by case basis, due to previous problems with some foreign credit cards. After your item has shipped, we will email you the tracking info. Listed for JP by LB - Located at: WB1002 WS Q-(46504G)
