Elimia Pump Motor Starter W/ Disconnect 240v Coil 23-32 Amp 10 Hp Waterproof

US $290

Attalla, Alabama, United States
Jan 29th

Open on mobile:
QR code

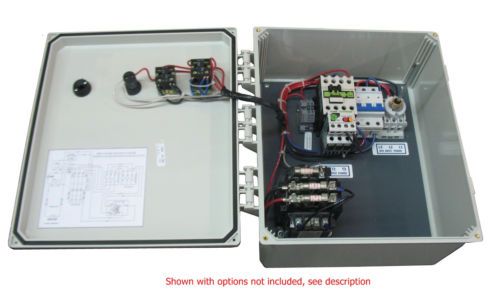

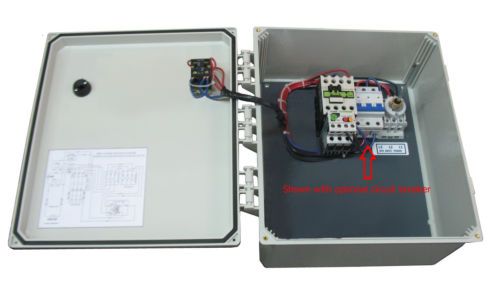

Please call us if you have any questions. We want you to get the right equipment - 1-855-4Elimia. This is for a new enclosed magnetic motor starter with disconnect designed to start, stop and protect machines. Designed with momentary type switches and pre-wired latch that breaks circuit during overload or loss of main power. Also includes NEMA 4X rotary motor disconnect. This assembly is configured to meet the requirements of NEC for pump motors. Disconnect can be locked out and tagged out. Pre-wired for easy installation. This starter includes a combination start/stop/LED indicator switch, industrial grade and steel bezel. Modular design allows for additional contact blocks to be added. Comes with 1 NO and 1 NC contacts. Included: -Motor Starter 23-32 Amp with size 40 contactor -Rotary disconnect switch, sized based on load (will be 40/60/80/100) -Start/stop/indicator switch -Pre-wired, you only provide line and load - everything else is already there. -Completely assembled in NEMA 4X Polycarbonate enclosure with hinged door. If your pump application using a pressure switch or other external control, you will need a different type of switch. Please call. The unit will arrive completely assembled in a real nice Nema 4X hinged door enclosure. Mounting feet are now included and shipped loose with assembly. Mounting feet allow for installation without effecting water proof integrity. Our motor starters use UL certified IEC type components. Our disconnects are UL approved and rated appropriately for each assembly. IEC type motor starters are made up of primarily two parts. A contactor and overload device. Both devices have maximum ratings and the overload has maximum and minimum ratings. You should choose a motor starter that fits both criteria. If you need help please email or call, we will be glad to assist. This assembly is sized specifically for 10 HP, 230V, 3 Phase applications. Your motor FLA rating should fall between 23 - 32 Amps. MAX Ratings of contactor used in this starter, do not exceed ratings: Size 40 1 phase- 7.5 HP @ 240 VAC Max FLA 40 Amps 3 phase- 15 HP @ 200 VAC Max FLA 48 Amps 3 phase- 20 HP @ 240 VAC Max FLA 54 Amps 3 phase- 30 HP @ 460 VAC Max FLA 34 Amps 3 phase- 30 HP @ 600 VAC Max FLA 27 Amps Control voltage is 240 VAC and is pre-wired. (Note: the power source for the control wiring of this starter is pre-wired and sourced from your feeder wiring directly on the line side of the starter. You will not need to pull in a separate power source for the controls). The control voltage is the voltage used to activate the coil of the contactor. In the simplest install you will want a coil voltage the same as your power supply. But is some cases you might want the control voltage to be different for a host of reasons. All components used in our assemblies are UL Certified. The overload will have an adjustable Amperage range. Your overload choice is based on your machines FLA. If your machine motor has a FLA of 10 Amps at your supply voltage then you should choose the overload where 10 Amp falls within the adjustable range. For a 10 Amp FLA we would recommend overload 9 - 13 Amps. Our overloads can be set for manual or automatic reset operation. The overload control is pre-wired by Elimia in a way that trips the starter. This is done to protect your equipment and is one of the main purposes of a motor starter. Our standard overload is thermal type class 10A. Please see link below for an informational video of features. http://www.chint.net/product/case.php?l=en&tq=0.2.11.1954.1956. Components mounted on a easy to remove back plate. This assembly comes with a premium enclosure with hinge door. Enclosure is NEMA 4X (also rated Nema 1, 2, 3R, 4, 5, 12, 13, 6, 6p) made in USA by Enclosure Solutions. Provides protection from water/dust/oil. UL listed to 600V. This enclosure does not provide knockouts for wiring. Enclosure size is 12x10x6 inches We can build any panel to your specs and a very reasonable price and turn-around. 90 day replacement Elimia warranty. Great price! We have pre-wired DOL motor starters available from 0 HP to 200 HP. Please call 1-855-4Elimia for more info or if we can help sizing a starter. Elimia has assembled and supplied thousands of starters to customers all over the world. In addition to our standard products we design and built custom control panels and packaged drives. Our customers come back again and again for the value products we offer. Please note: We stock an extensive inventory of contactors, overloads, enclosures, switches etc... We do not stock preassembled units due to the massive possible combination of products. All motor starters and assemblies are built to order. Lead time may vary from same day to three days. If you need something expedited please call us and we will let you know if we can accommodate. Guarantee: Satisfaction Guaranteed! If you are not happy with your purchase within two weeks of arrival you can return it. No restocking fee! Offer excludes shipping and eBay fees. If the item has been installed and it turns out not be what you needed please call us. We will work with each customer and try to reach a resolution. Buyers: Potential buyers registered outside the USA must get approval before bidding UNLESS the listing indicates them as a ship to location. Most small items are now available for Worldwide shipping. There is no charge for on-sight pickup but 5% tax applies. Please note: All items should be professionally inspected and tested prior to installation or use. We are not liable for damages, injuries or death relating to our products. Payments: We accept Paypal and Credit Card payments. Credit card payments are only accepted over the phone. We reserve the right to refuse payment from buyers registered in foreign countries or locations with non corresponding ship to addresses. Additionally, we reserve the right to refuse payment from any buyer which will feel is acting in a possible malicious manner. Feedback: Once you are satisfied with your purchase please leave us feedback. If you have any problem with the transaction or product, please contact us. PSS-23-32-240 Nema 4X Size 40 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Elimia
Country of Manufacture	United States
